DVD Player: Diagrams




Component Connector End Views

Digital Video Disc (DVD) Control Module X1 (SPO Accessory)

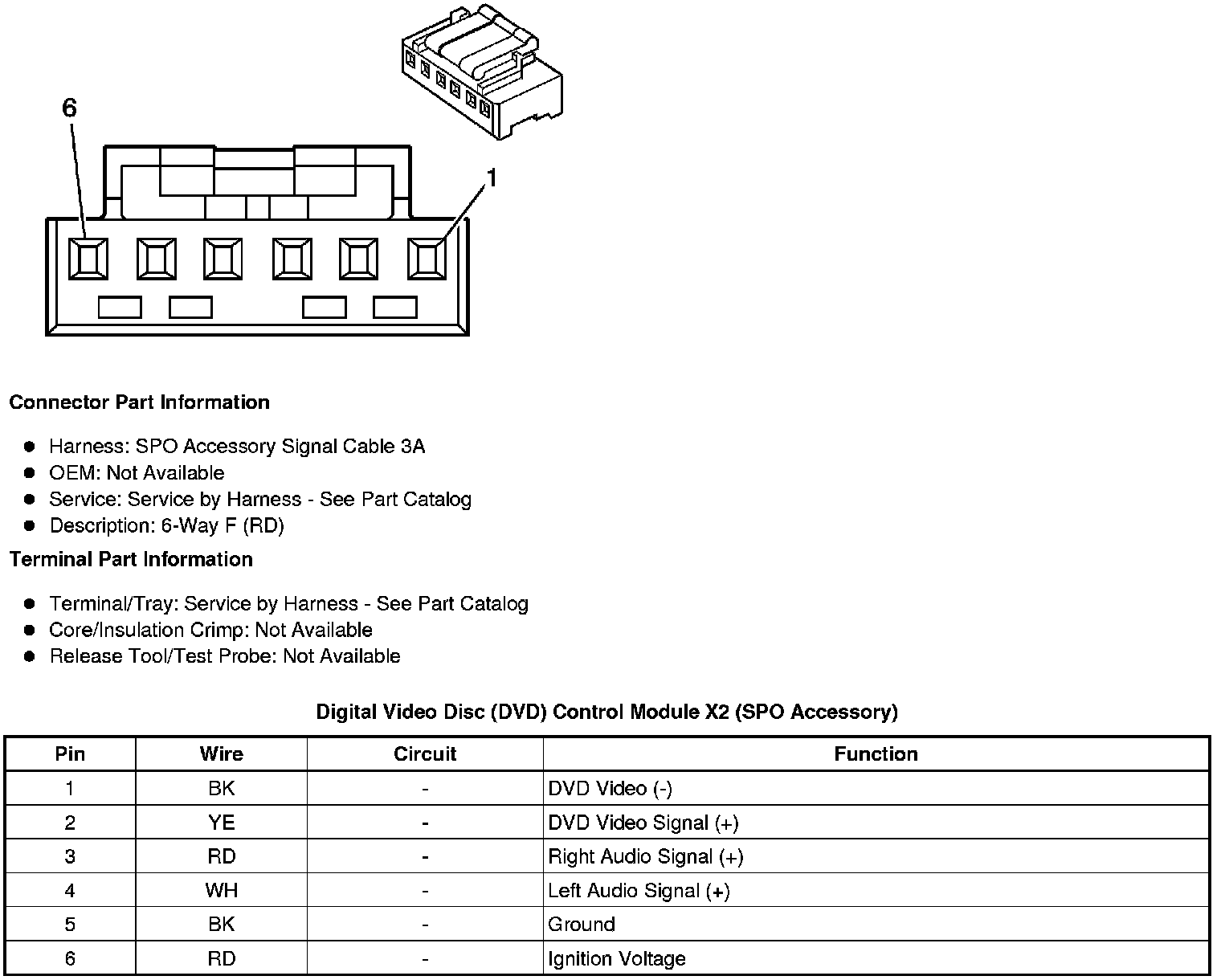

Digital Video Disc (DVD) Control Module X2 (SPO Accessory)

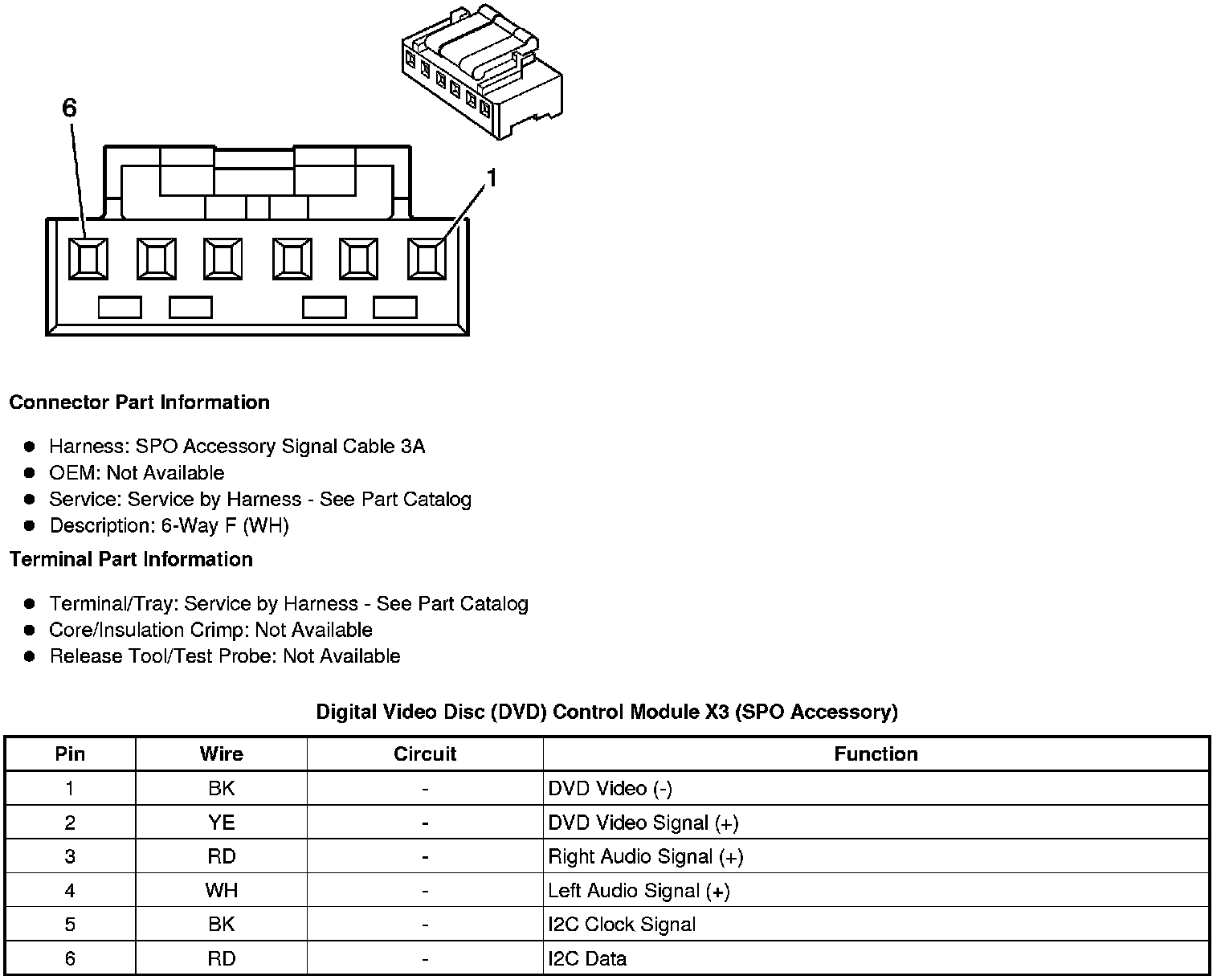

Digital Video Disc (DVD) Control Module X3 (SPO Accessory)






Digital Video Disc (DVD) Control Module X4 (SPO Accessory)






Digital Video Disc (DVD) Control Module X5 (SPO Accessory)






Digital Video Disc (DVD) Control Module X6 (SPO Accessory)






Digital Video Disc (DVD) Display - Driver Seat Headrest X1 (SPO Accessory)






Digital Video Disc (DVD) Display - Driver Seat Headrest X2 (SPO Accessory)






Digital Video Disc (DVD) Display - Passenger Seat Headrest X1 (SPO Accessory)

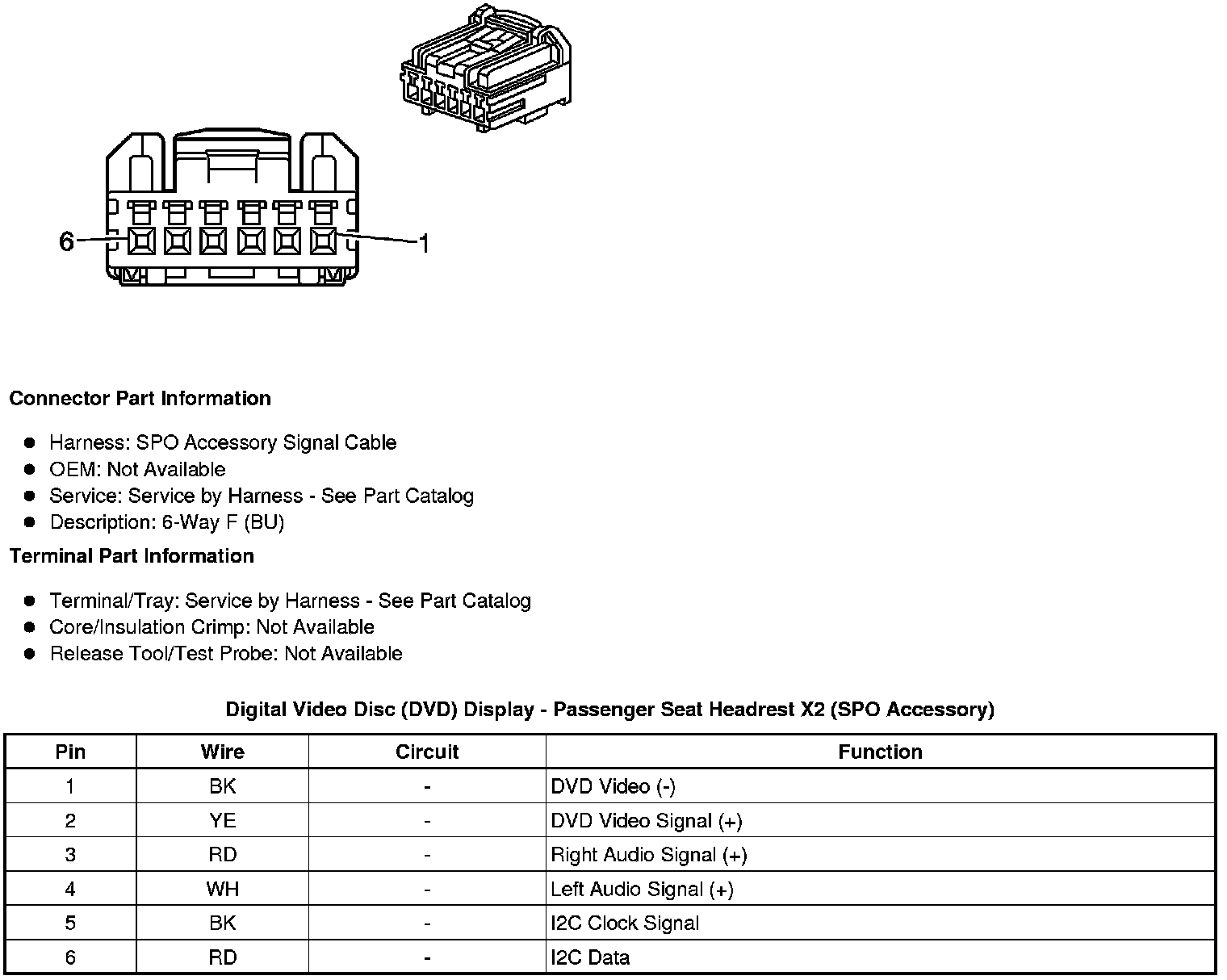

Digital Video Disc (DVD) Display - Passenger Seat Headrest X2 (SPO Accessory)
