Fuse Block - Body

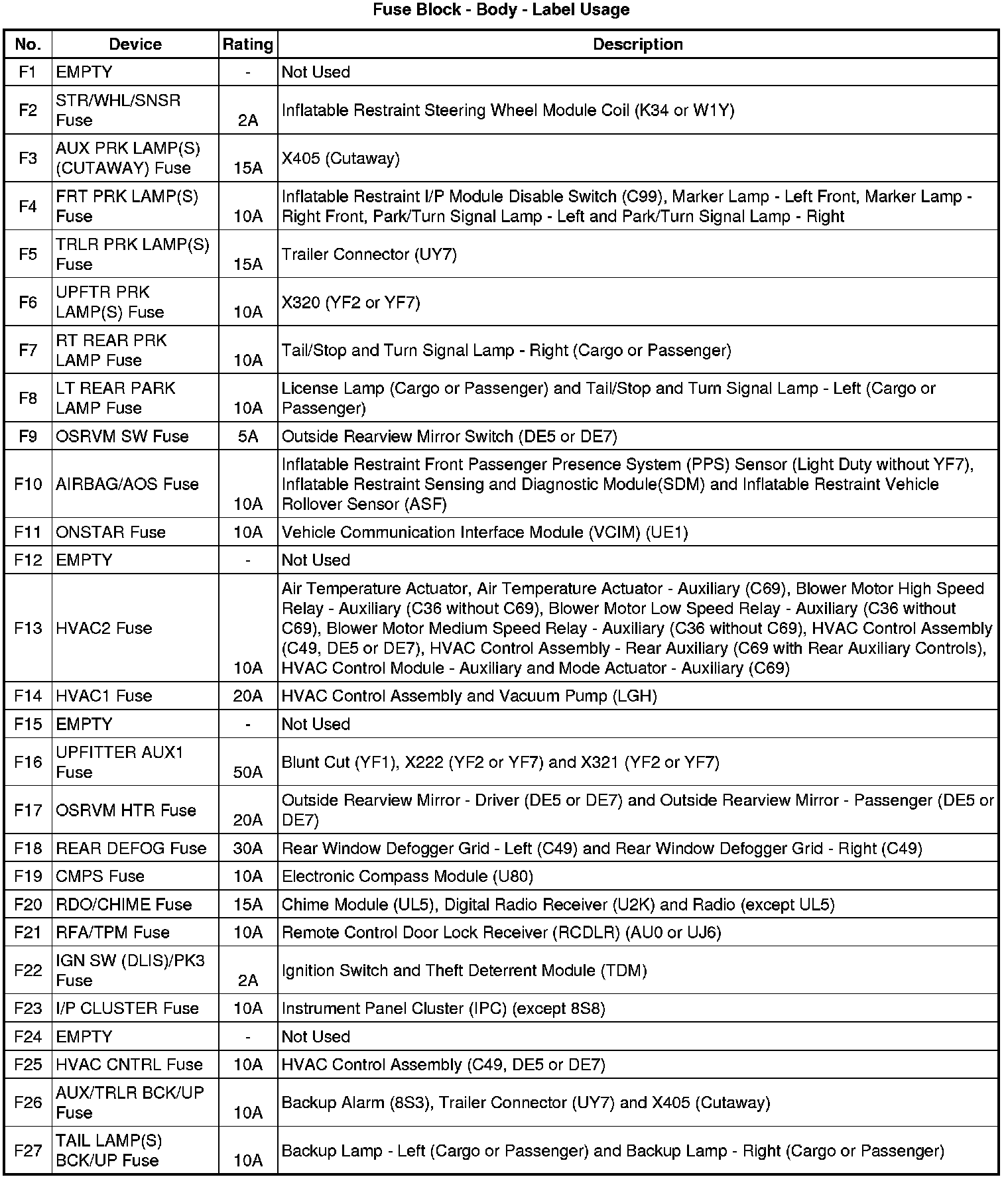

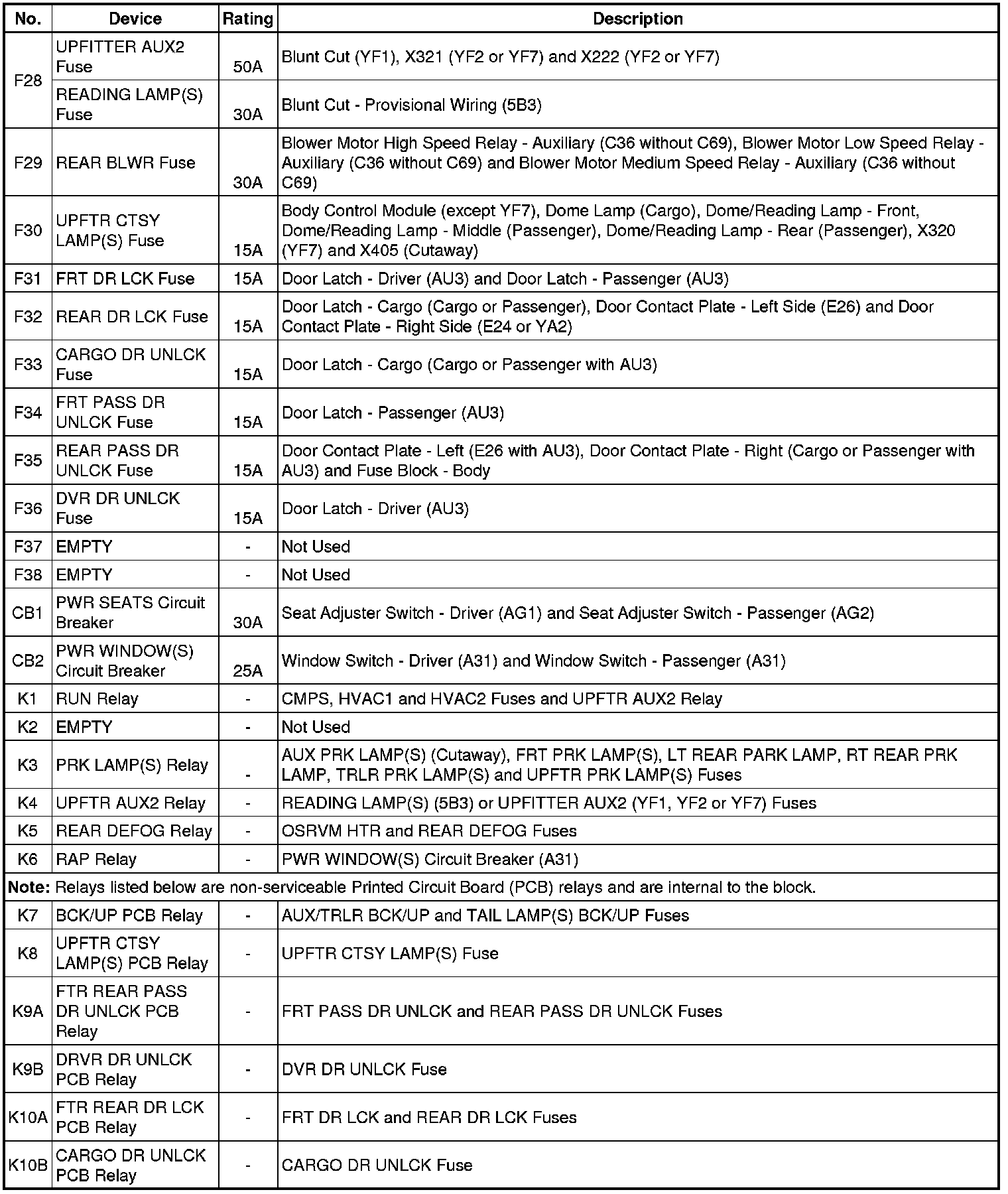

Electrical Center Identification Views

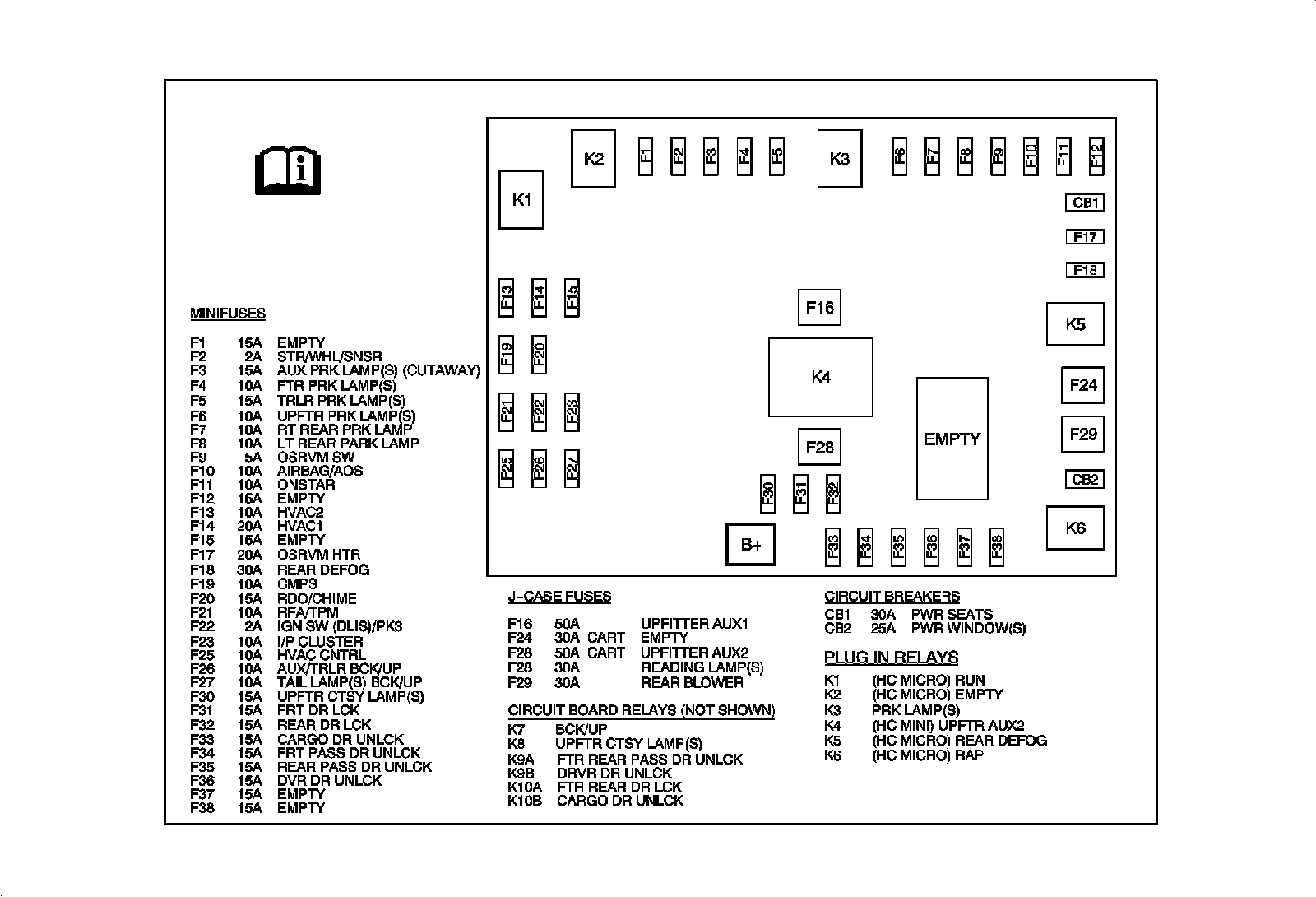

Fuse Block - Body Label

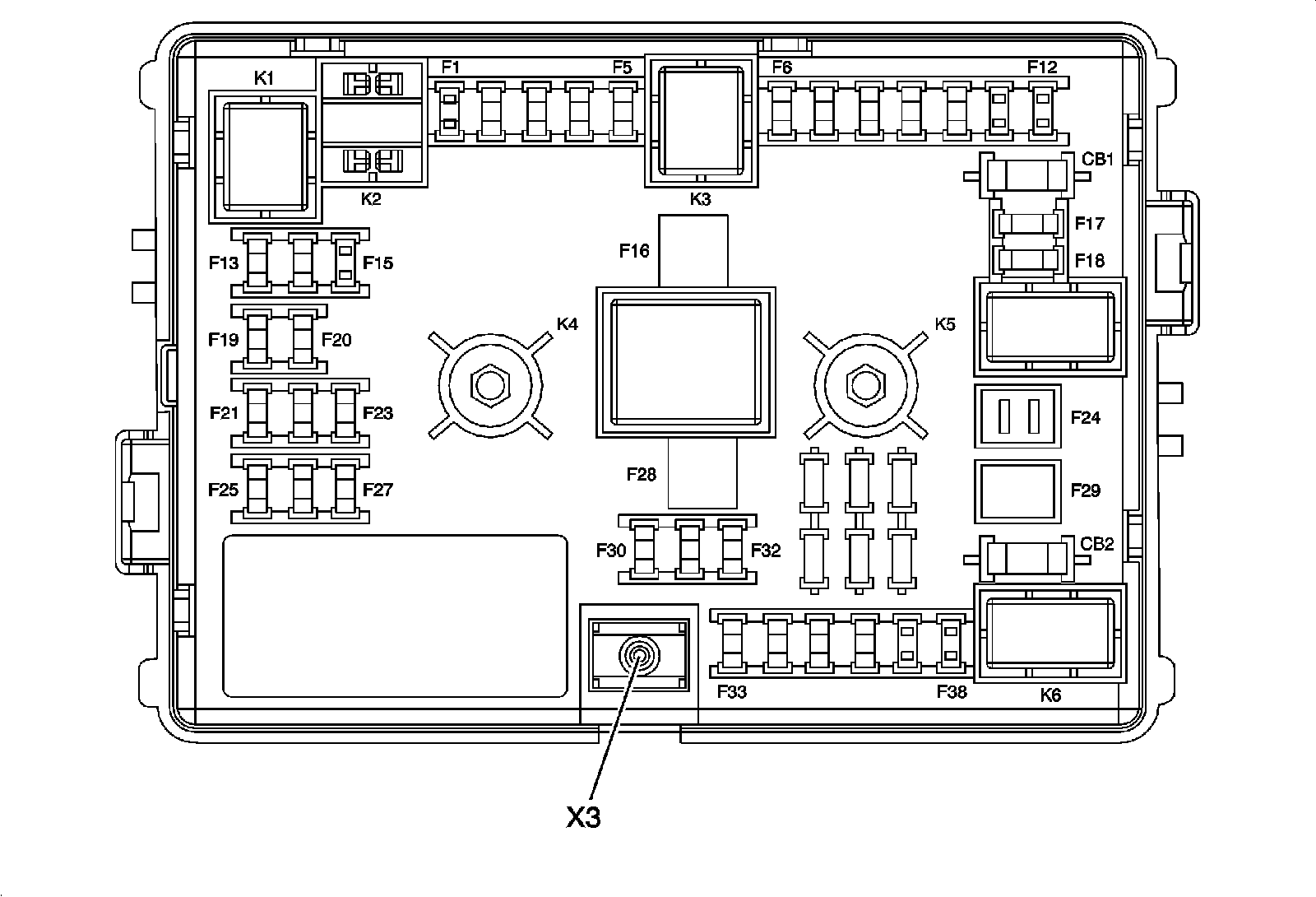

Fuse Block - Body Top View





Fuse Block - Body Bottom View
