Blower Motor Relay: Diagrams




Component Connector End Views

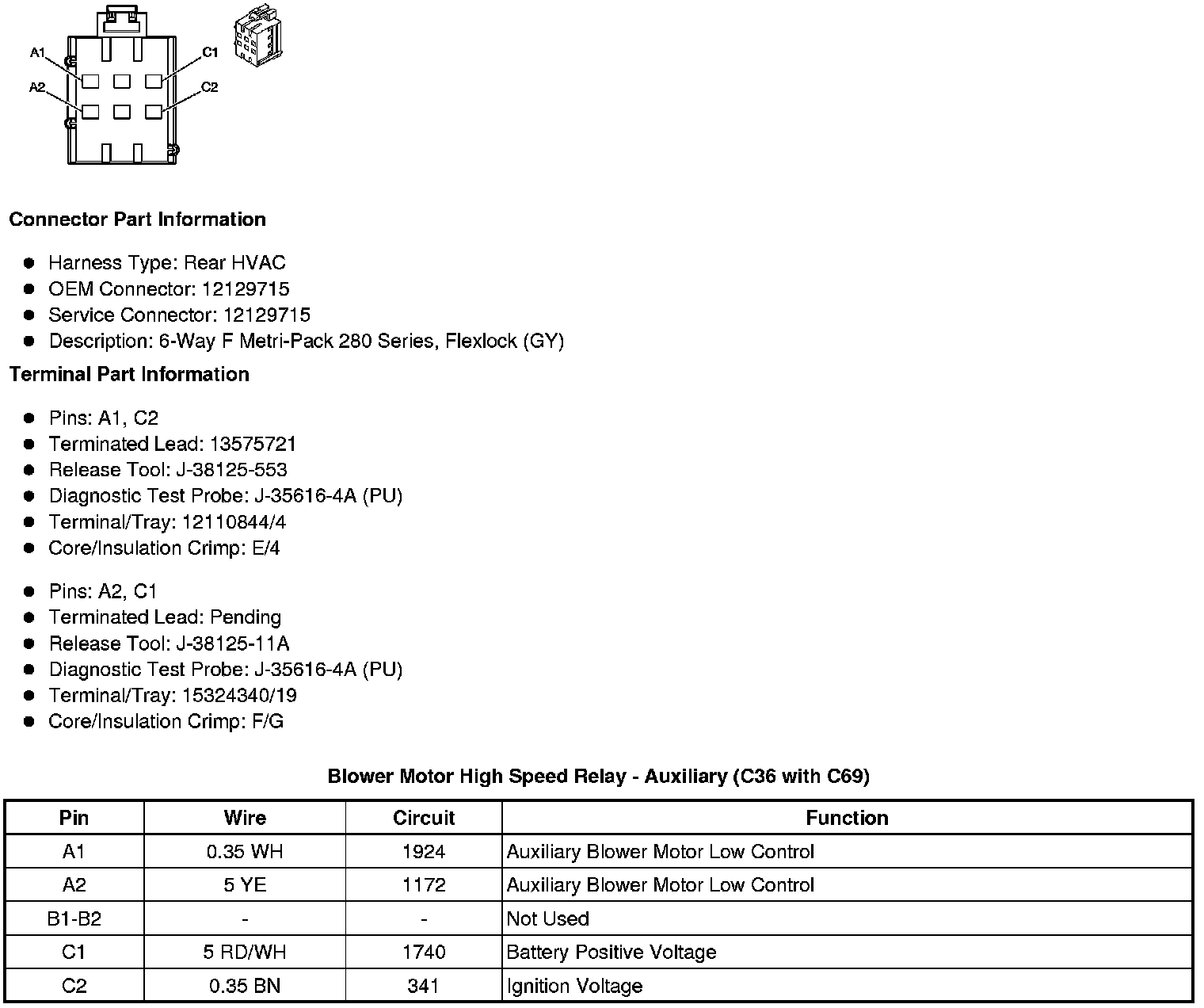

Blower Motor High Speed Relay - Auxiliary (C36 with C69)

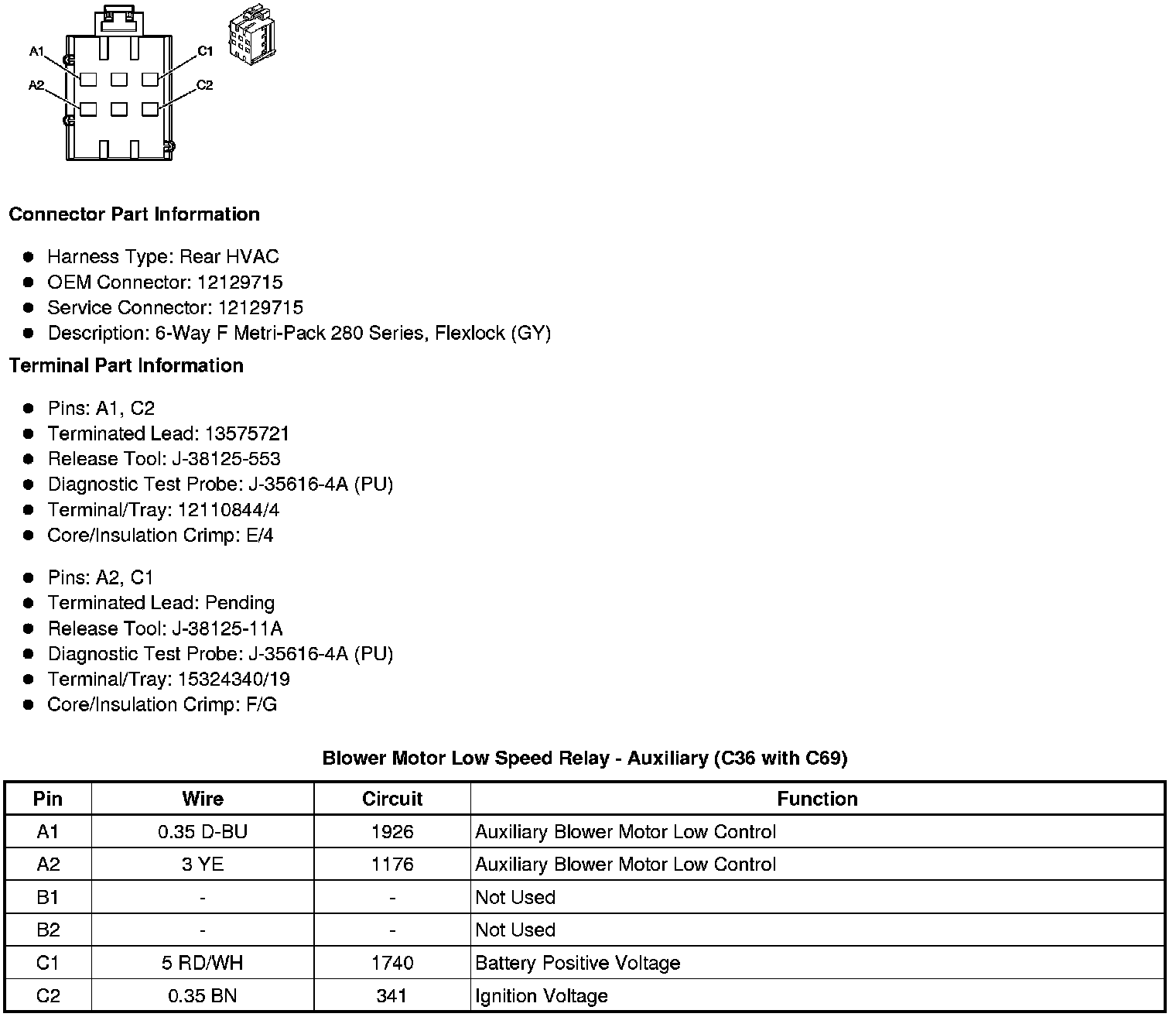

Blower Motor Low Speed Relay - Auxiliary (C36 with C69)

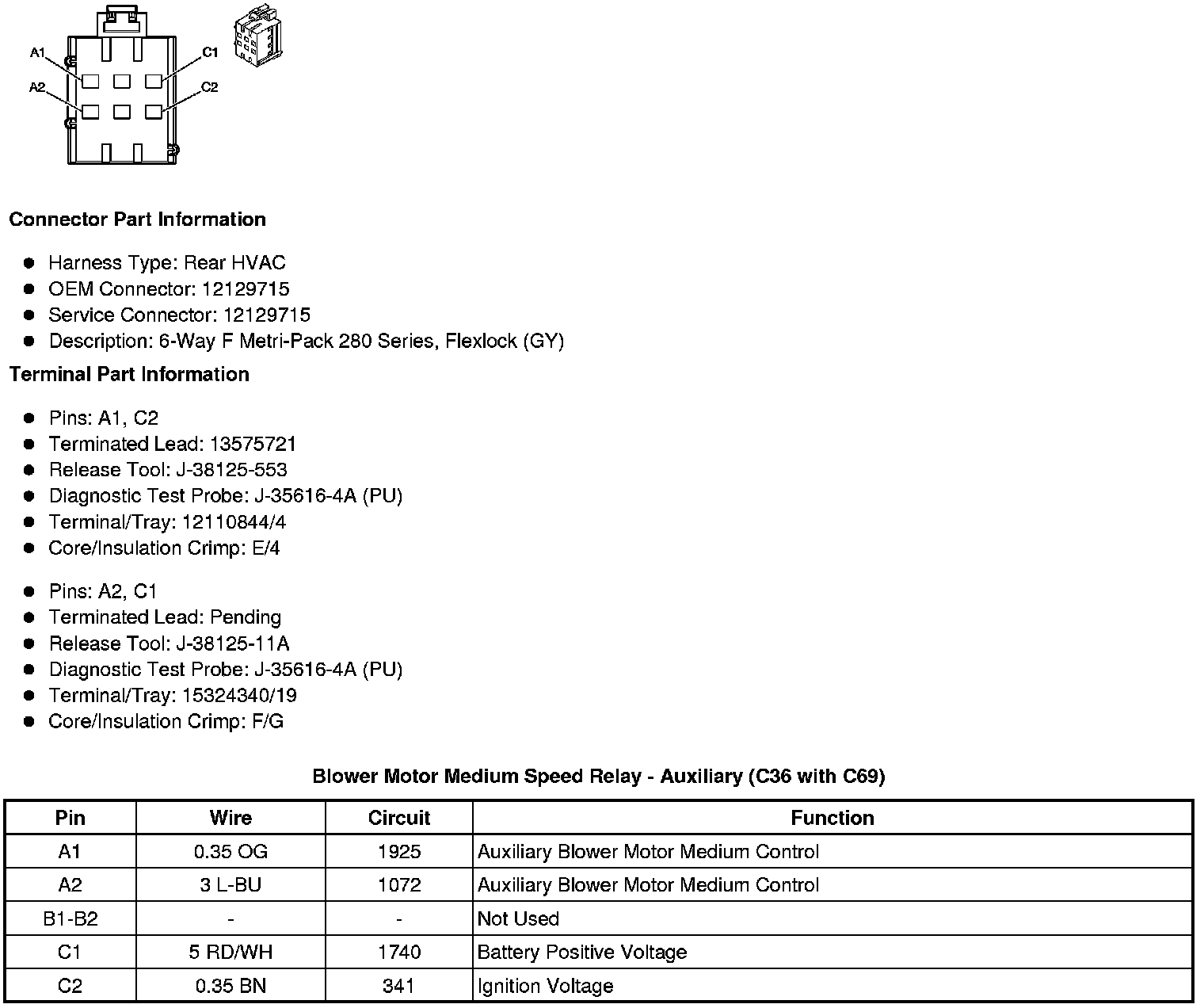

Blower Motor Medium Speed Relay - Auxiliary (C36 with C69)
