Turn Signal Lamp: Diagrams




Component Connector End Views

Tail/Stop and Turn Signal Lamp - Left (Passenger or Cargo)

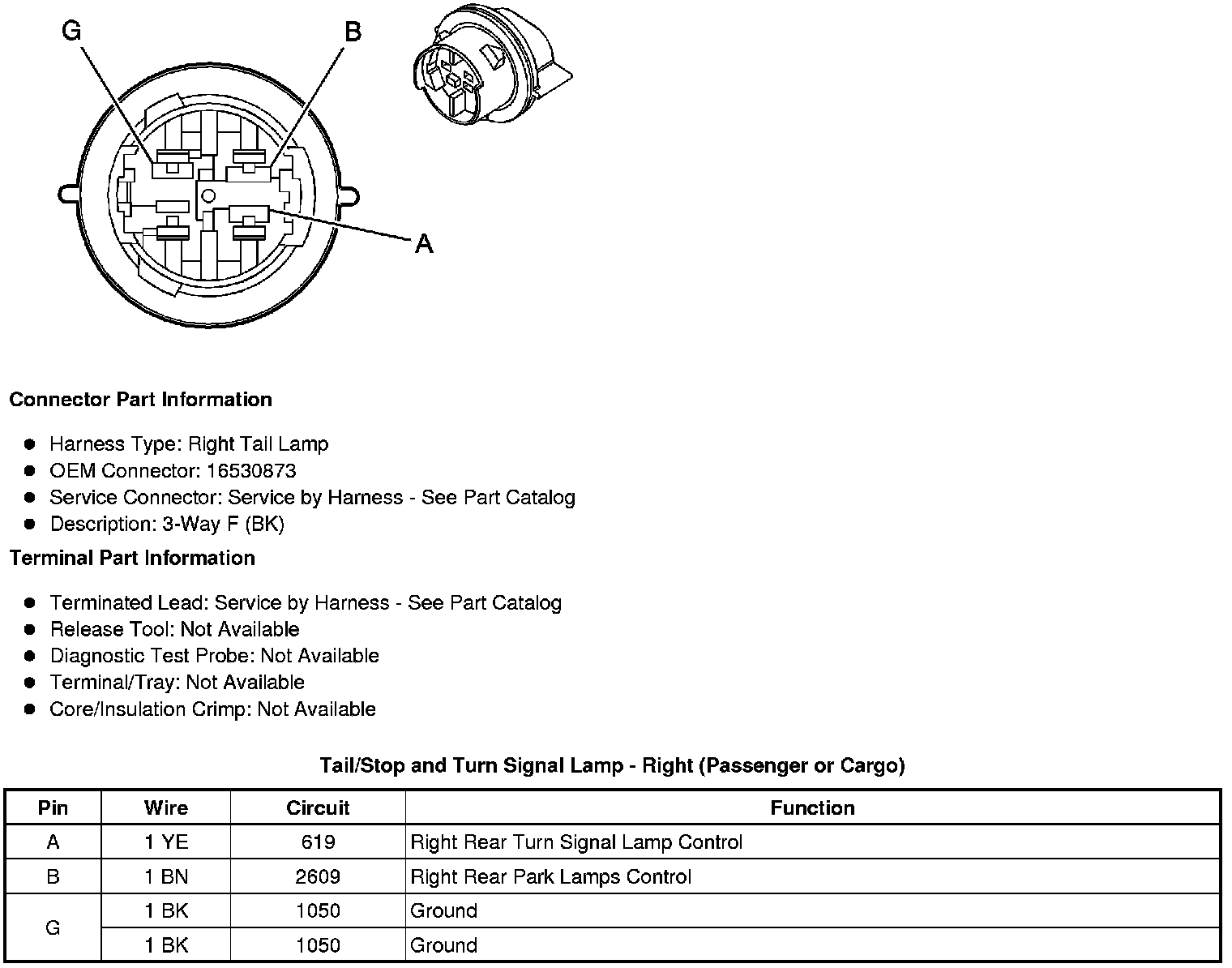

Tail/Stop and Turn Signal Lamp - Right (Passenger or Cargo)

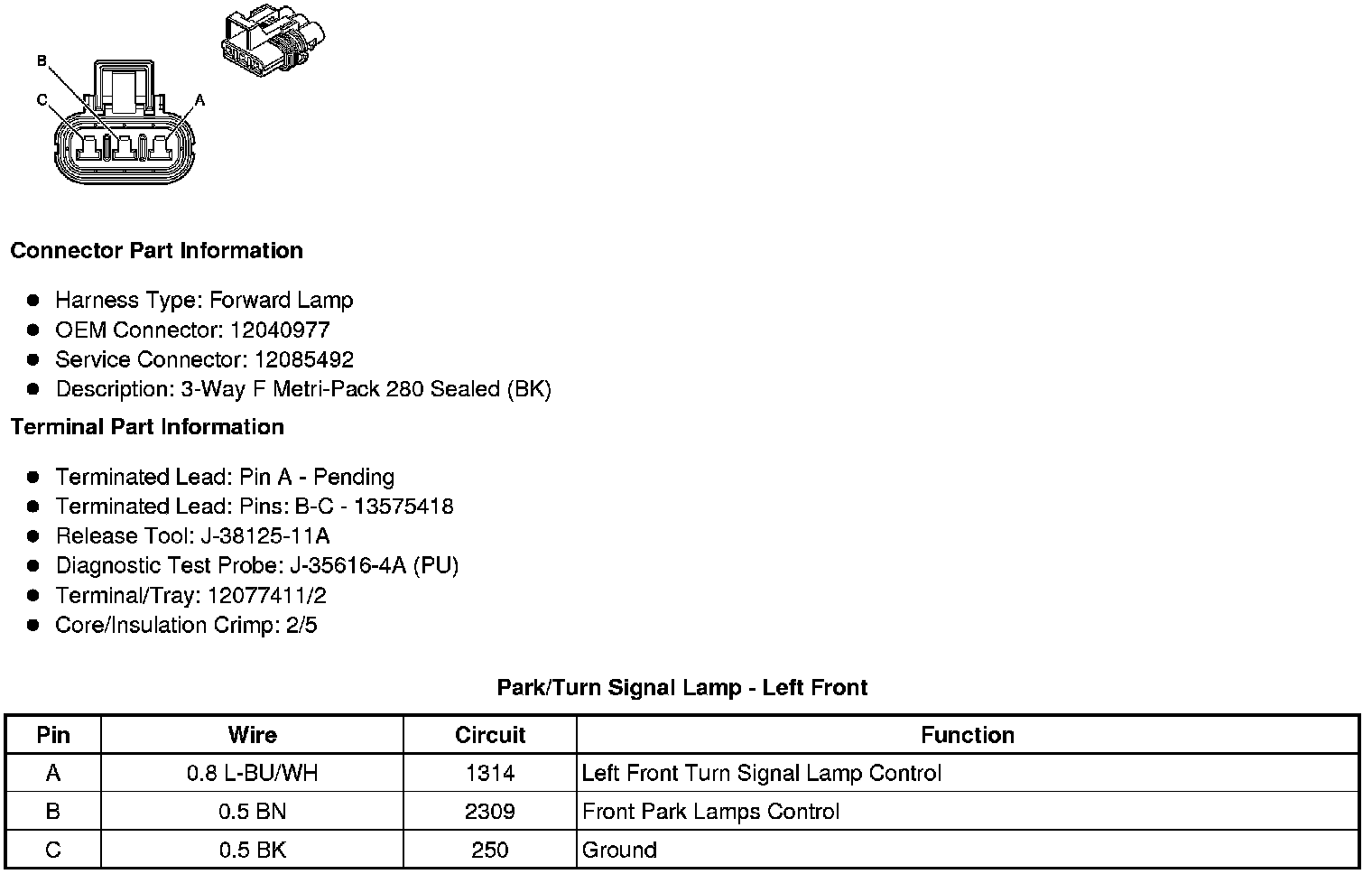

Park/Turn Signal Lamp - Left Front

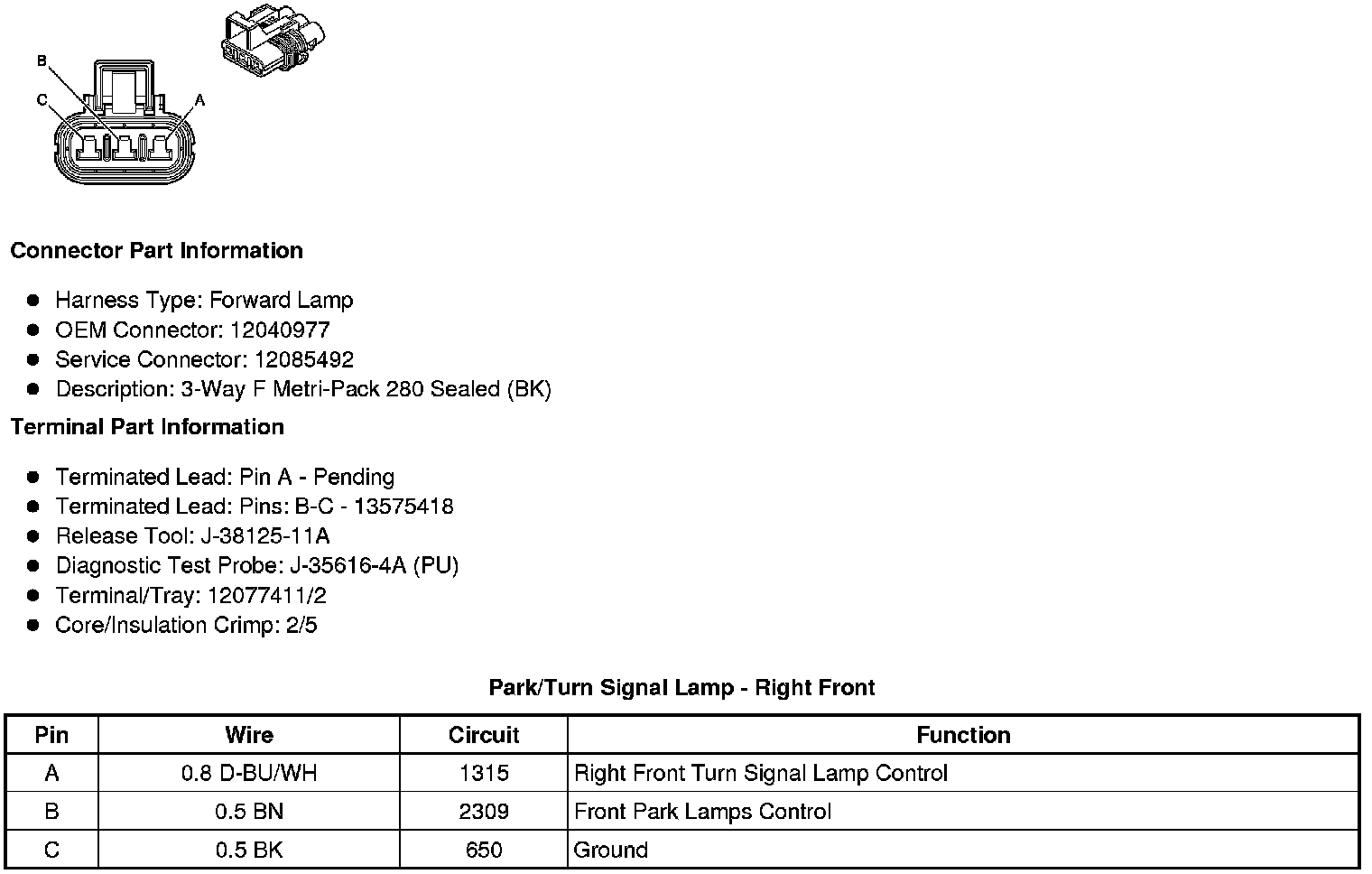

Park/Turn Signal Lamp - Right Front
