Camshaft Position (CMP) Actuator Solenoid Valve (LC8 or L96)

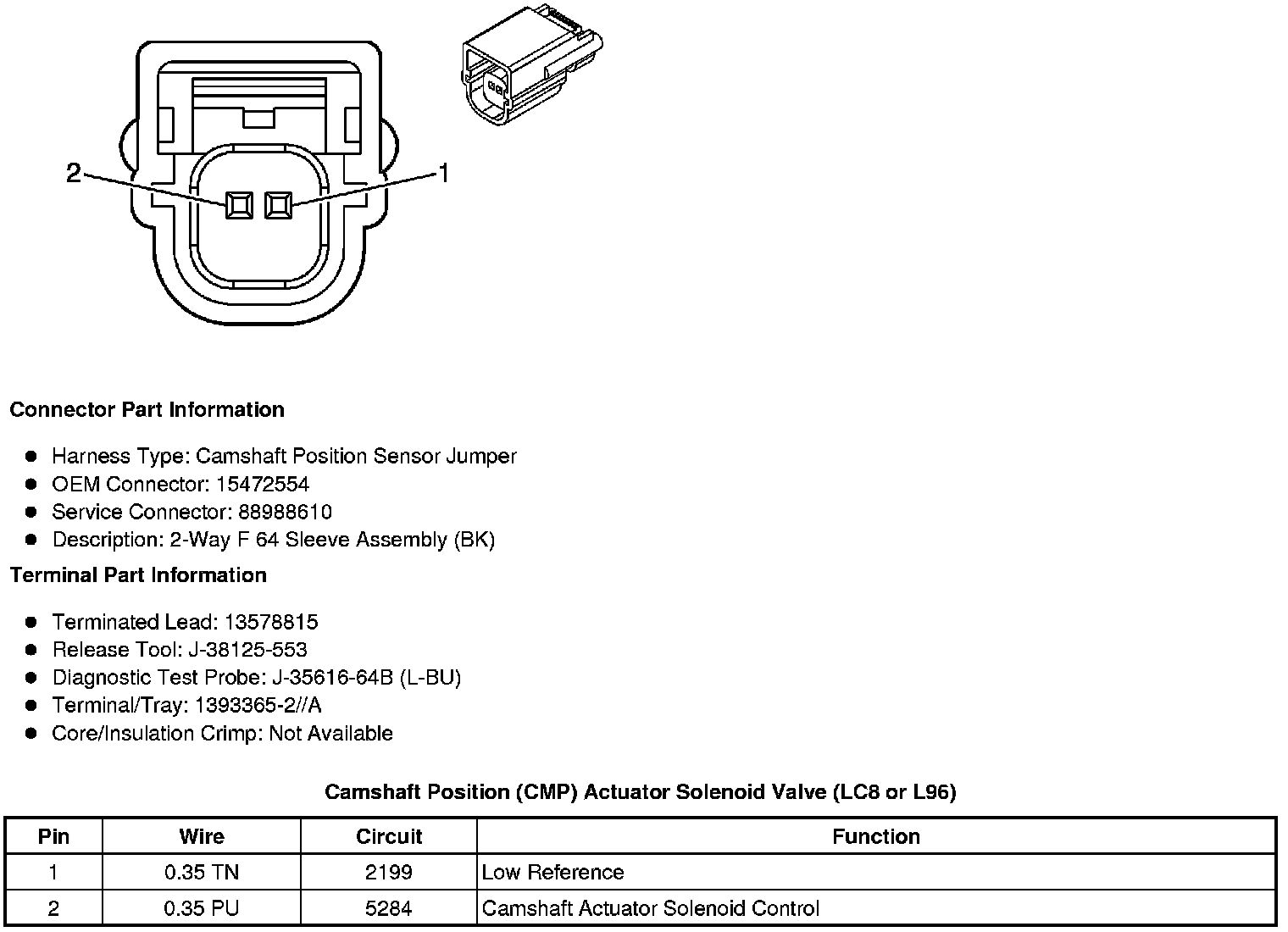

Camshaft Position (CMP) Actuator Solenoid Valve (LC8 or L96)
Component Connector End Views
Camshaft
Position (CMP) Actuator Solenoid Valve (LC8 or L96)
