Home >> Chevrolet >> 2011 >> Express 2500 V8-6.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Torque Converter >> Service and Repair >> Torque Converter Housing With Fluid Pump Assemble

Torque Converter Housing With Fluid Pump Assemble

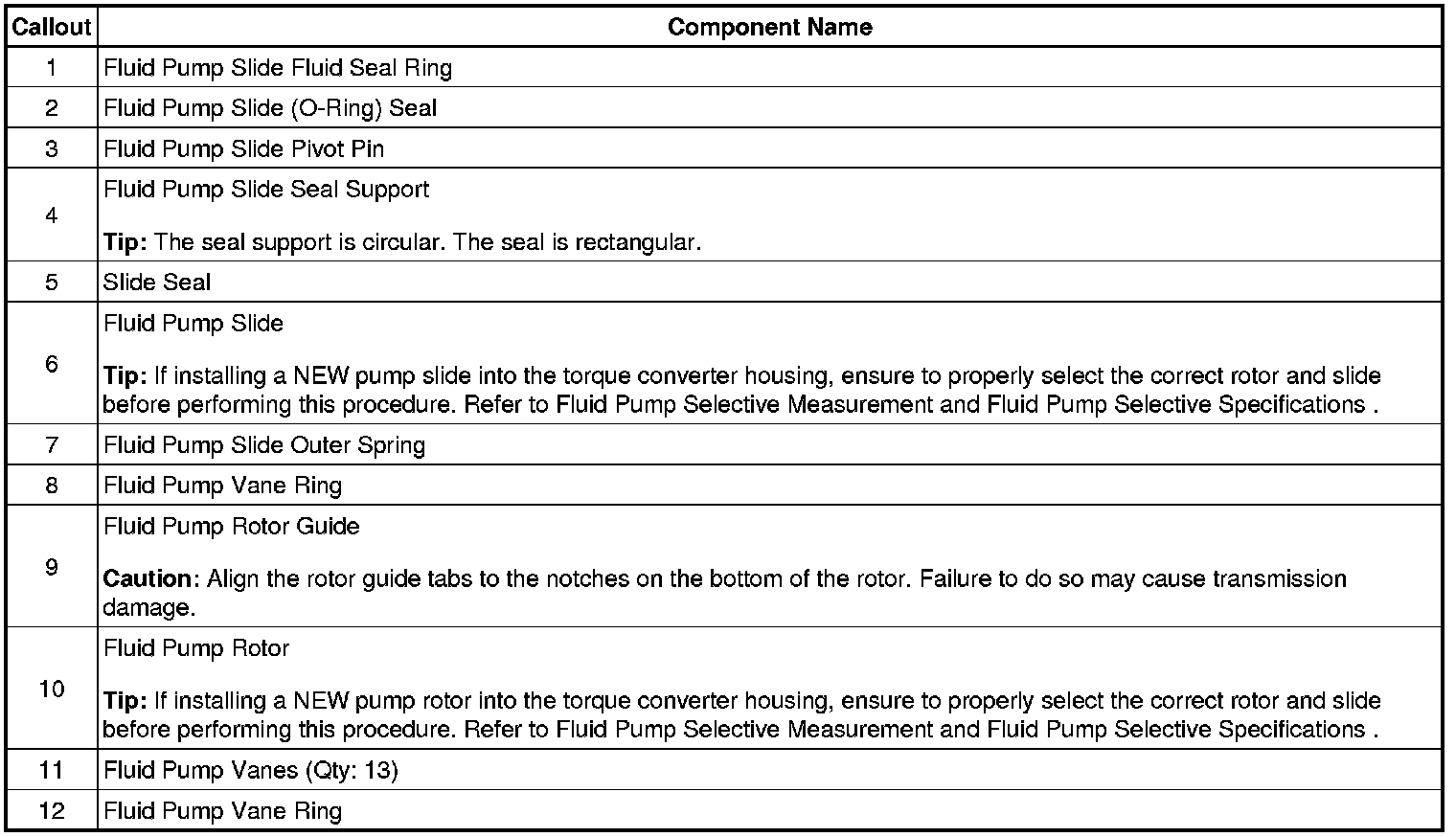

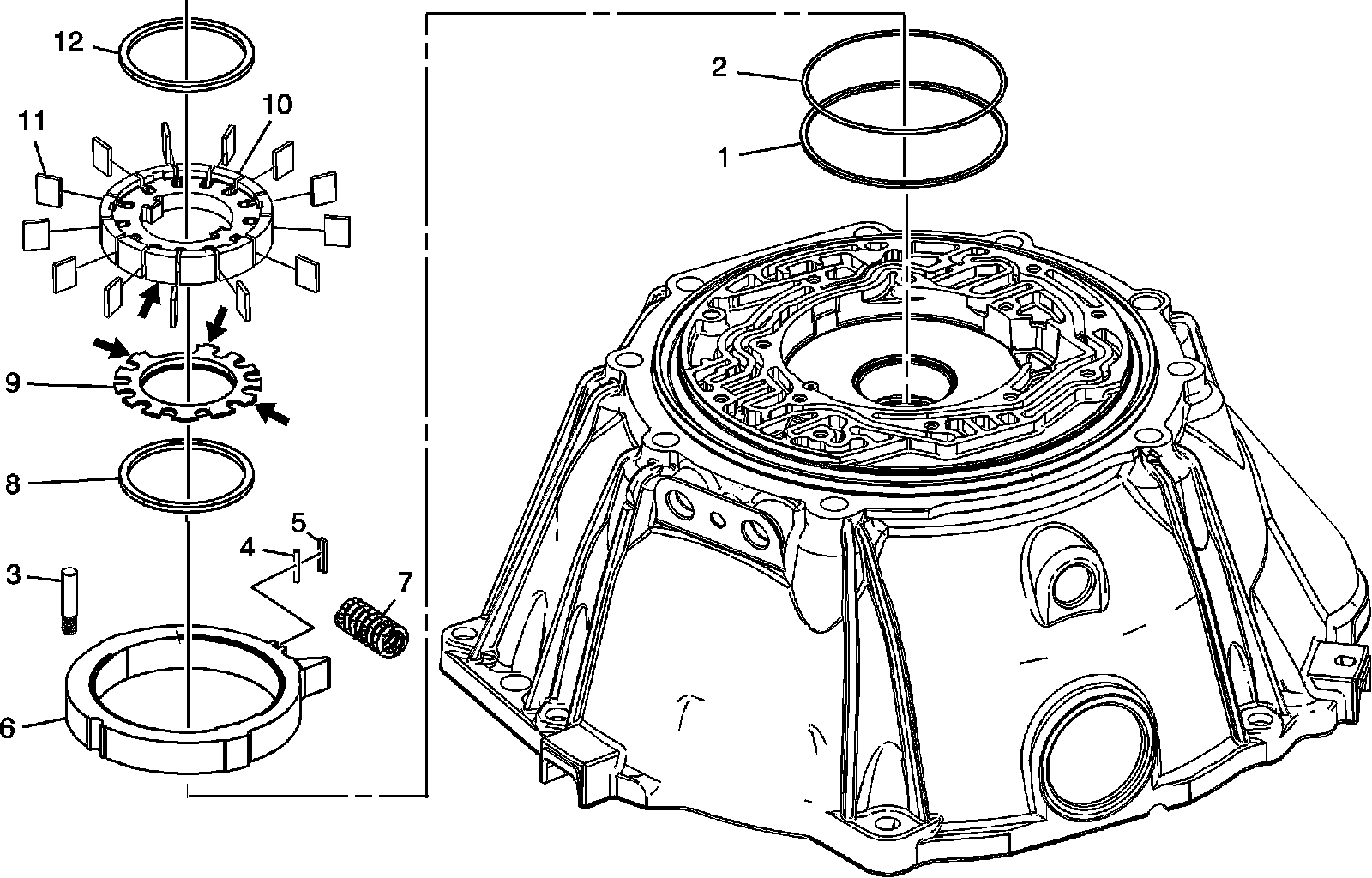

Torque Converter Housing with Fluid Pump Assemble
