Home >> Chevrolet >> 2011 >> Express 2500 V8-6.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Clutch >> Service and Repair >> 1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

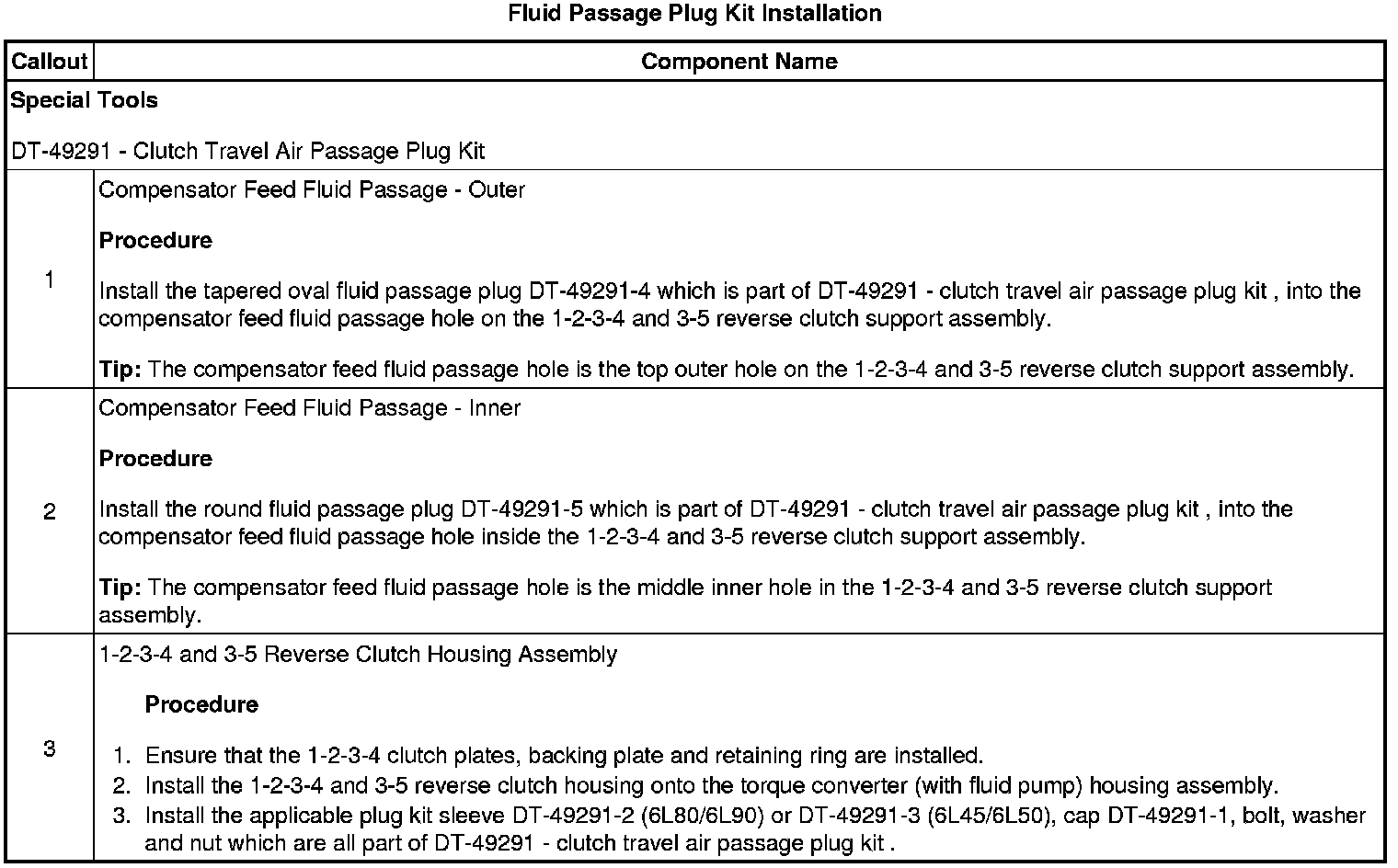

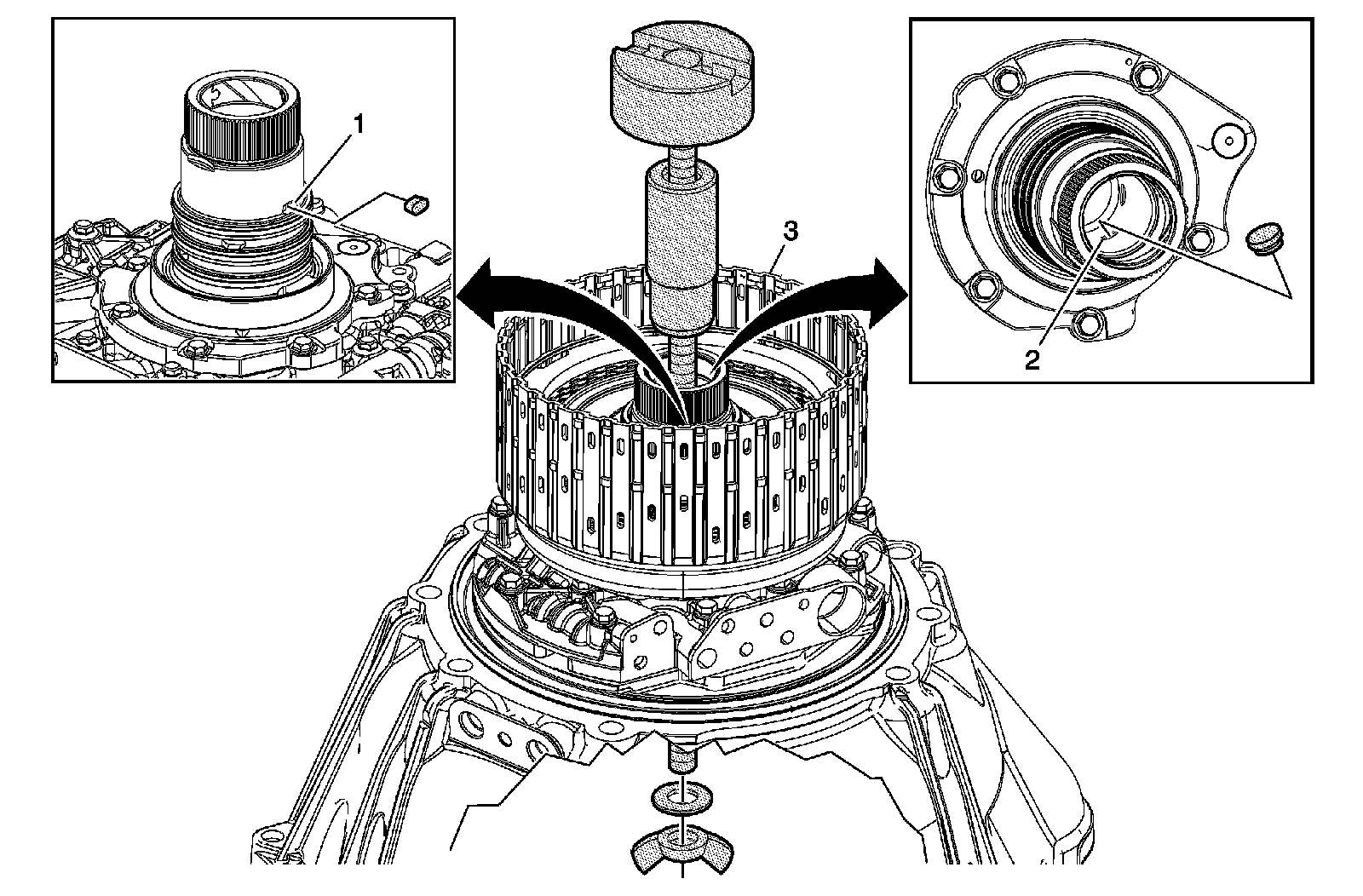

Fluid Passage Plug Kit Installation

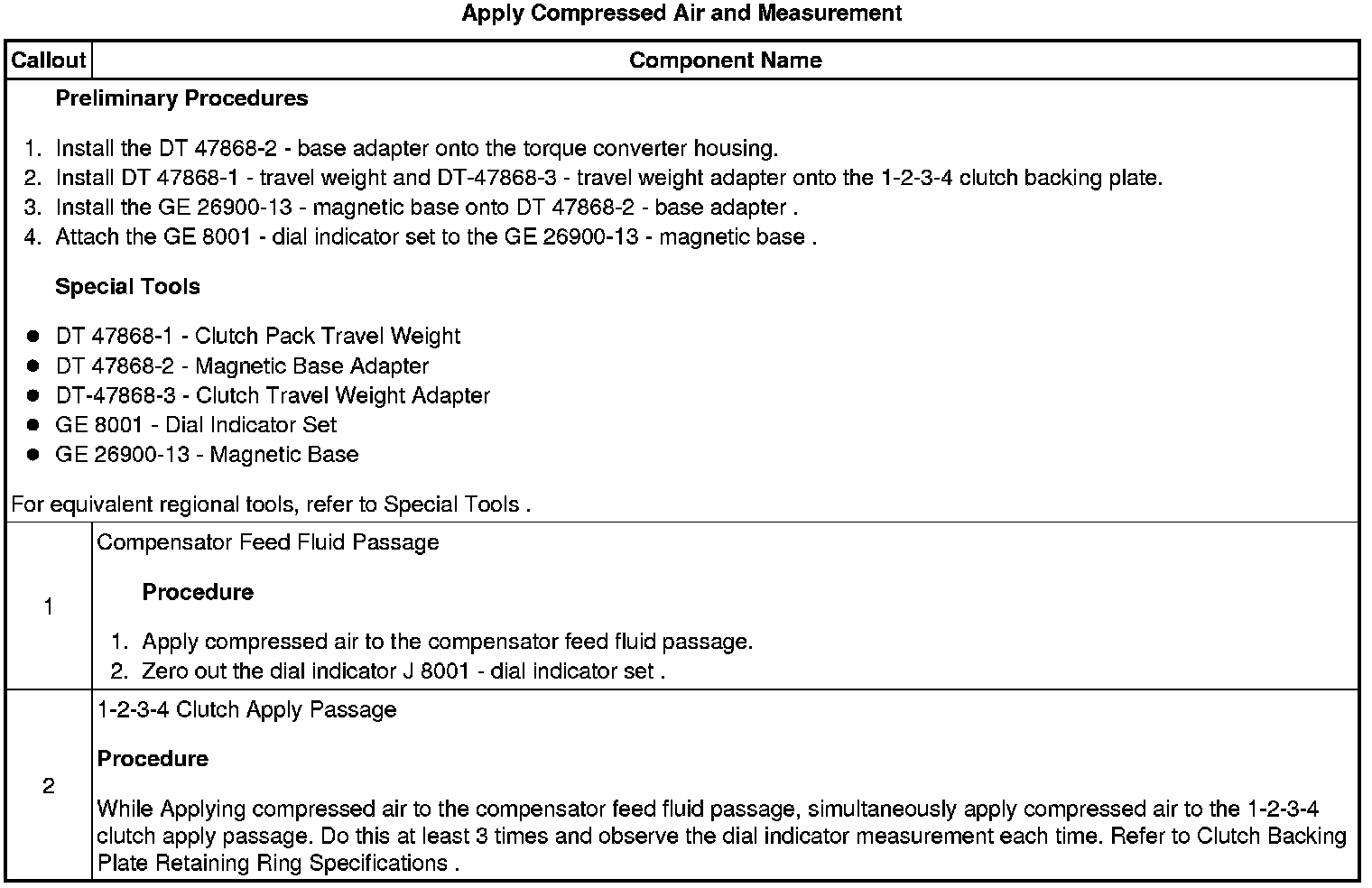

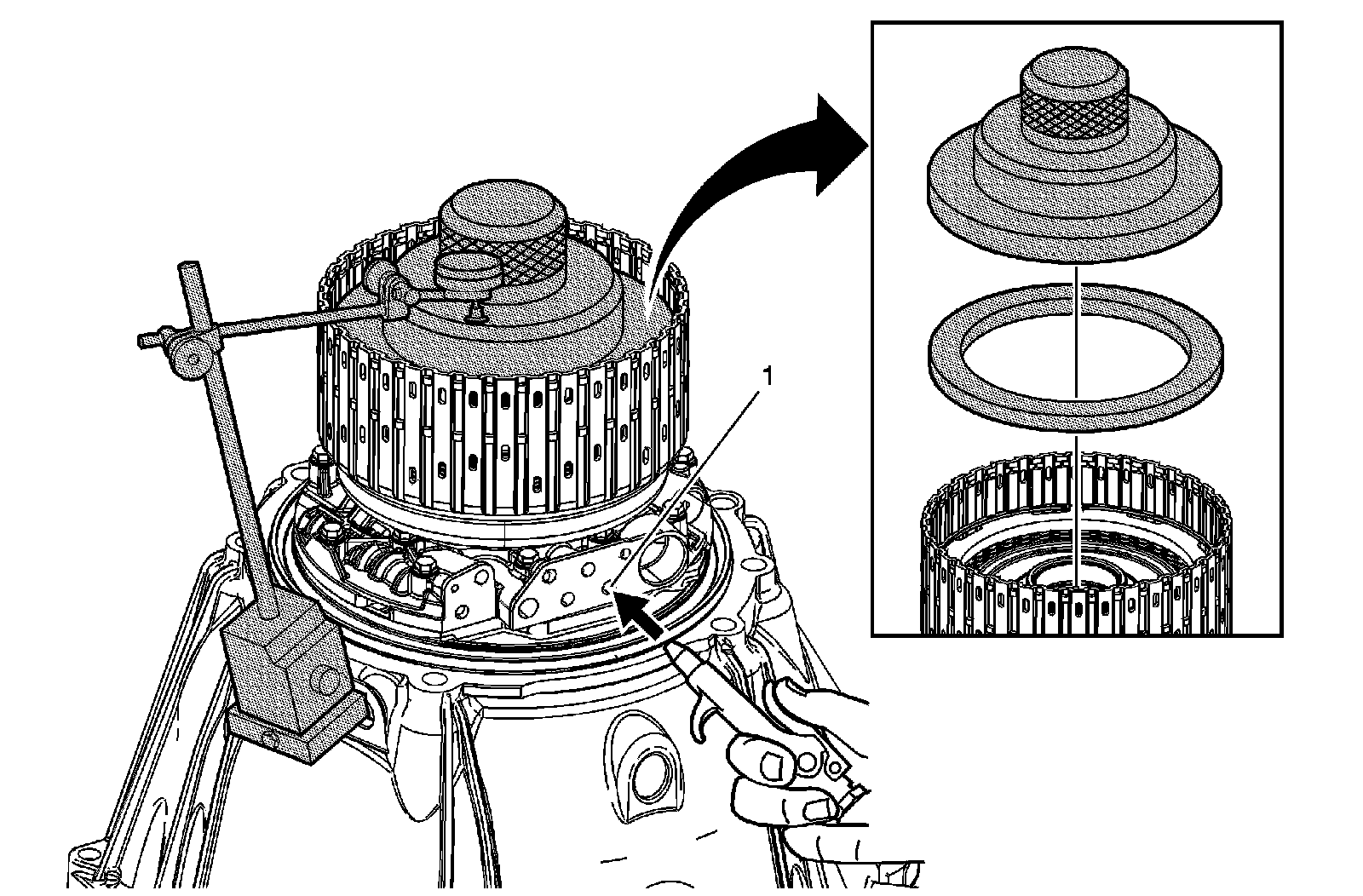

Apply Compressed Air and Measurement
