Blower Motor Resistor: Diagrams




Component Connector End Views

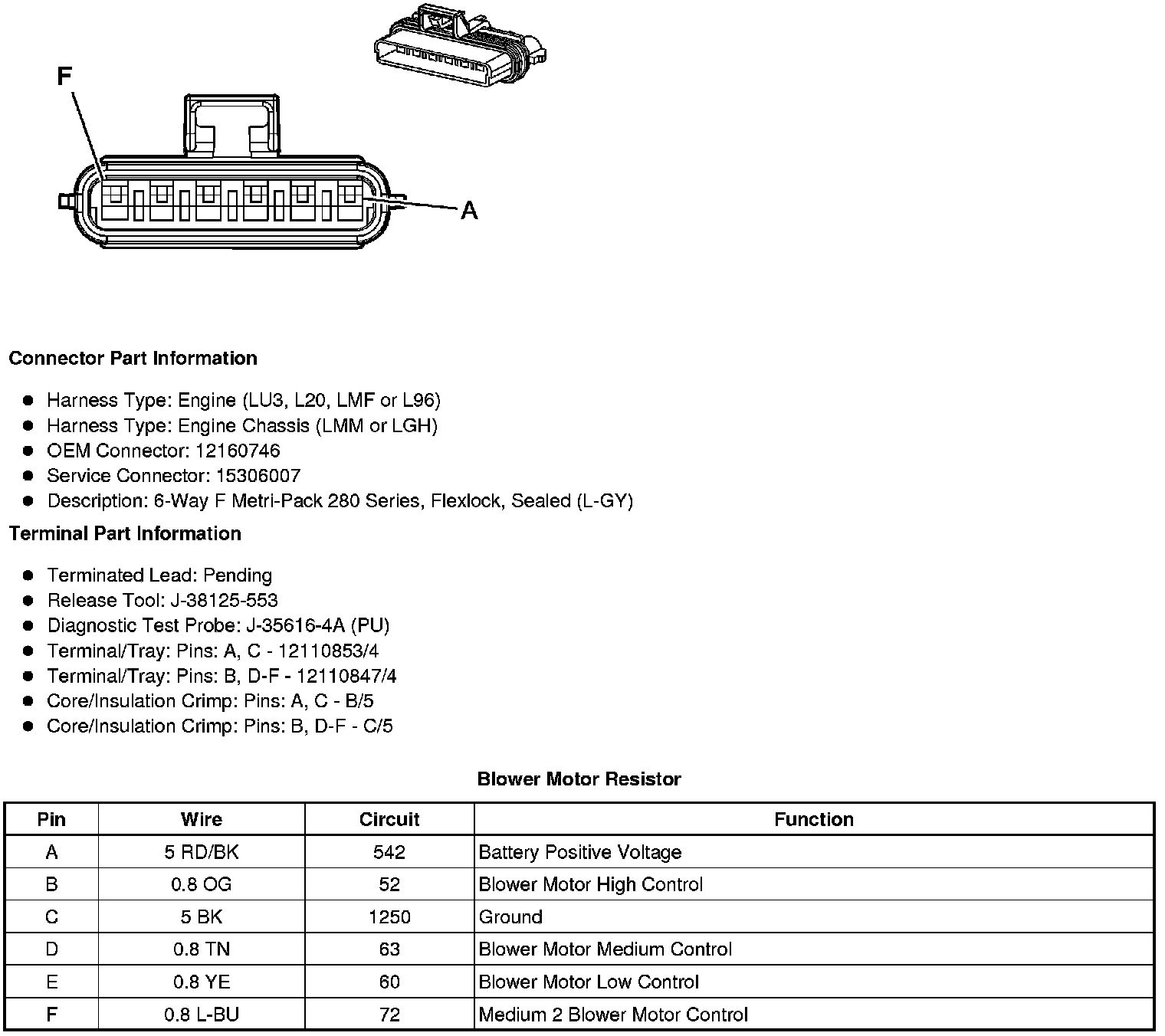

Blower Motor Resistor

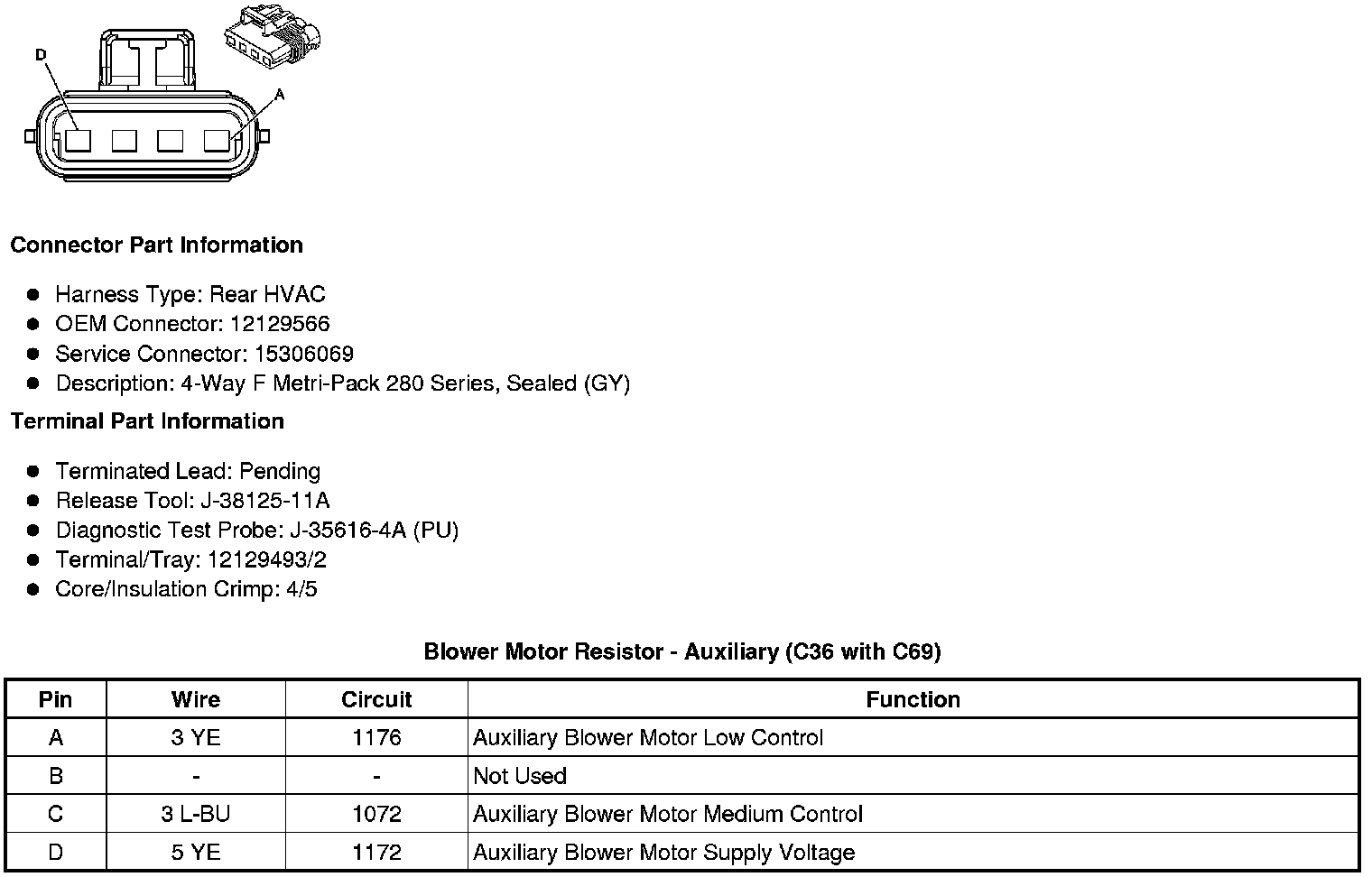

Blower Motor Resistor - Auxiliary (C36 with C69)
