Parking Brake Cable Guide Replacement

Parking Brake Cable Guide Replacement

Removal Procedure

1. Release the parking brake.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

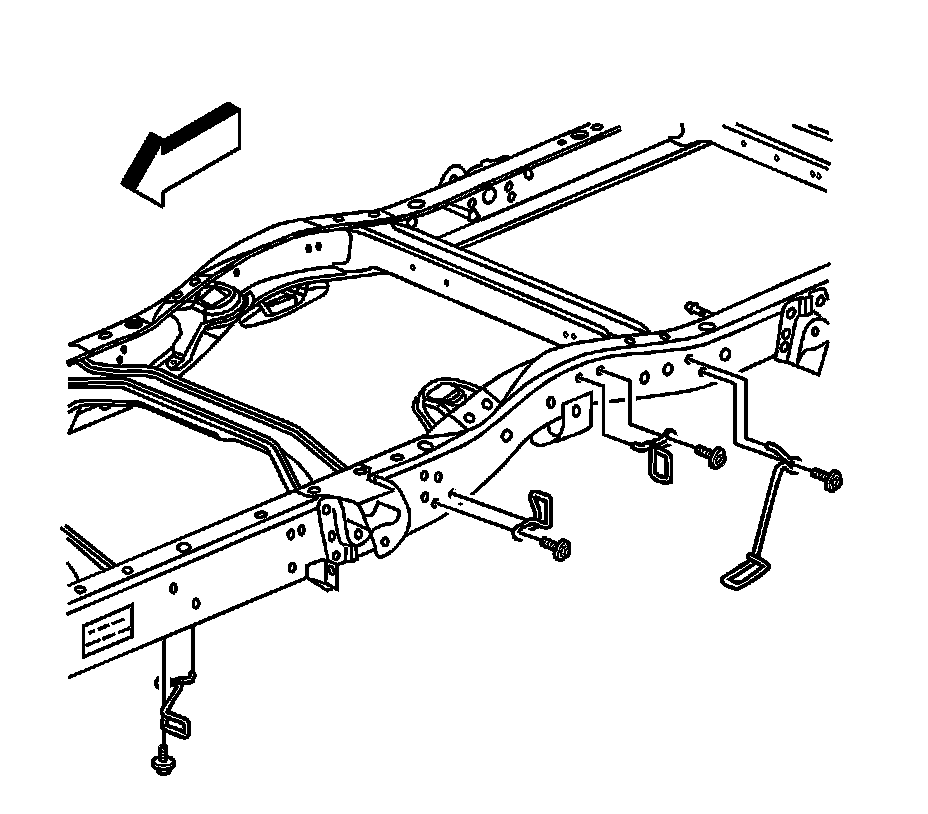

3. For cutaway vehicles, remove the park brake cable guide bolt from the frame.

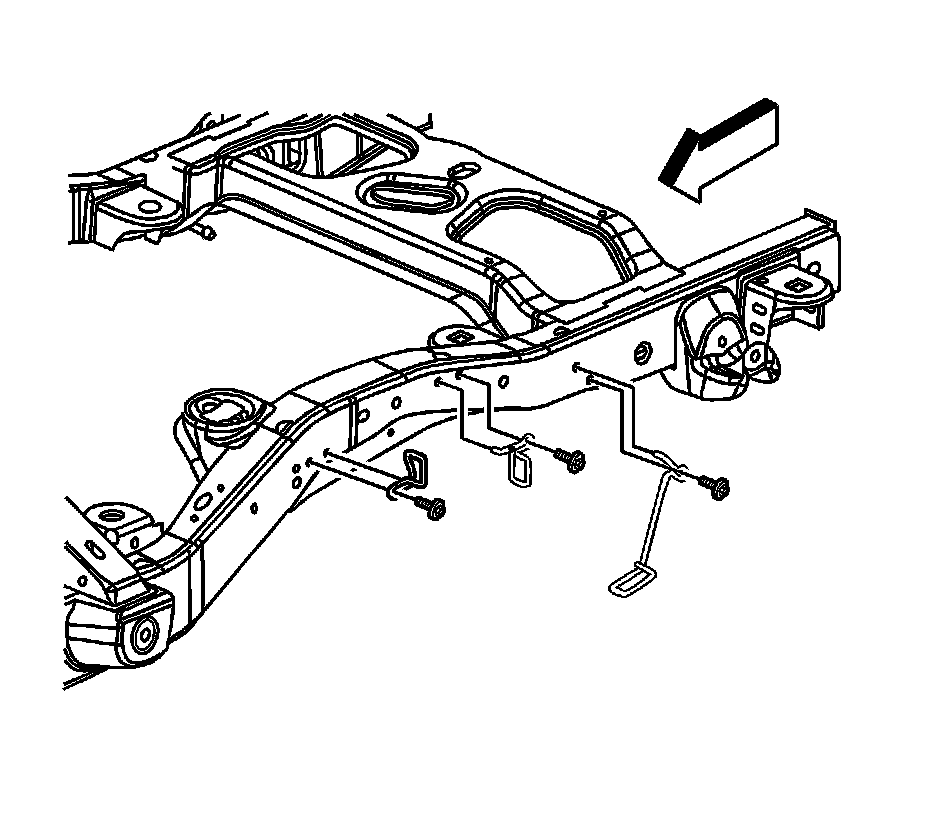

4. For cargo and passenger vehicles, remove the park brake cable guide bolt from the frame.
5. Remove the park brake cable guide.
6. Remove the park brake guide from the park brake cable.

Installation Procedure

1. Install the park brake cable guide to the park brake cable.
2. Install the park brake cable guide.





Caution: Refer to Fastener Caution (Fastener Caution).

3. For cutaway vehicles, install the park brake cable guide bolt to the frame and tighten to 13 Nm (115 lb in).




4. For cargo and passenger vehicles, install the park brake cable guide bolt to the frame and tighten to 13 Nm (115 lb in).
5. Lower the vehicle.
