Power Seat Motor: Diagrams




Component Connector End Views

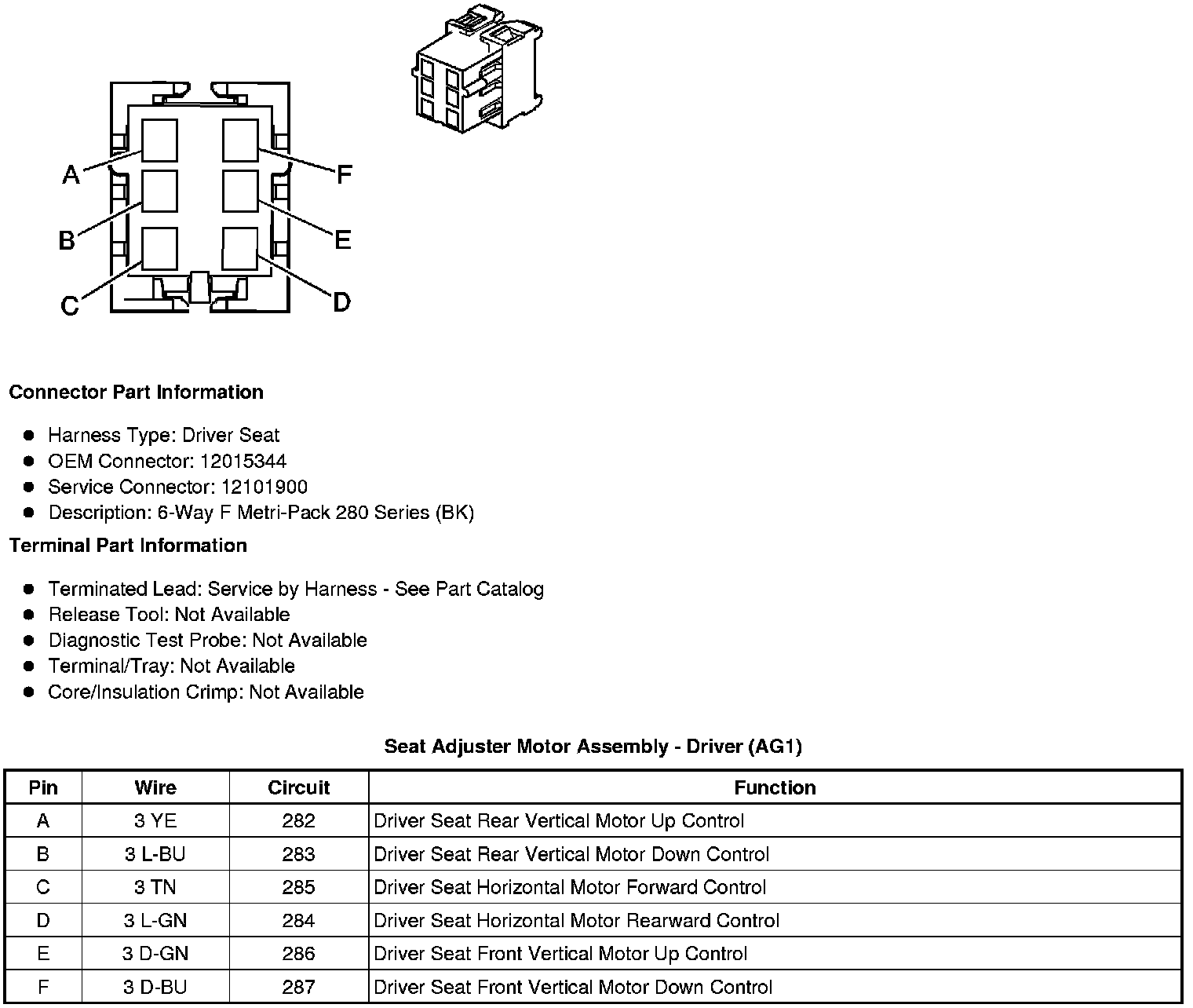

Seat Adjuster Motor Assembly - Driver (AG1)

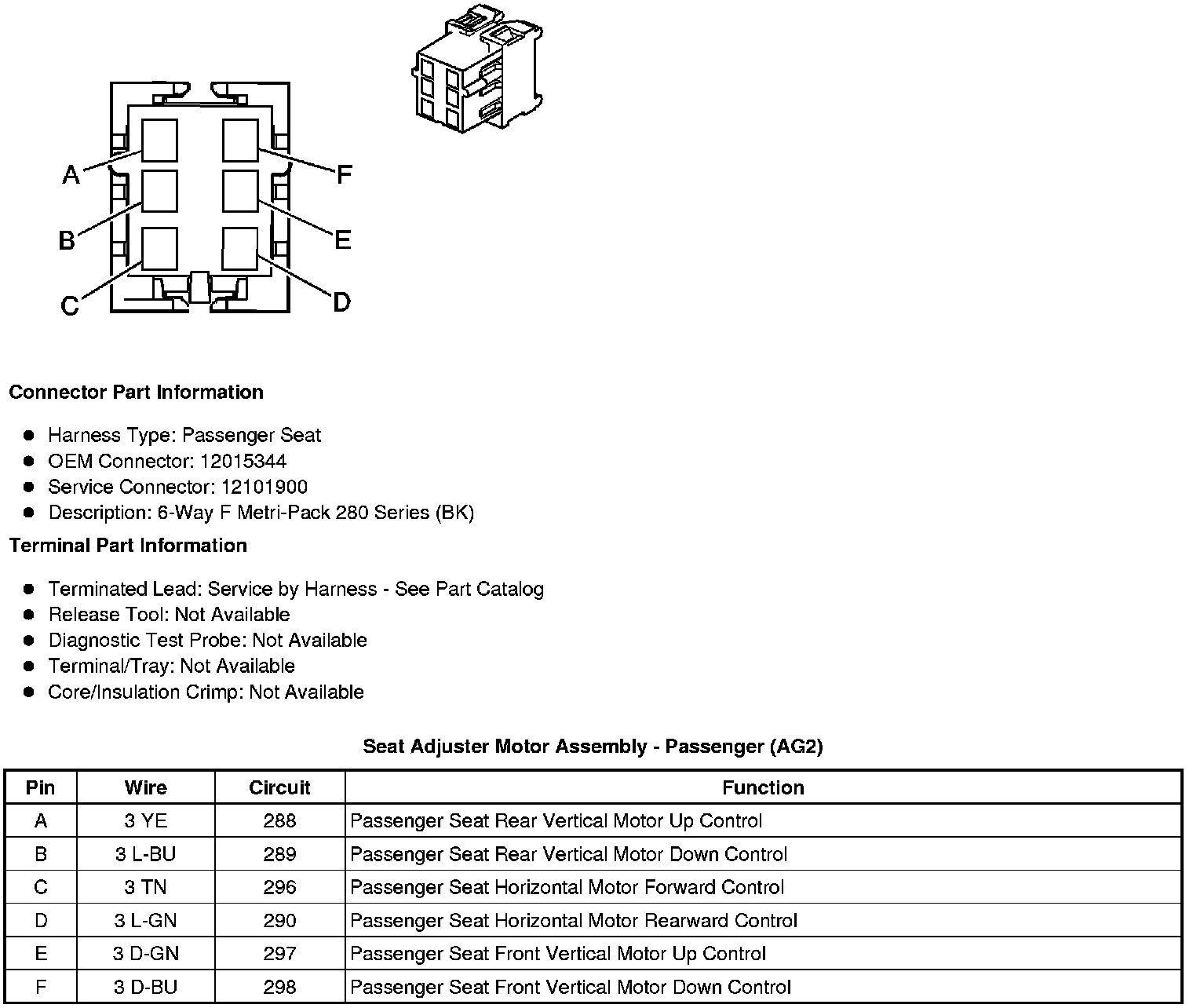

Seat Adjuster Motor Assembly - Passenger (AG2)
