Connector Views




Component Connector End Views

1-2 Shift Solenoid (SS) Valve (M30)





2-3 Shift Solenoid (SS) Valve (M30)

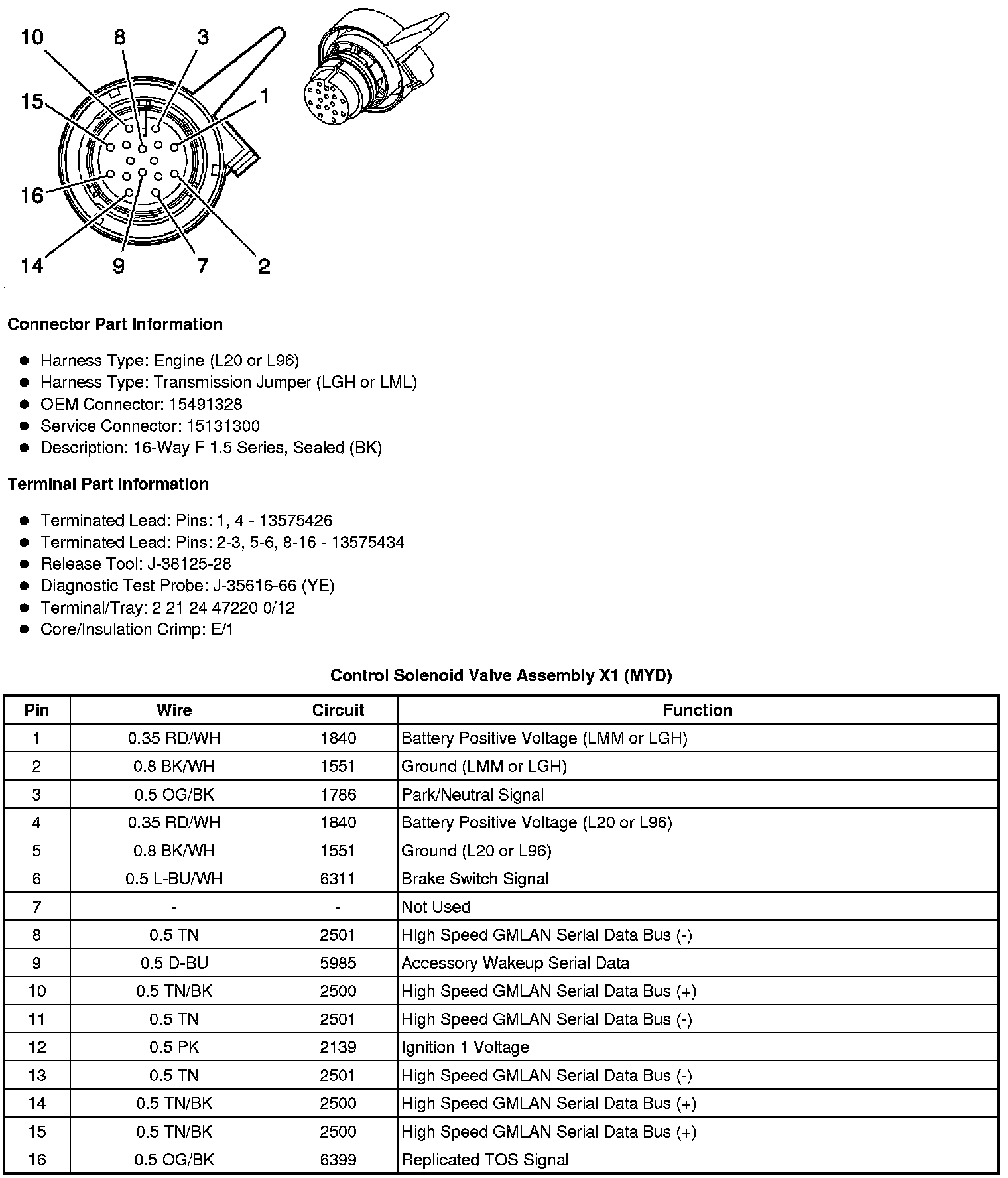

Control Solenoid Valve Assembly X1 (MYD)

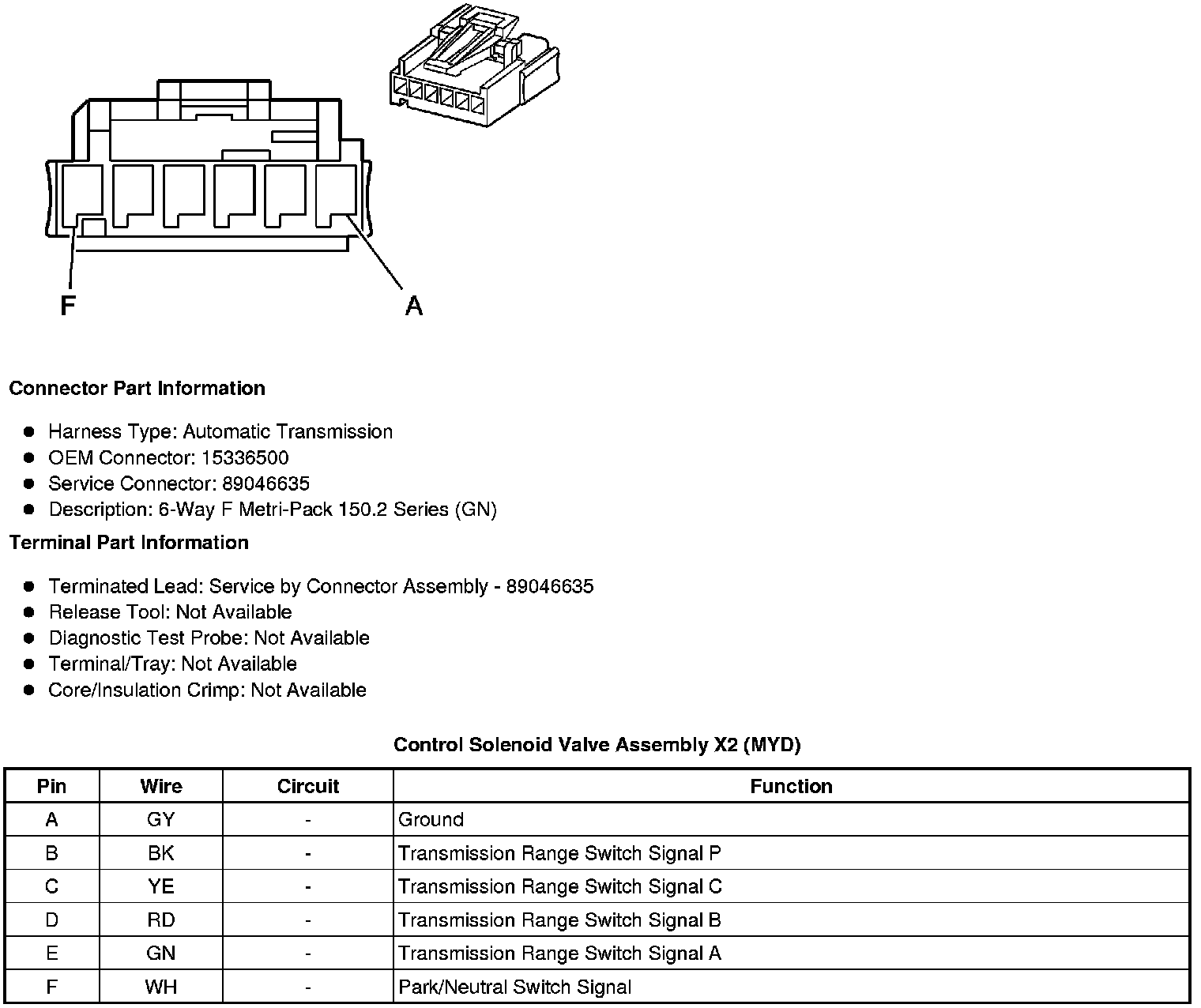

Control Solenoid Valve Assembly X2 (MYD)





Control Solenoid Valve Assembly X3 (MYD)
