Steering Angle Sensor: Diagrams

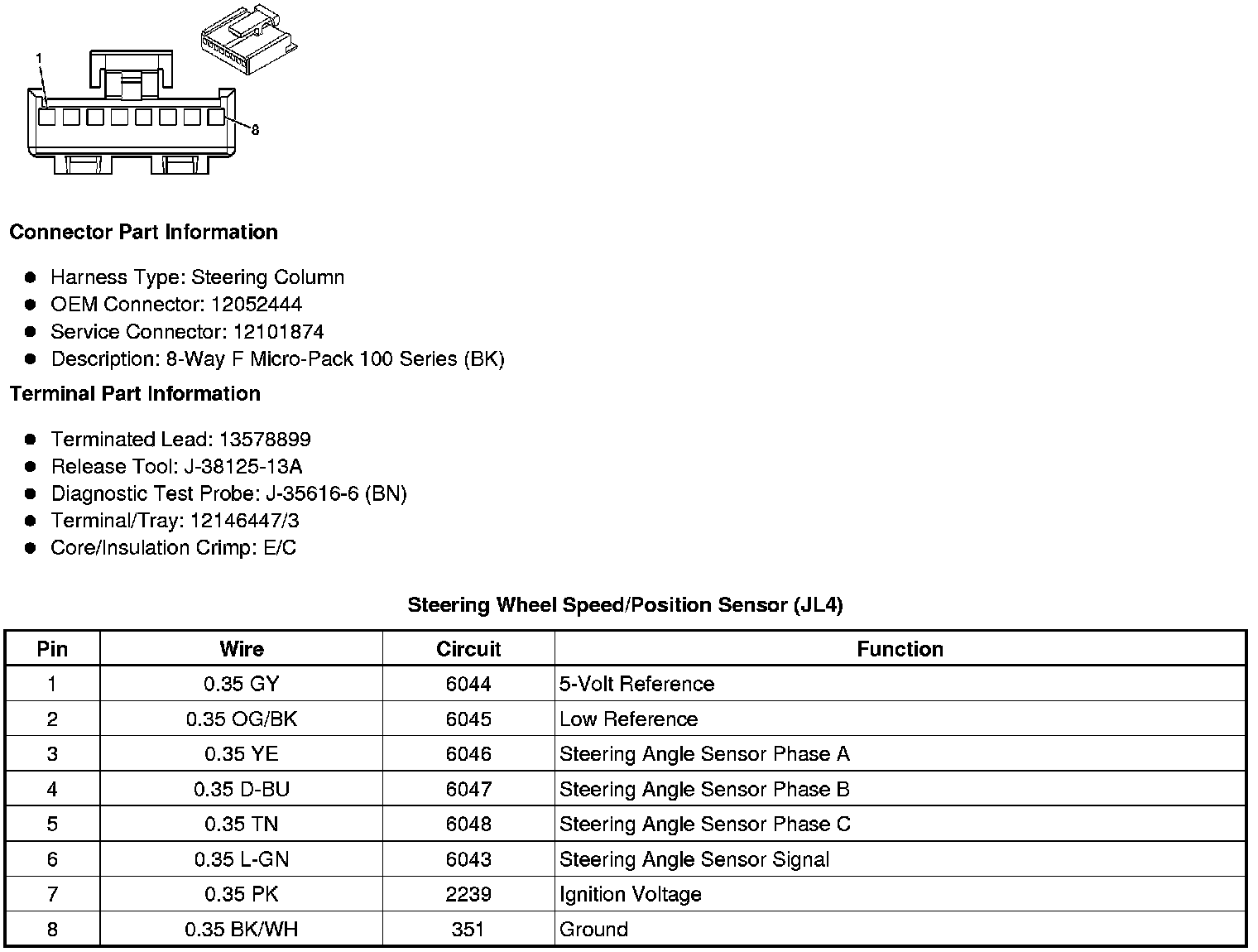

Component Connector End Views

Steering Wheel Speed/Position Sensor (JL4)
