Impact Sensor: Diagrams




Component Connector End Views

Inflatable Restraint Front End Sensor





Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)

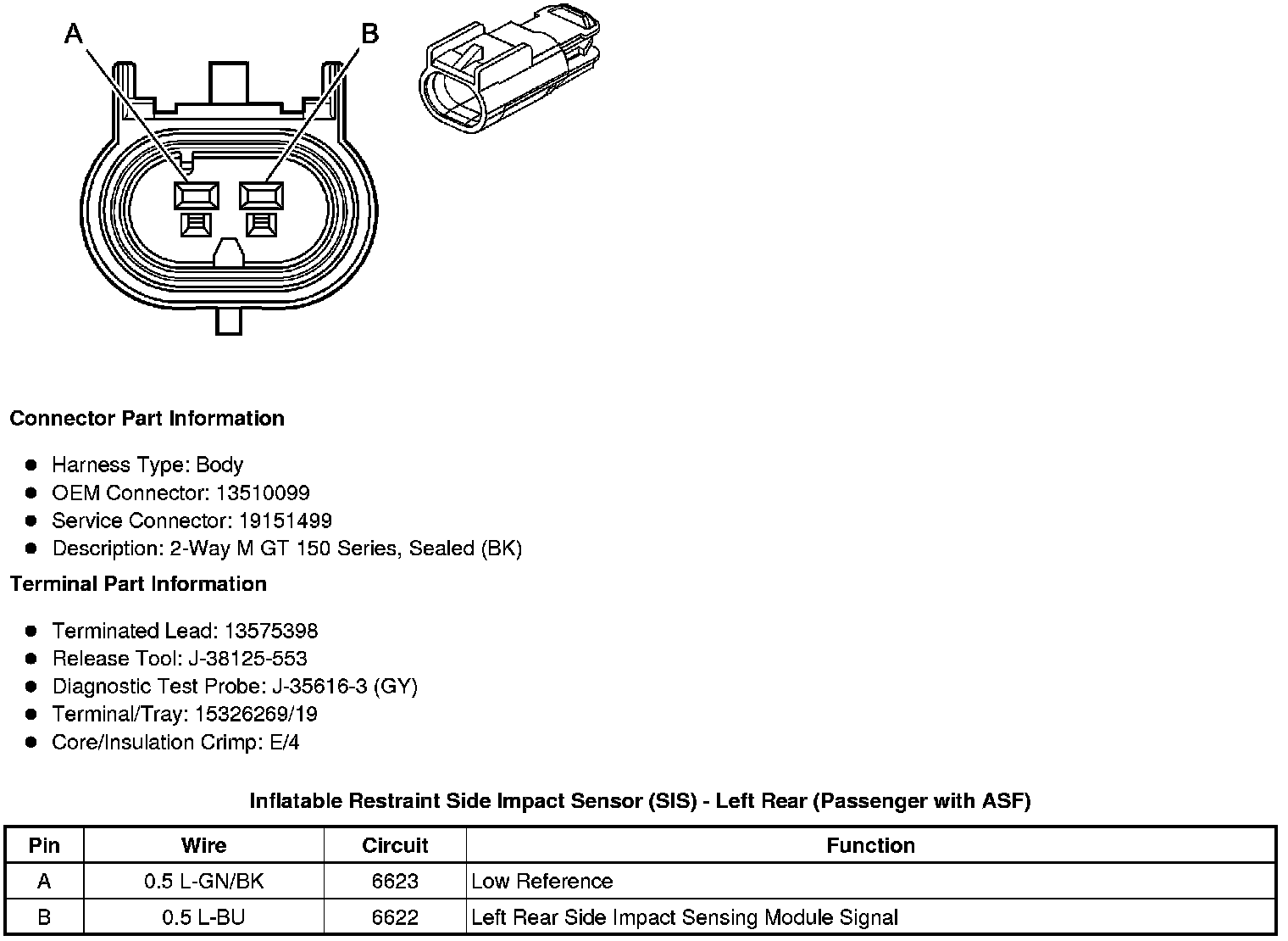

Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (Passenger with ASF)





Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)

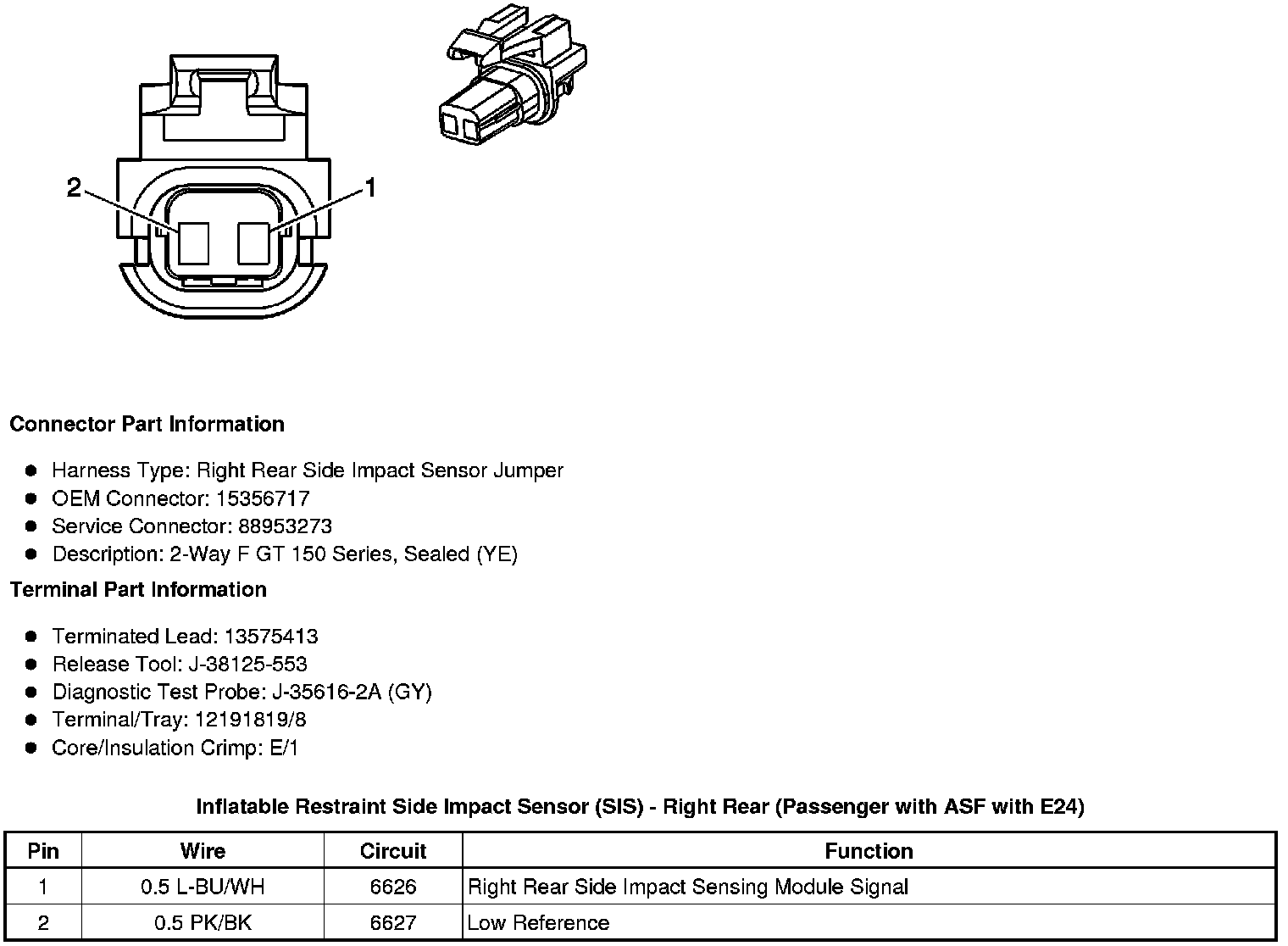

Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Passenger with ASF with E24)

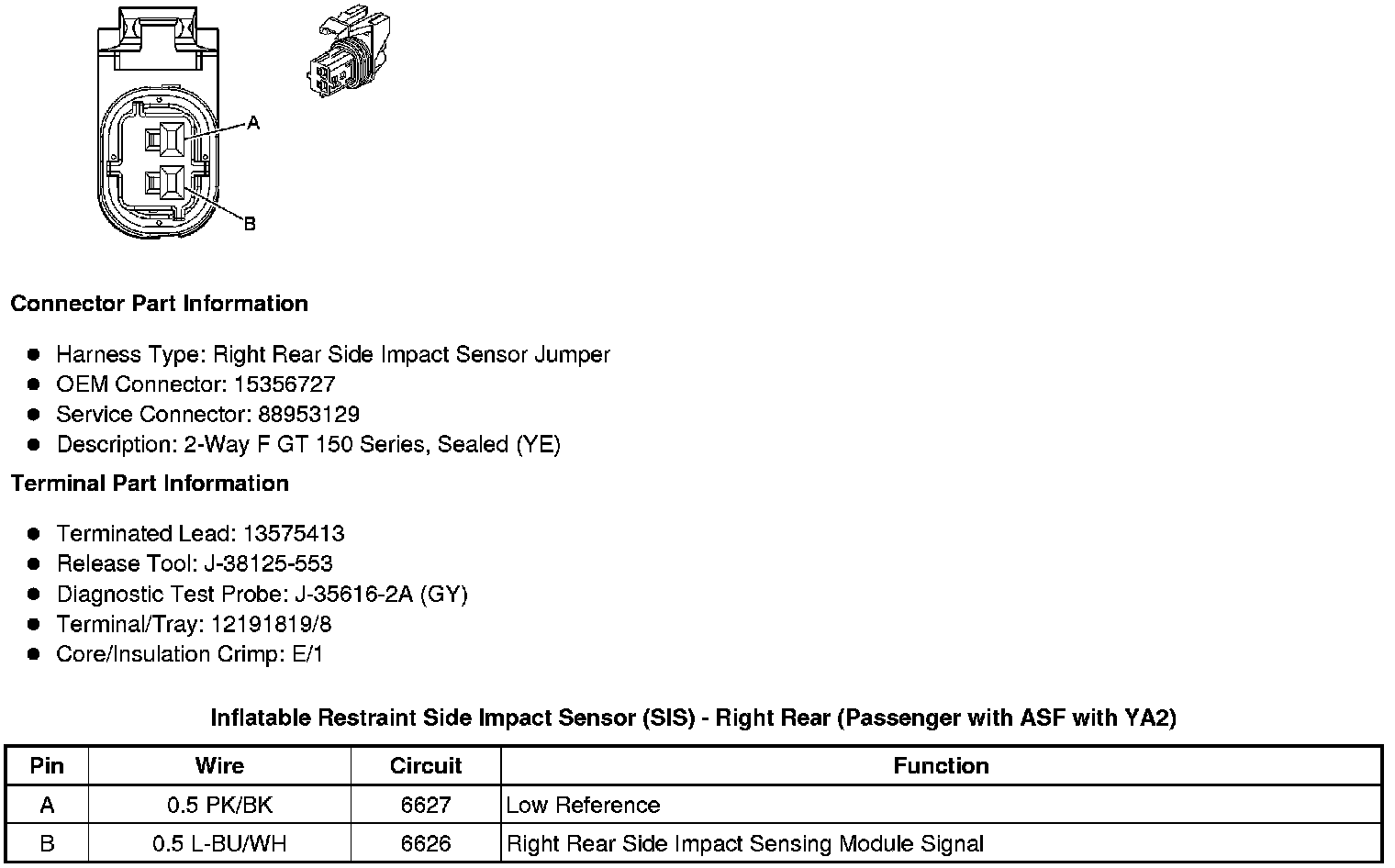

Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Passenger with ASF with YA2)

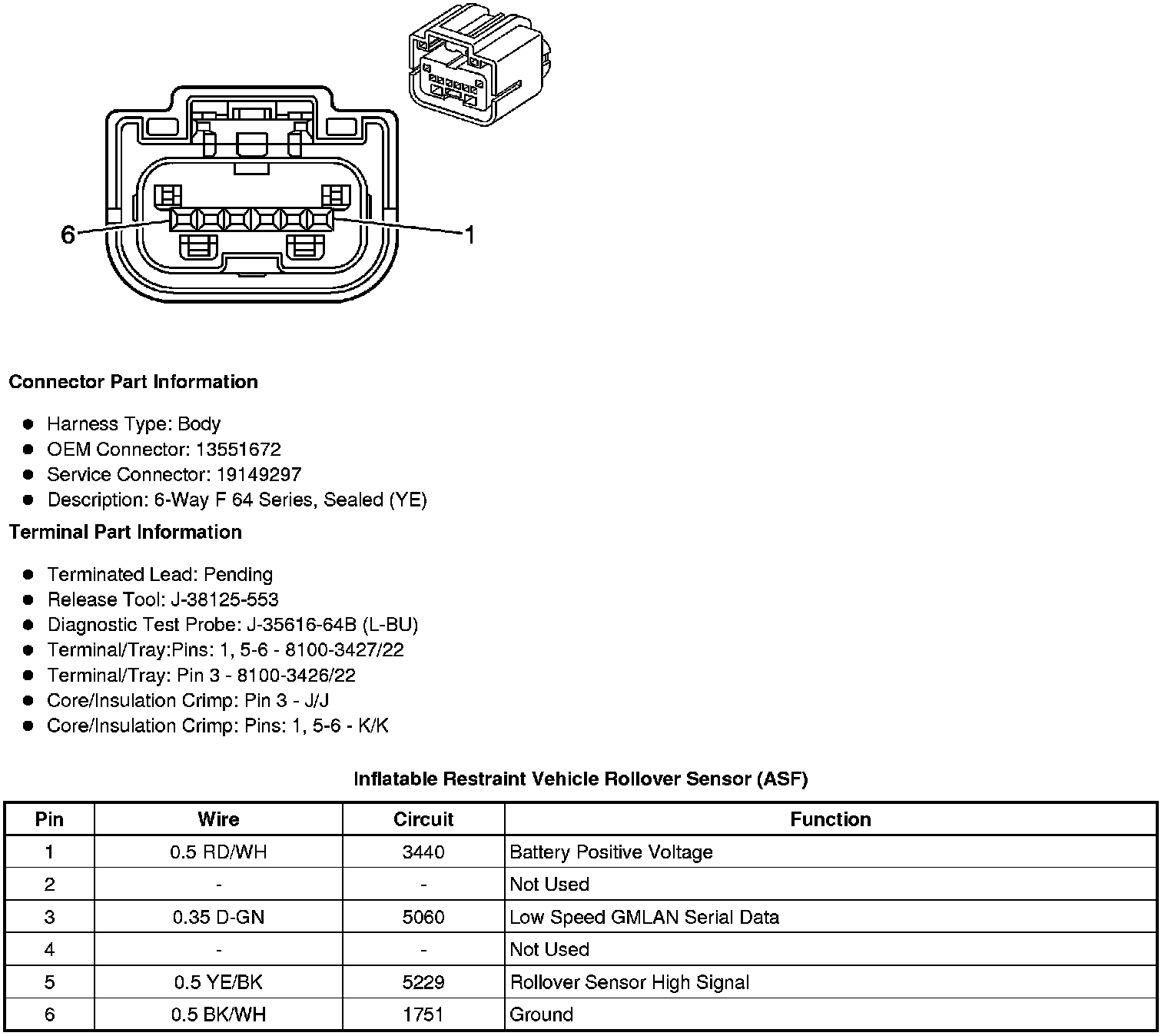

Inflatable Restraint Vehicle Rollover Sensor (ASF)
