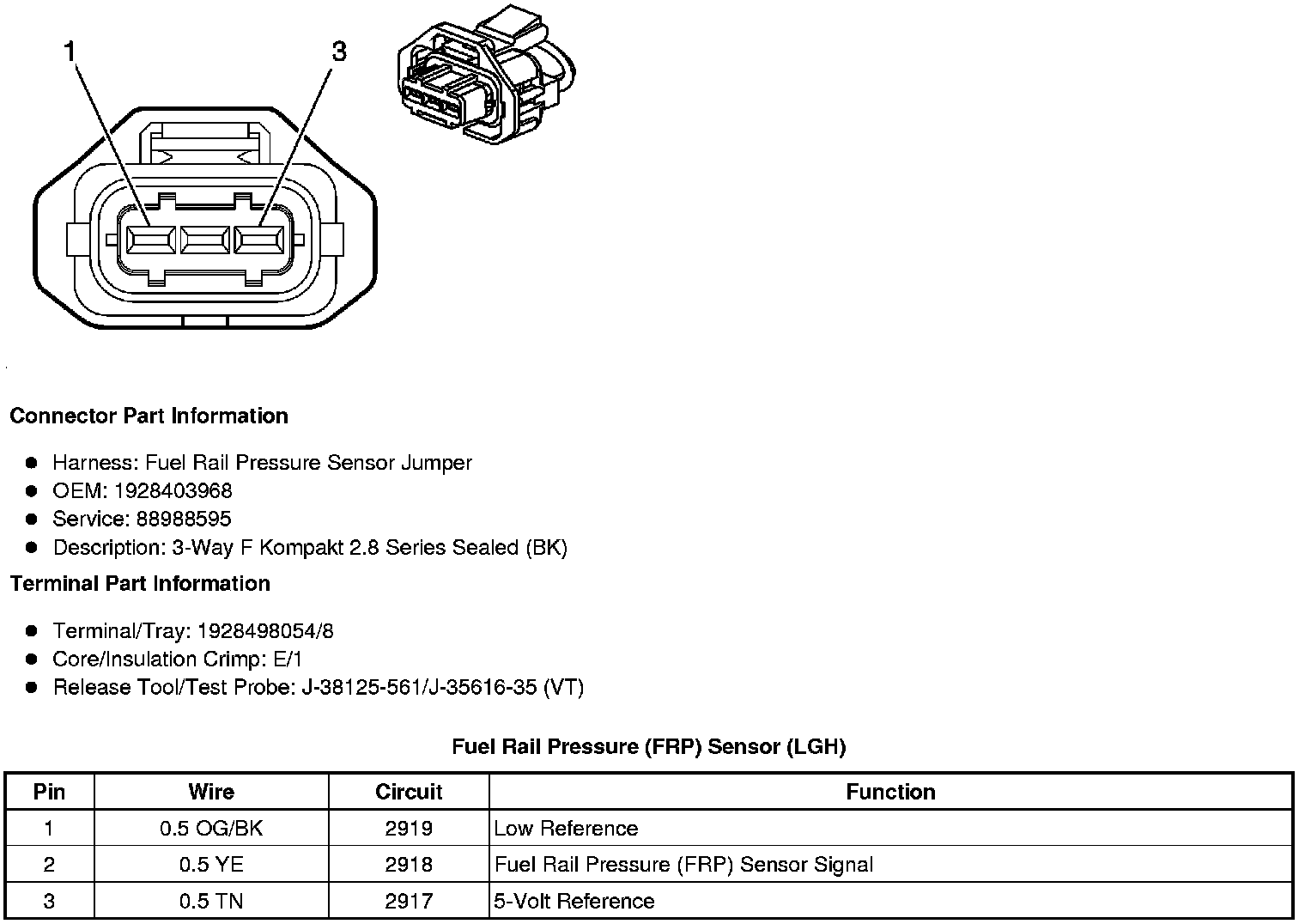

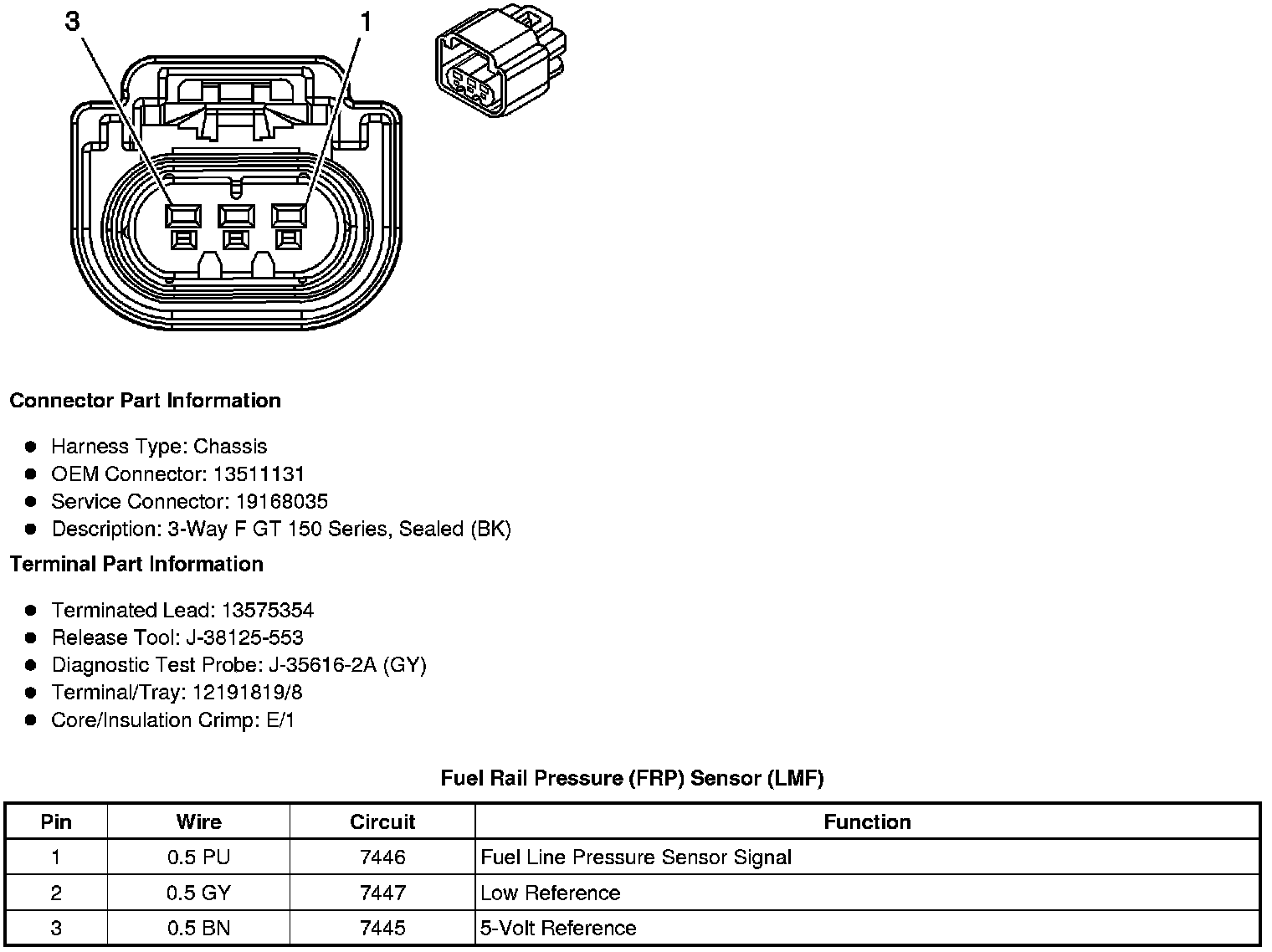

Home >> Chevrolet >> 2011 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Sensors and Switches - Fuel Delivery and Air Induction >> Fuel Pressure Sensor/Switch >> Diagrams >> Fuel Rail Pressure (FRP) Sensor
