Rear Door Latch: Diagrams




Component Connector End Views

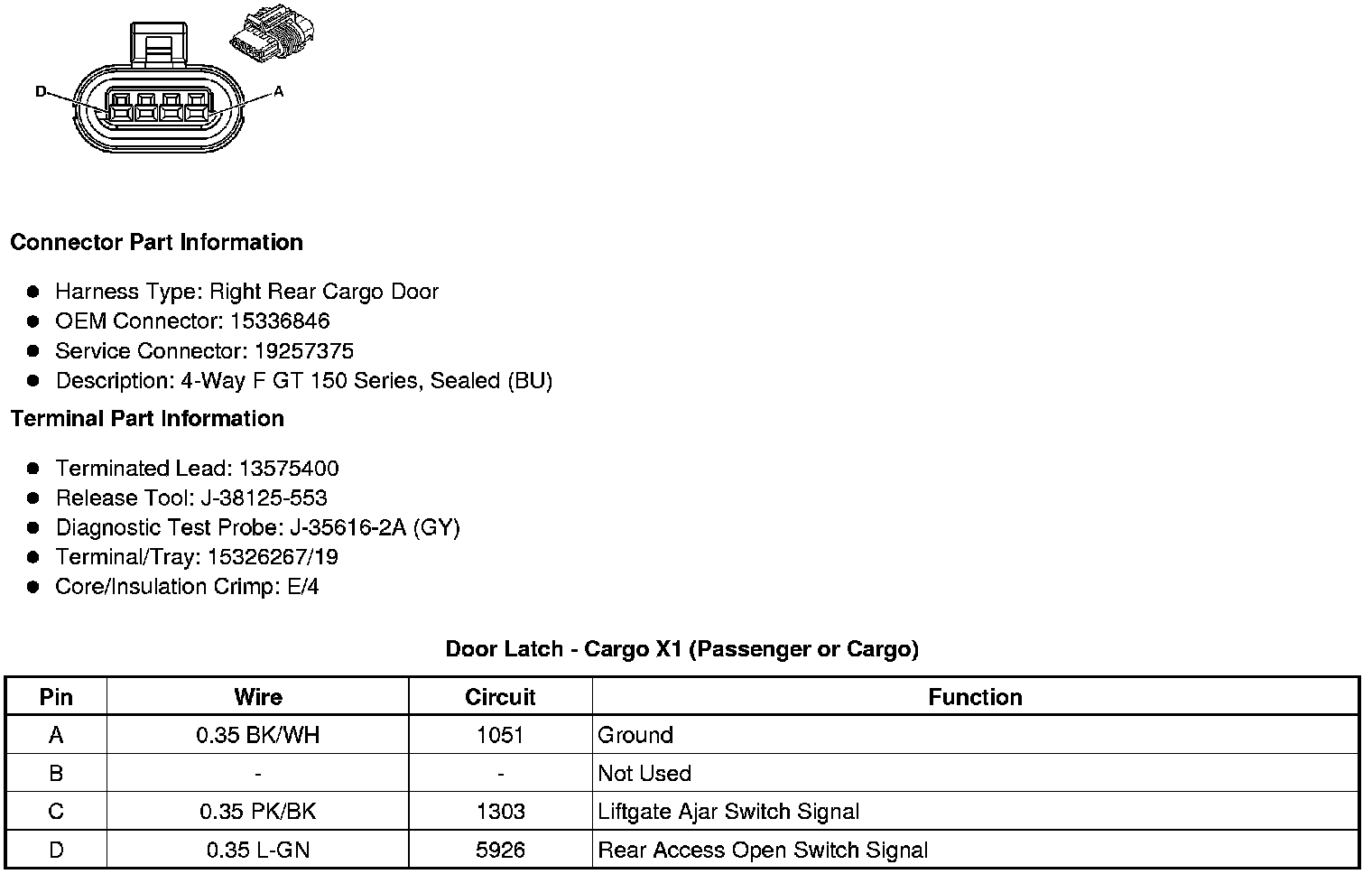

Door Latch - Cargo X1 (Passenger or Cargo)





Door Latch - Cargo X2 (Passenger or Cargo)
