Auxiliary Cabin Heater: Locations

Wheels/Vehicle Underbody Component Views

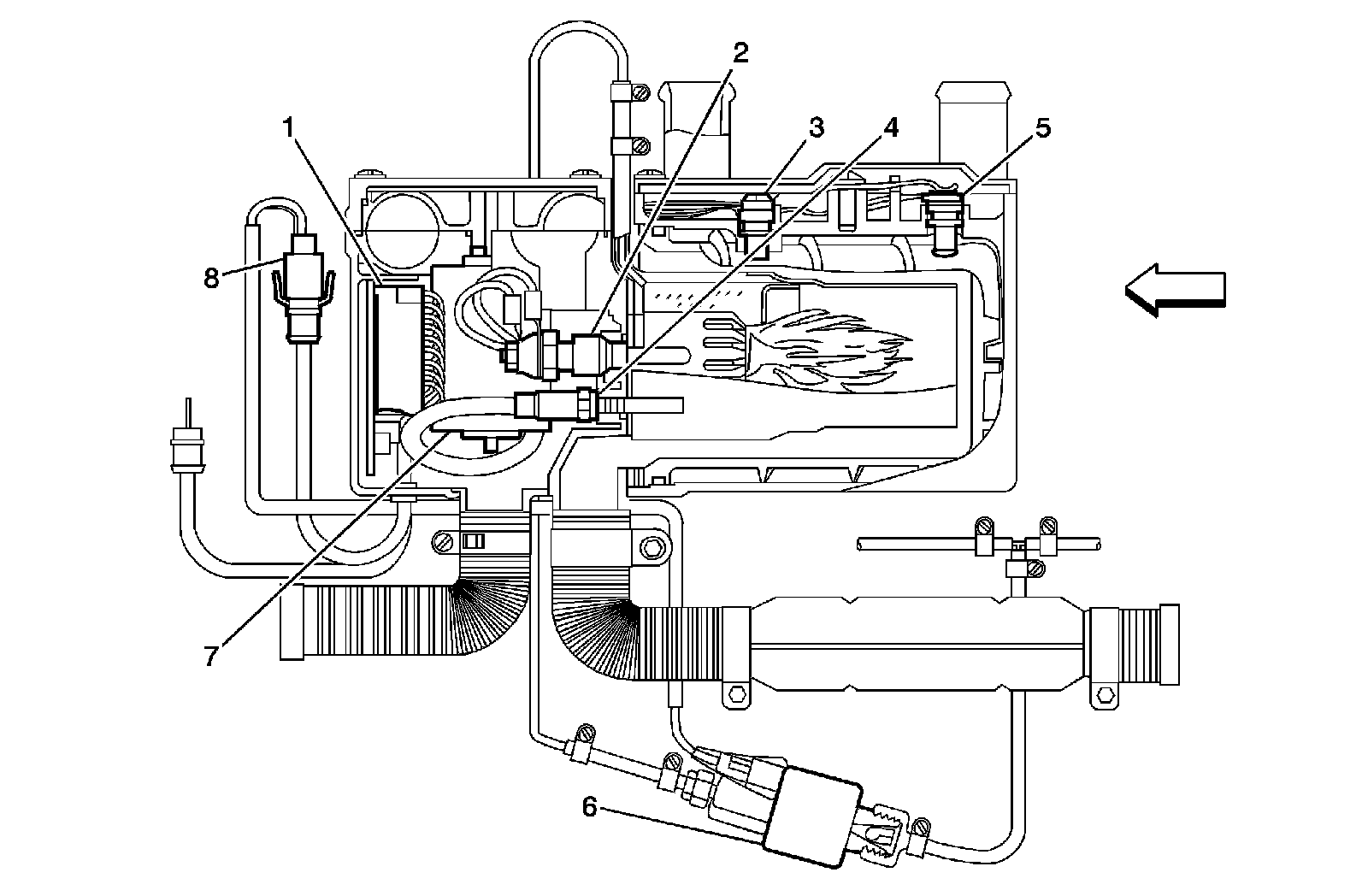

Coolant Heater (K08)




1 - Coolant Heater Control Module
2 - Coolant Heater Glow Plug
3 - Coolant Heater Air Temperature Sensor (Coolant Heater Temperature Sensor)
4 - Coolant Heater Combustion Sensor
5 - Coolant Heater Air Temperature Sensor (Coolant Heater Overheat Temperature Sensor)
6 - Coolant Heater Fuel Pump
7 - Coolant Heater Blower Motor
8 - Coolant Heater Connector
