Charge Air Cooler Outlet Temperature Sensor (LGH)
Charge Air Cooler Outlet Temperature Sensor (LGH)
Component Connector End Views

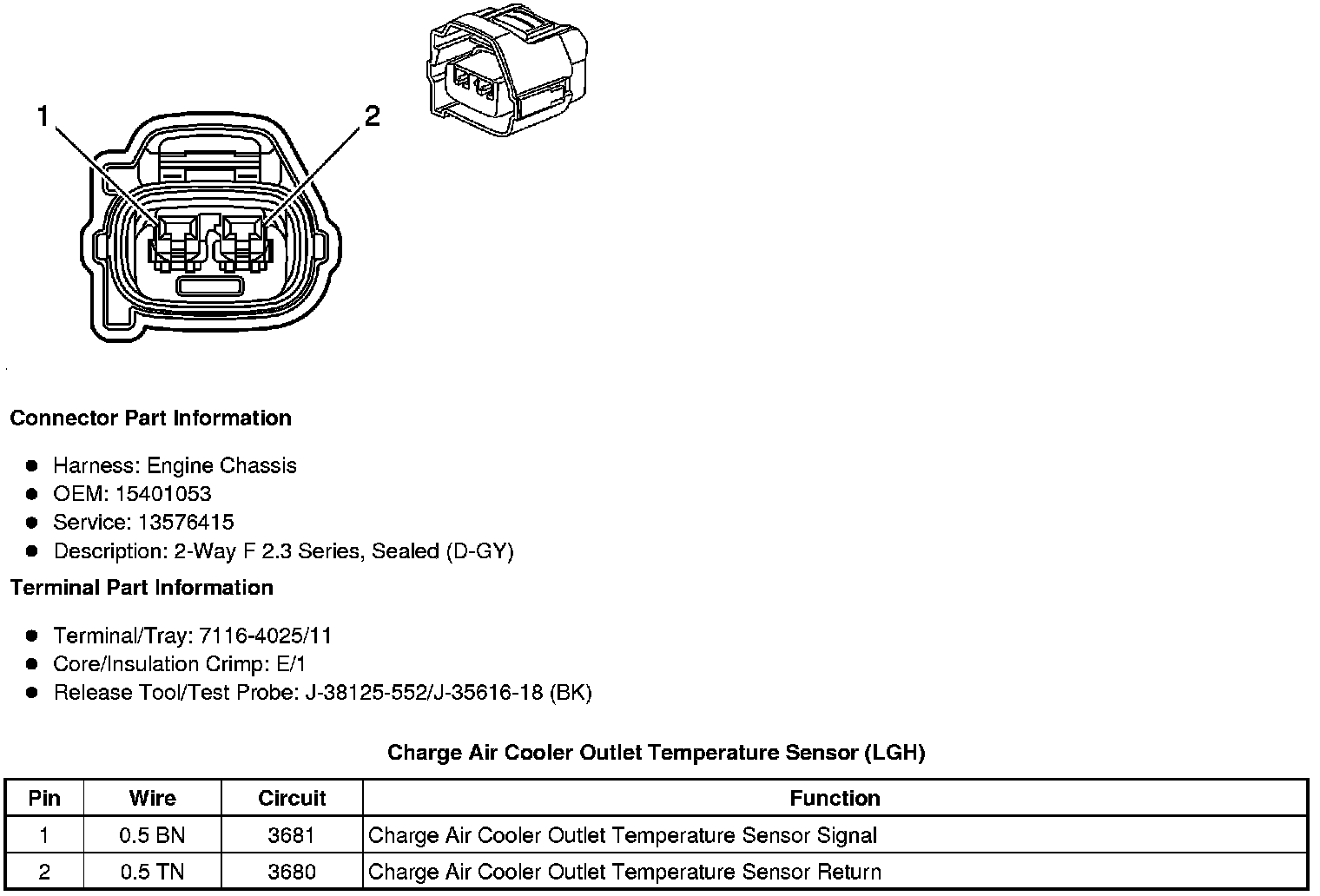

Charge Air Cooler Outlet Temperature Sensor (LGH)
