Wiring Harness Routing Views

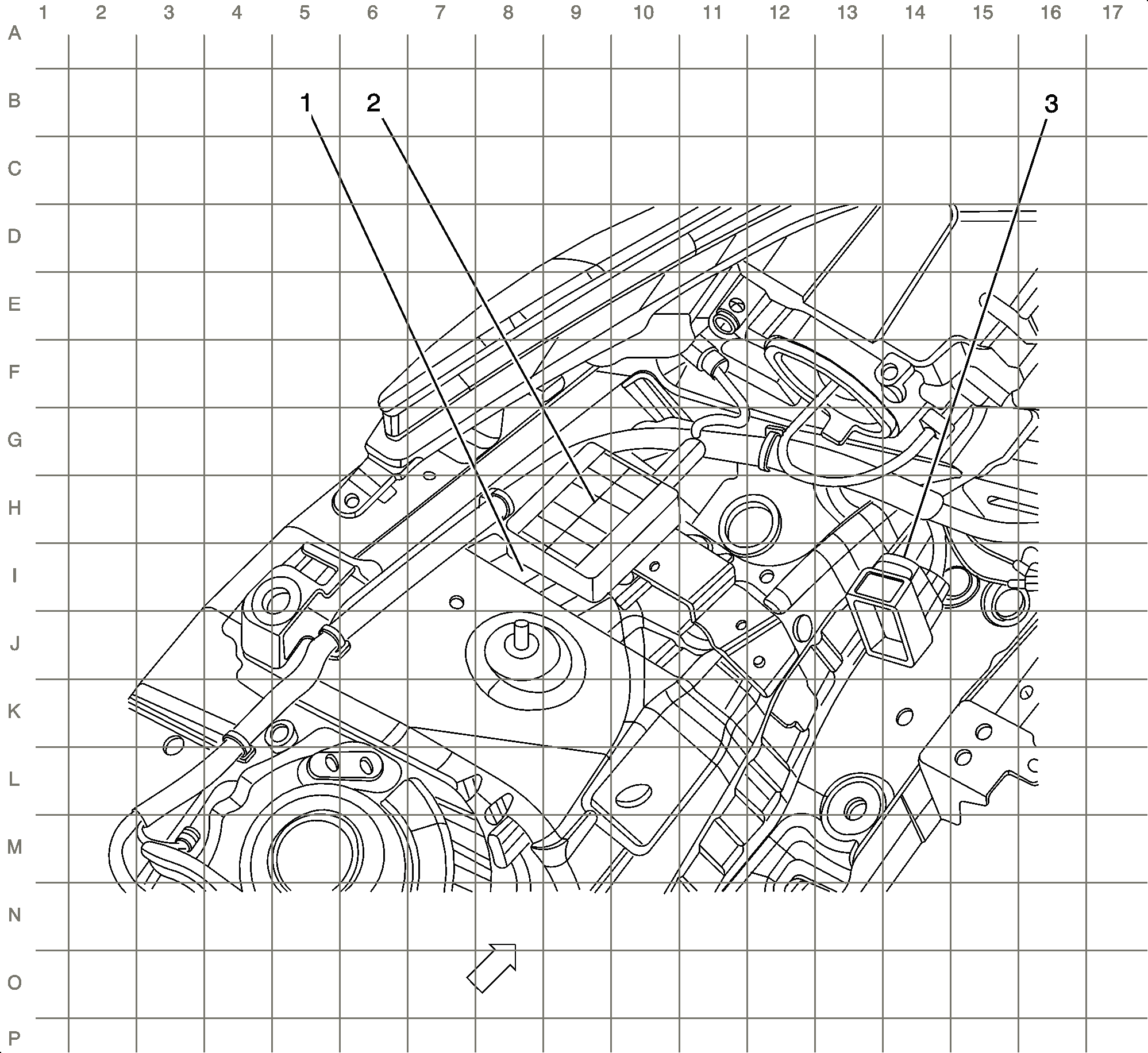

Fig 1: Forward Lamp Harness Routing 1 of 2
GM2205989Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X50A Fuse Block - Underhood
2 X1 Fuse Block - Underhood X1
3 X100 Body Harness and Body Front Harness

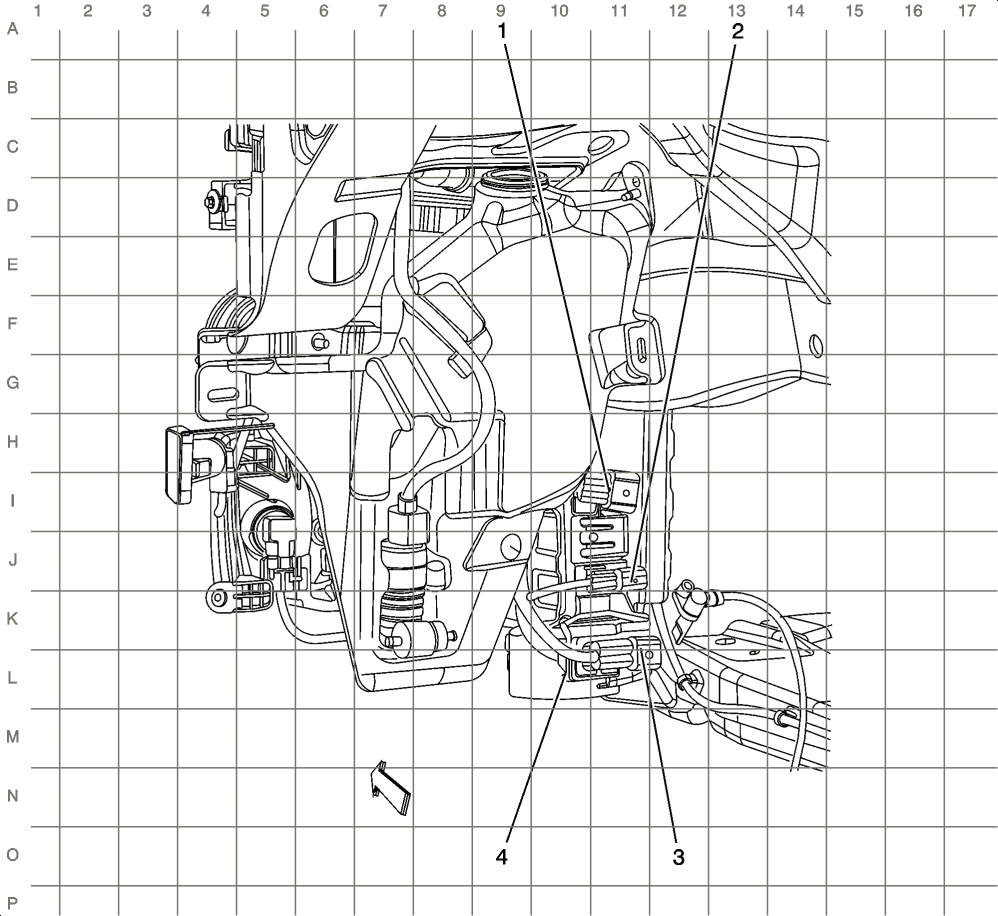

Fig 2: Forward Lamp Harness Routing 2 of 2
GM2205992Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X104 Body Front Harness and Engine Cooling Harness
2 X103 Body Front Harness and Engine Cooling Harness
3 X101 Body Front Harness and Engine Cooling Harness
4 X102 Body Front Harness and Engine Cooling Harness

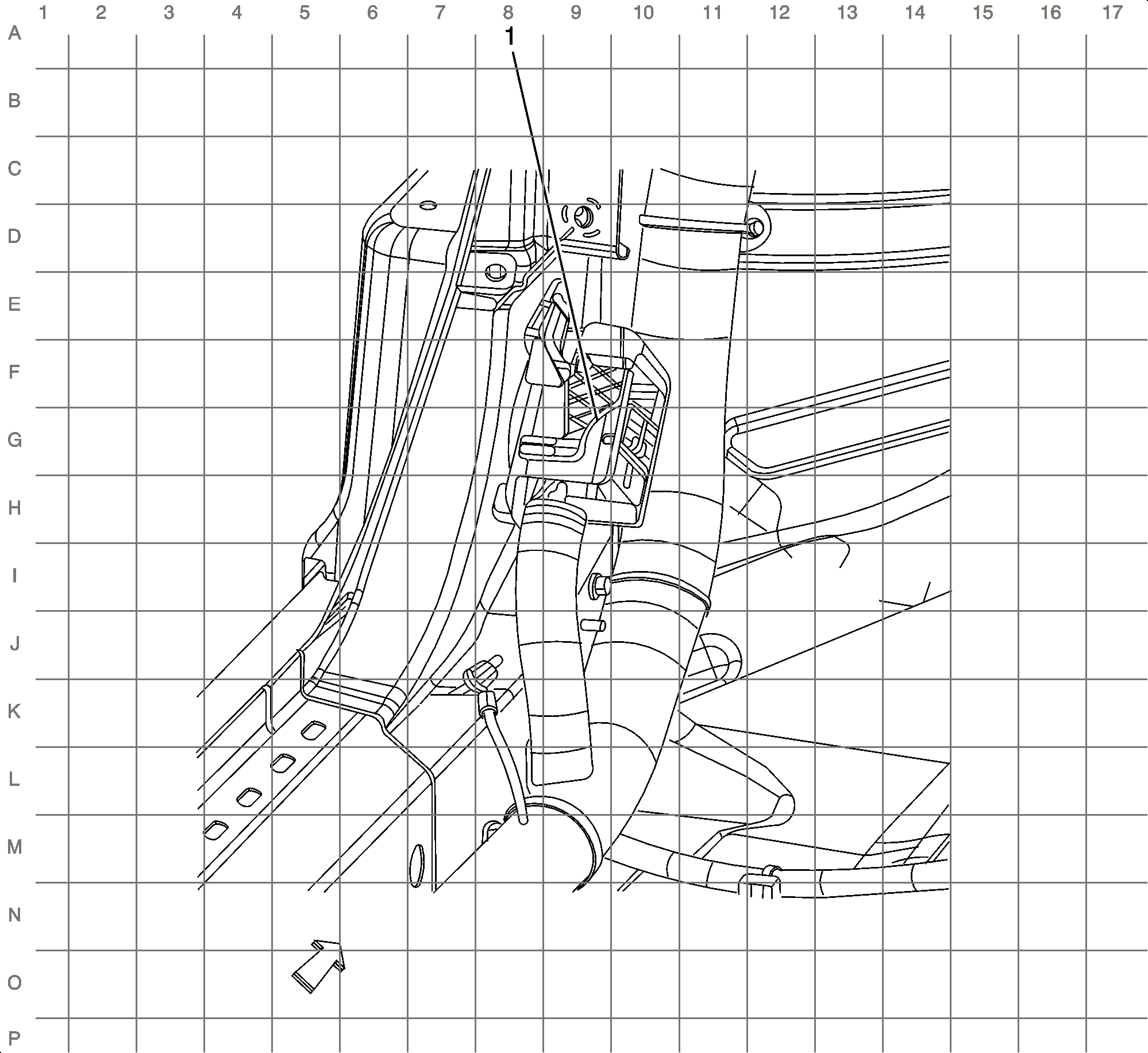

Fig 3: Body Harness Routing 1 of 10
GM2205995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X200 Body Harness and Instrument Panel Harness

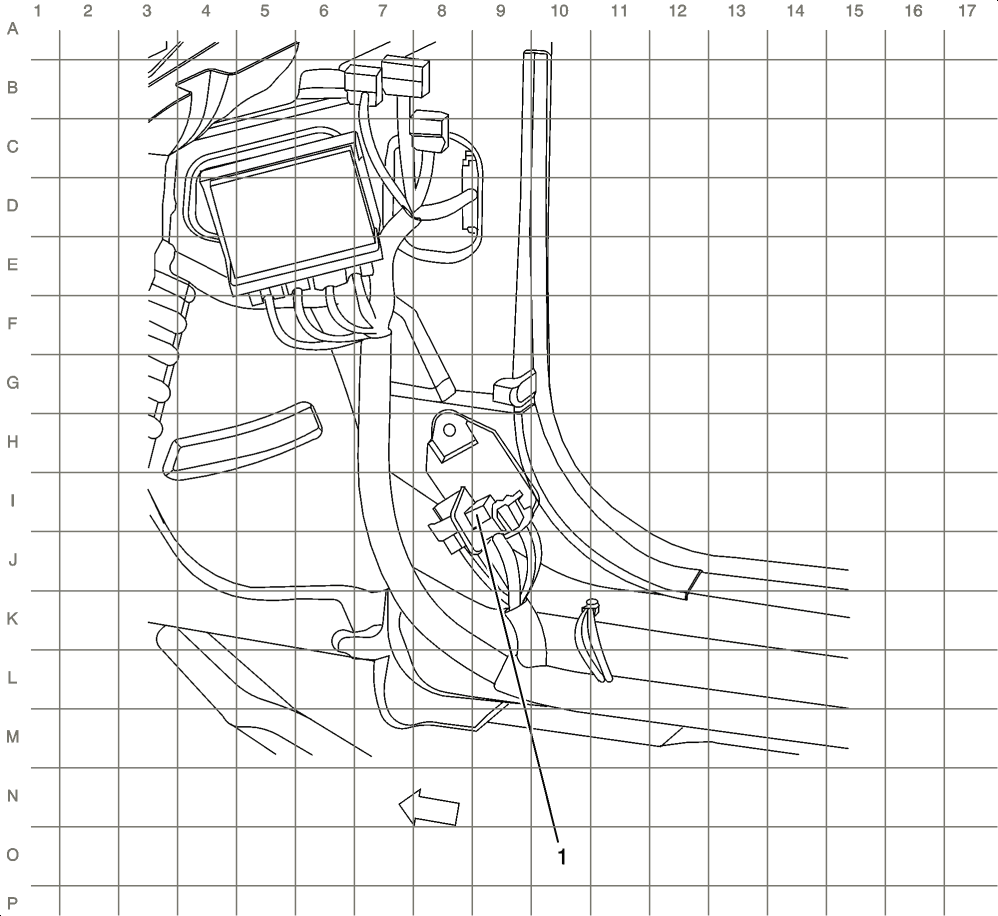

Fig 4: Body Harness Routing 2 of 10
GM2206005Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X205 Body Harness & Instrument Panel Harness

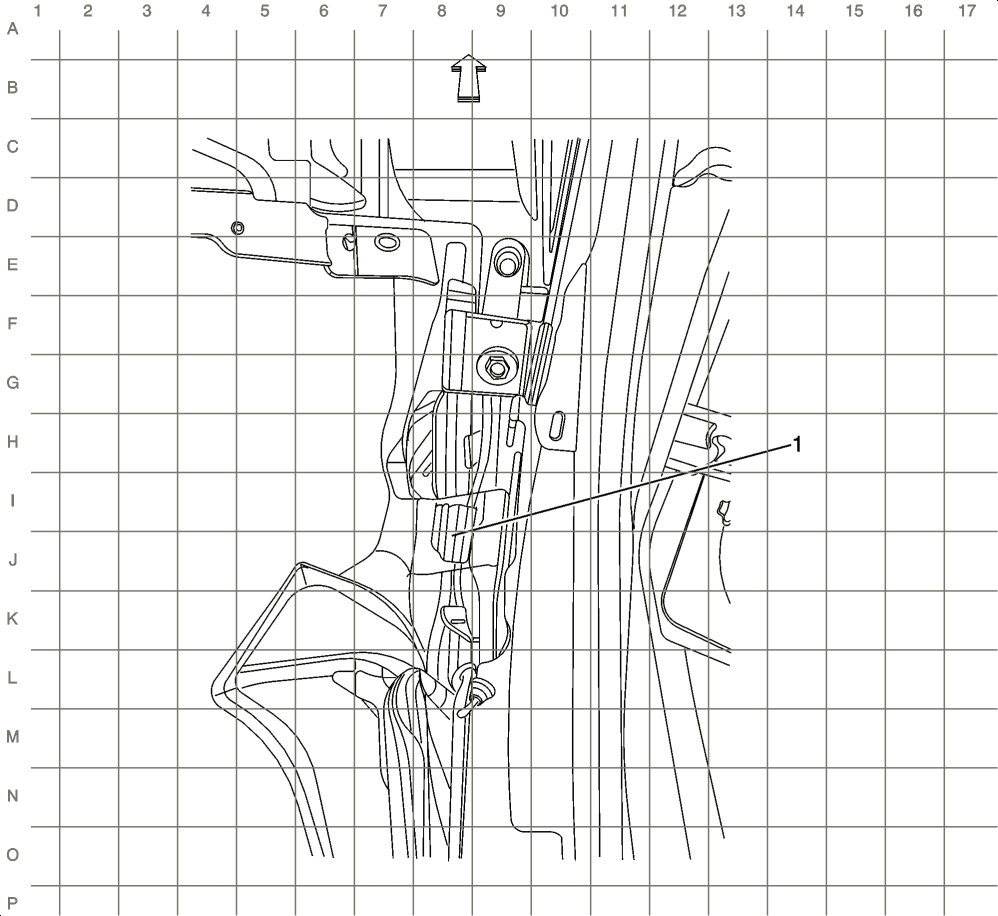

Fig 5: Body Harness Routing 3 of 10
GM2206012Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X206 Body Harness and Instrument Panel Harness

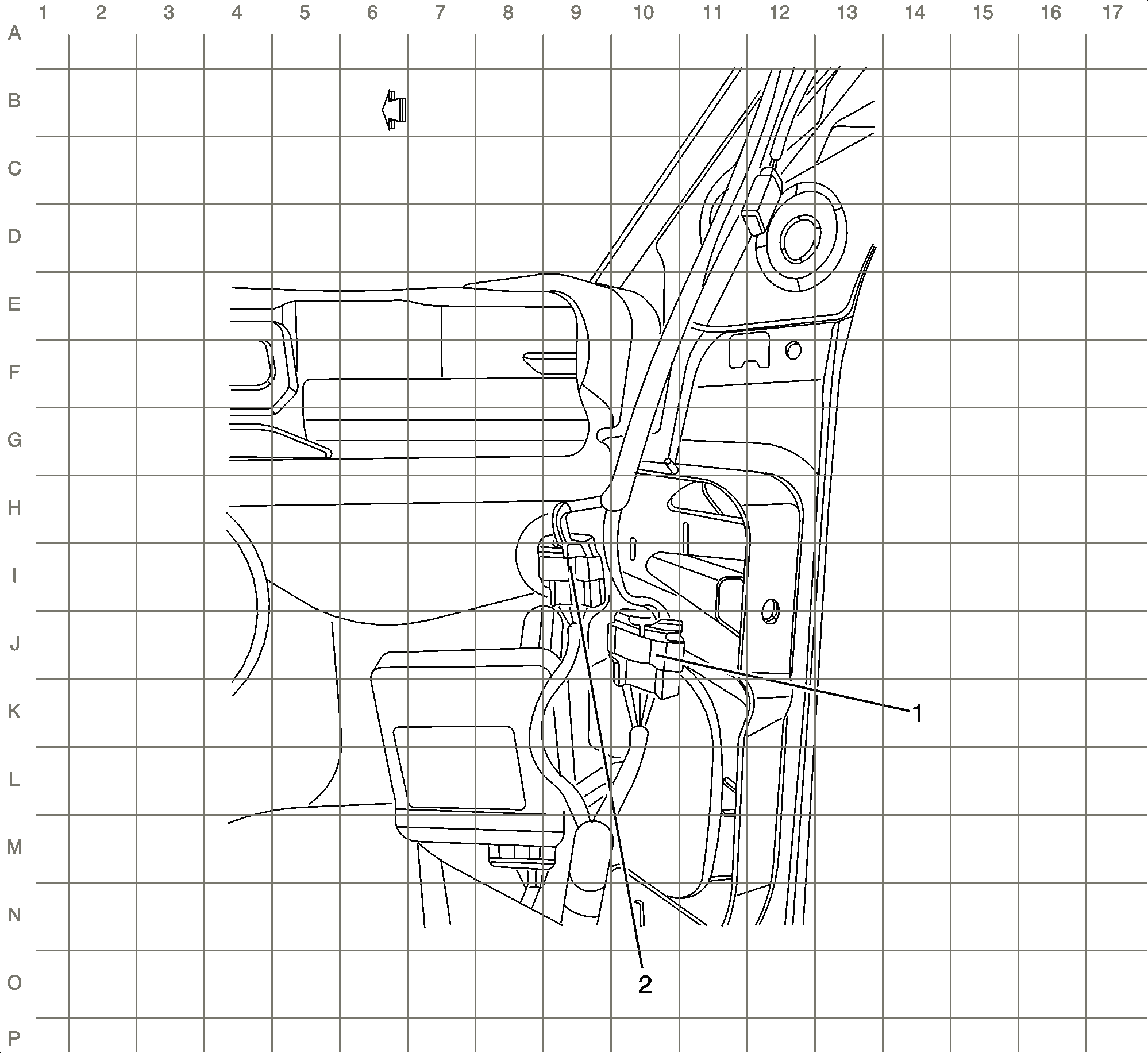

Fig 6: Body Harness Routing 4 of 10
GM2206036Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X211 Body Harness and Roof Harness
2 X210 Body Harness and Roof Harness

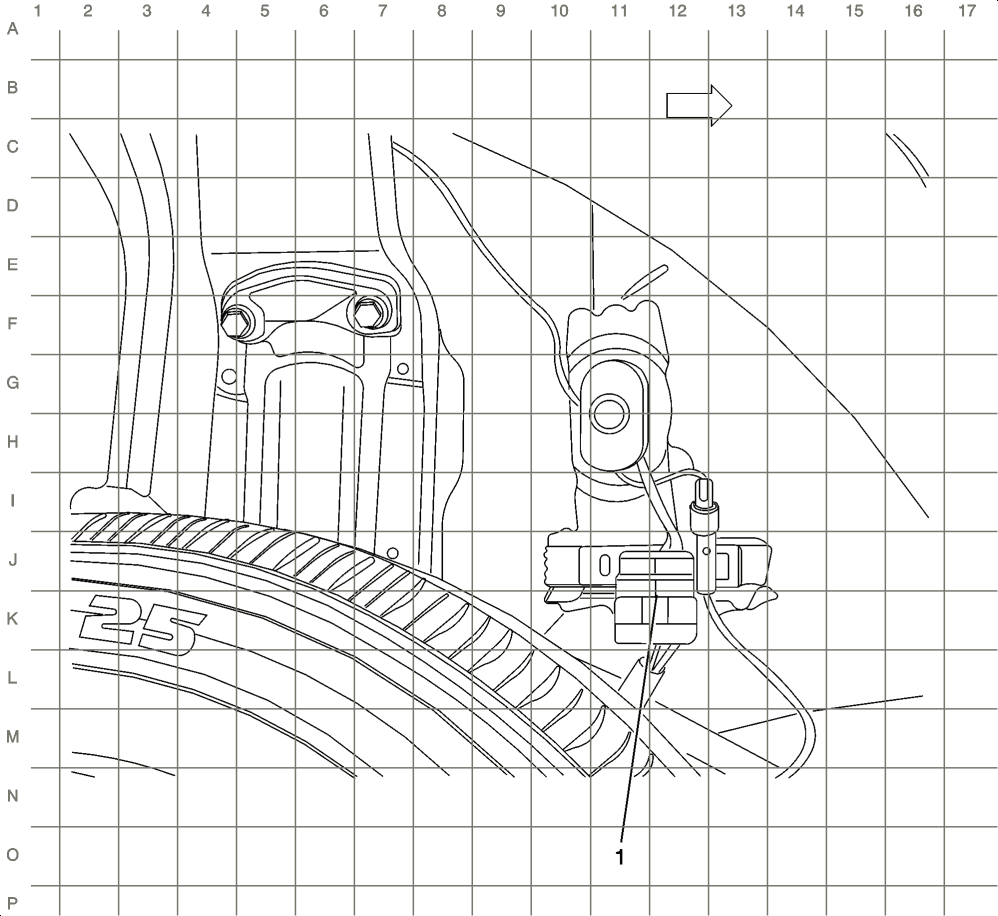

Fig 7: Body Harness Routing 5 of 10
GM2206004Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X401 Body Harness and Fuel Tank Harness

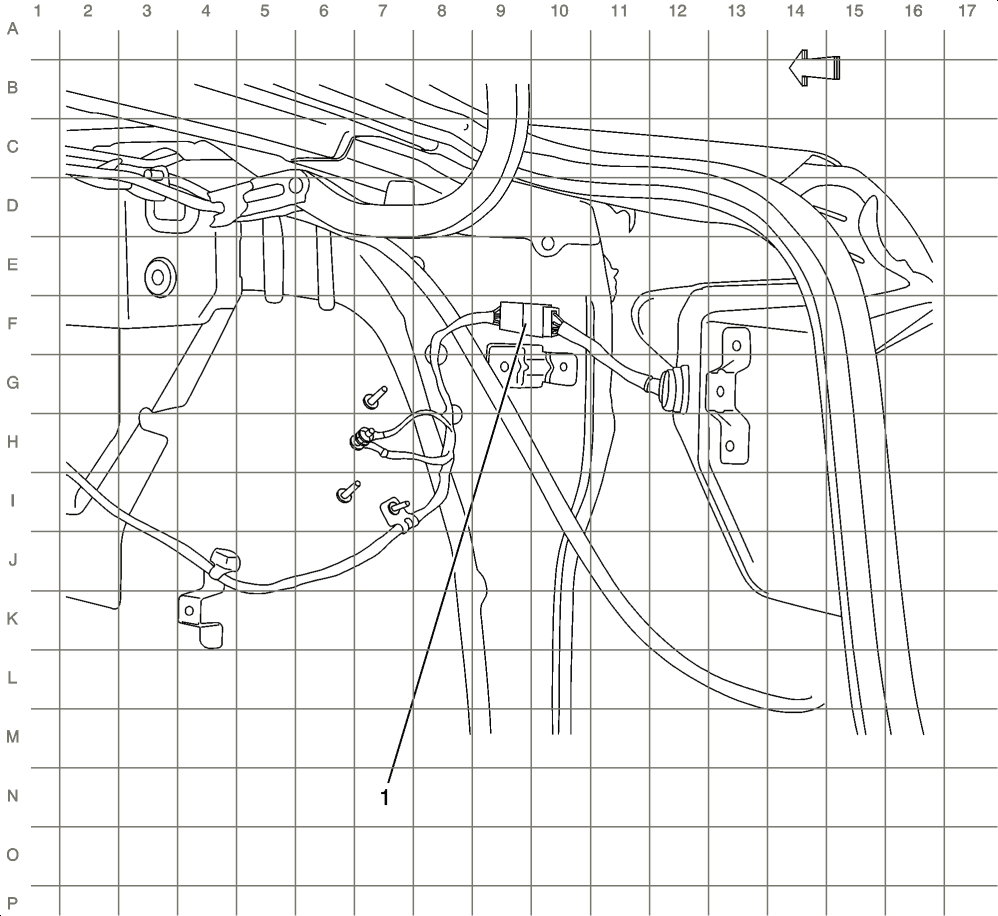

Fig 8: Body Harness Routing 6 of 10
GM2290613Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X913 Body Harness and Tail Lamp Right Harness

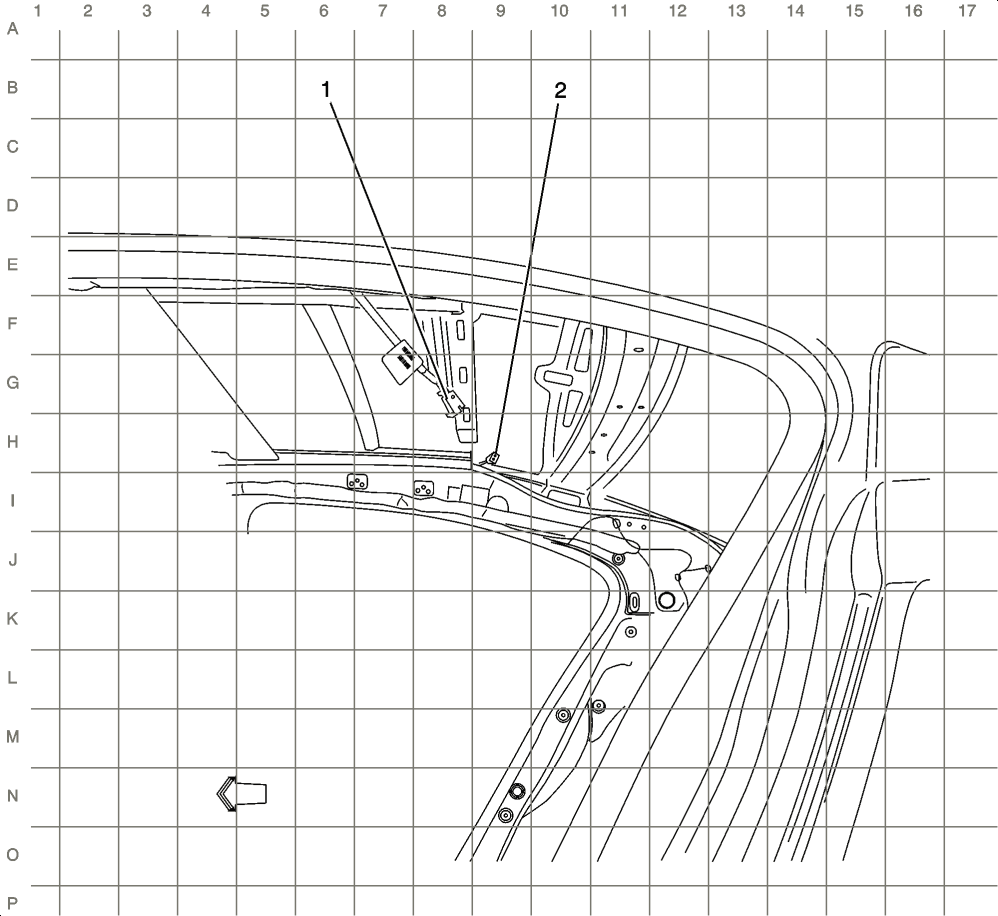

Fig 9: Body Harness Routing 7 of 10
GM2290614Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X320 Body Harness and Curtain Airbag Harness
2 X321 Body Harness and Curtain Airbag Harness

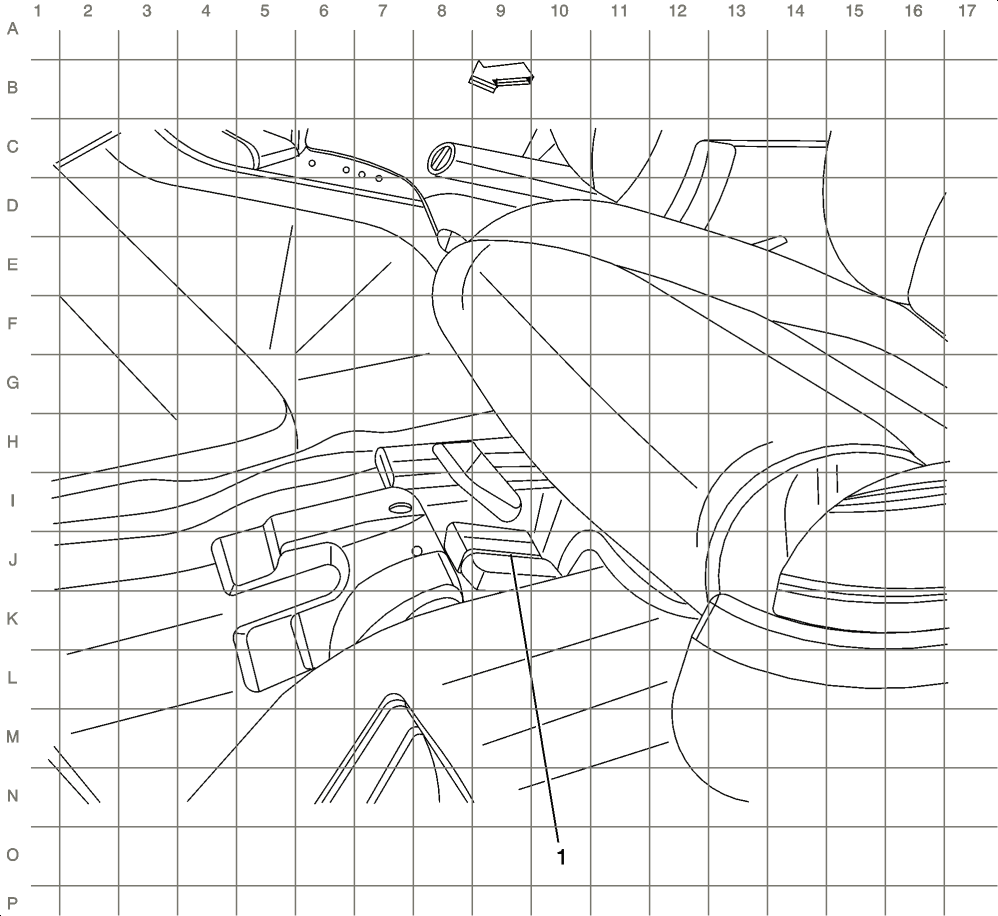

Fig 10: Body Harness Routing 8 of 10
GM2206000Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X310 Body Harnessand Driver Seat Harness

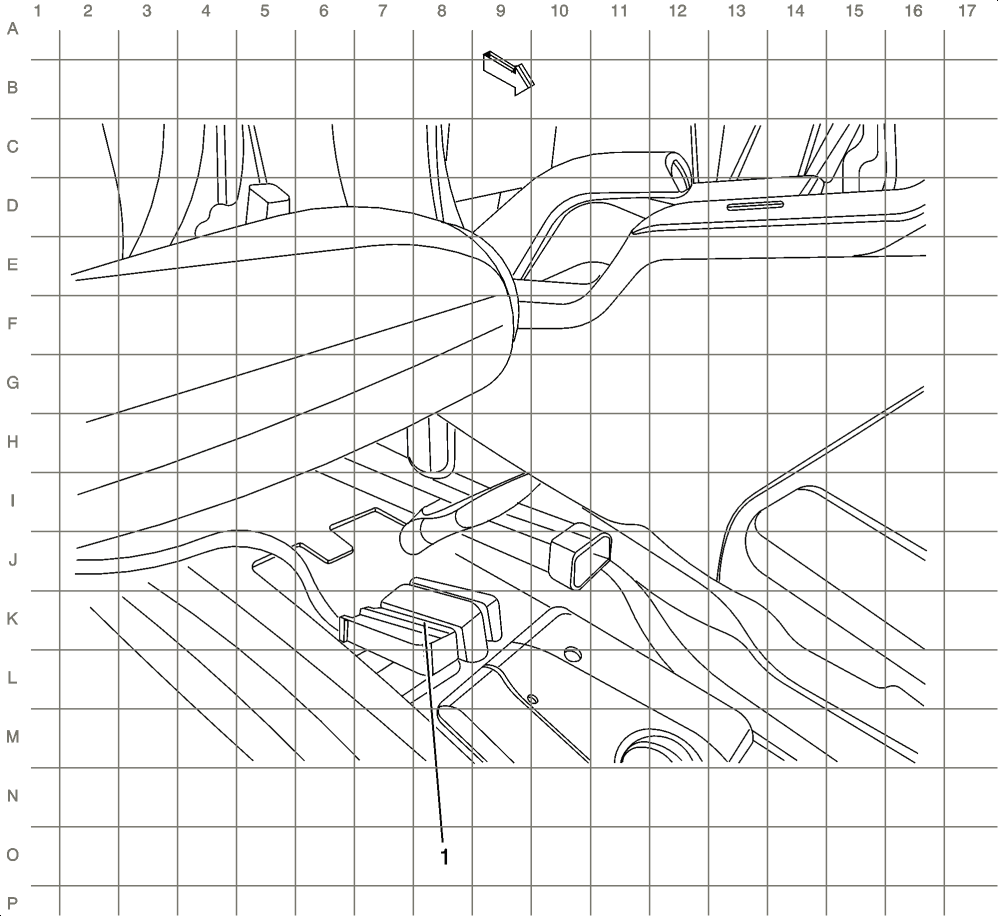

Fig 11: Body Harness Routing 9 of 10
GM2206002Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X315 Body Harnessand Front Passenger Seat Harness

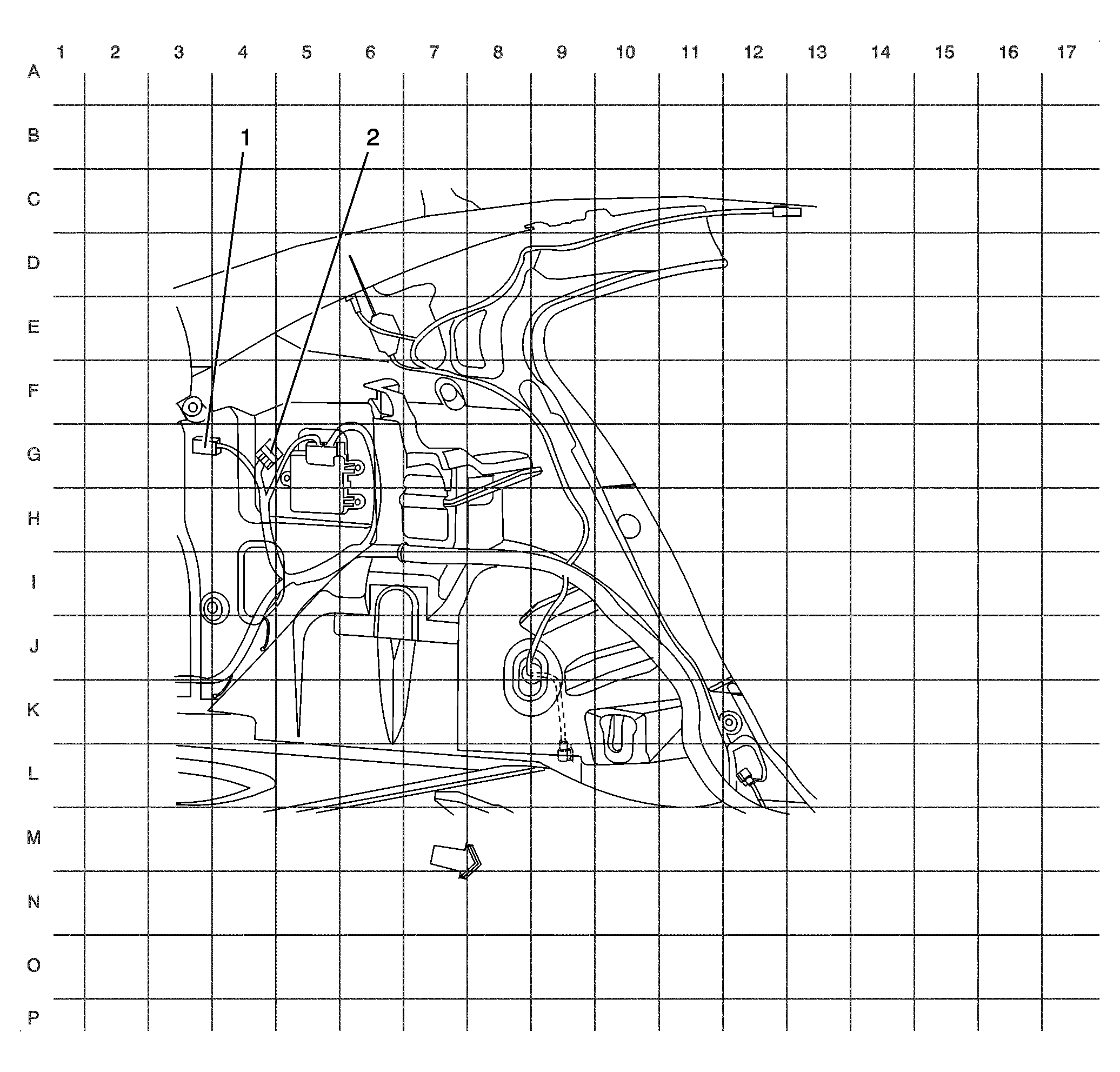

Fig 12: Body Harness Routing 10 of 10
GM2205996Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X912 Body Harness and Tail Lamp Left Harness
2 X900 Body Harness and Liftgate Harness

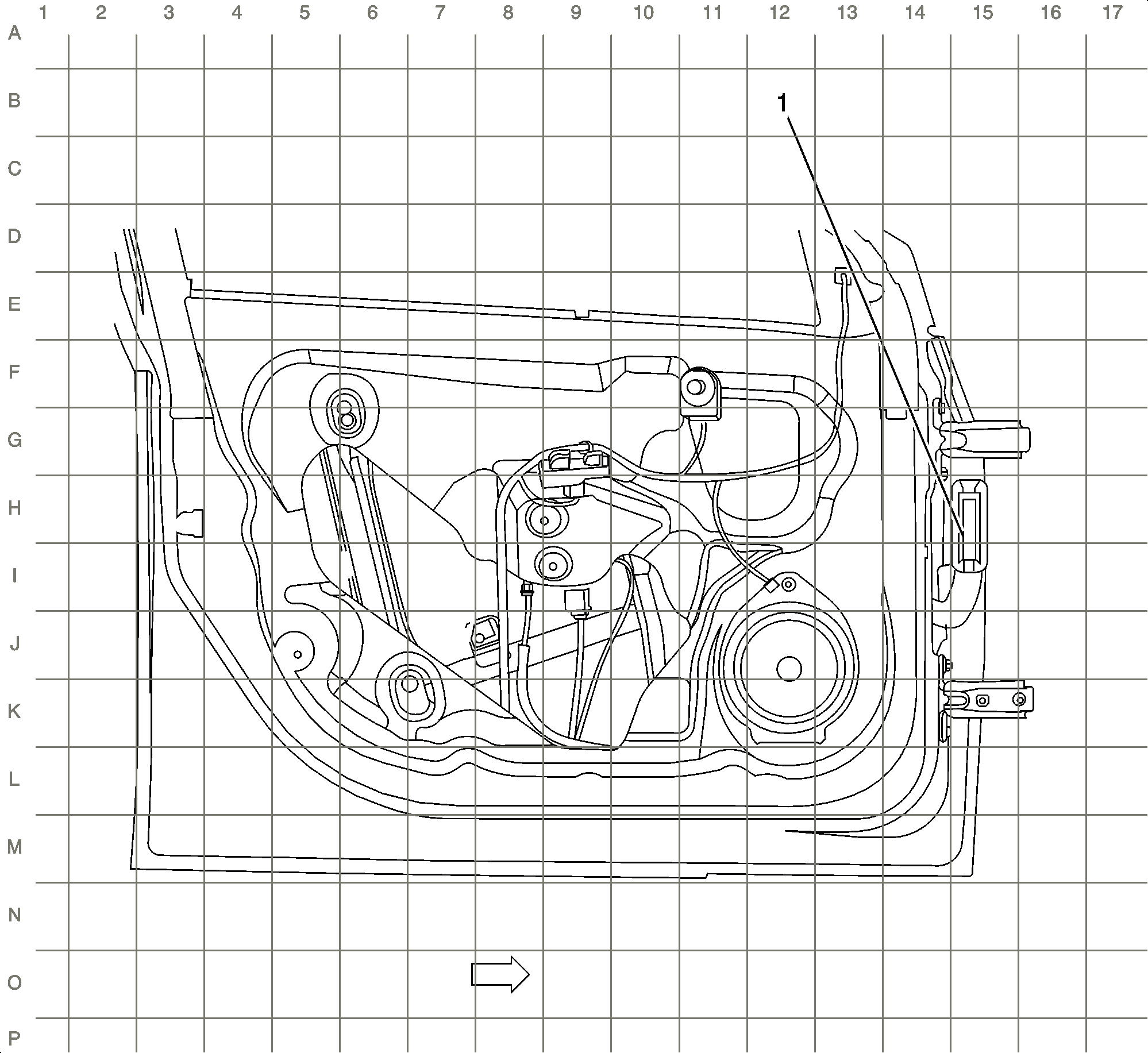

Fig 13: Driver Door Harness Routing
GM2206007Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X500 Body Harness and Driver Door Harness

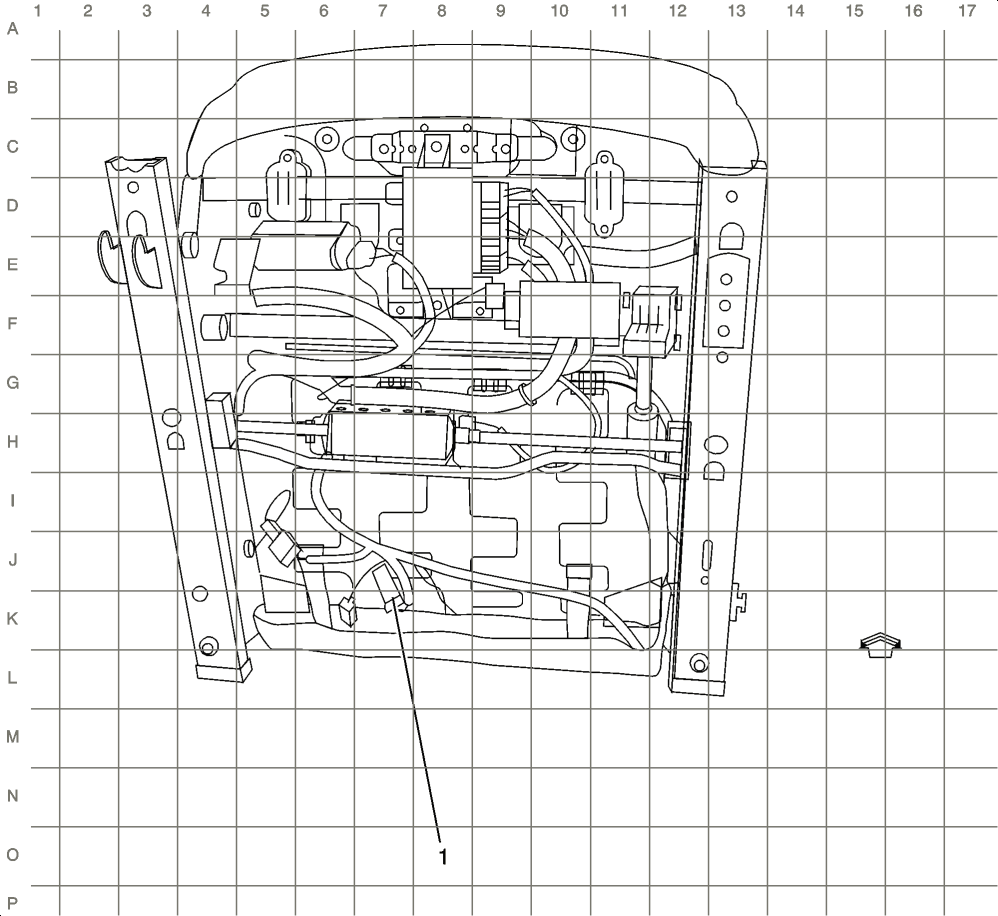

Fig 14: Driver Seat Harness Routing
GM2290616Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X311 Driver Seat Harness & Extension Seat Heating Element - Driver Harness

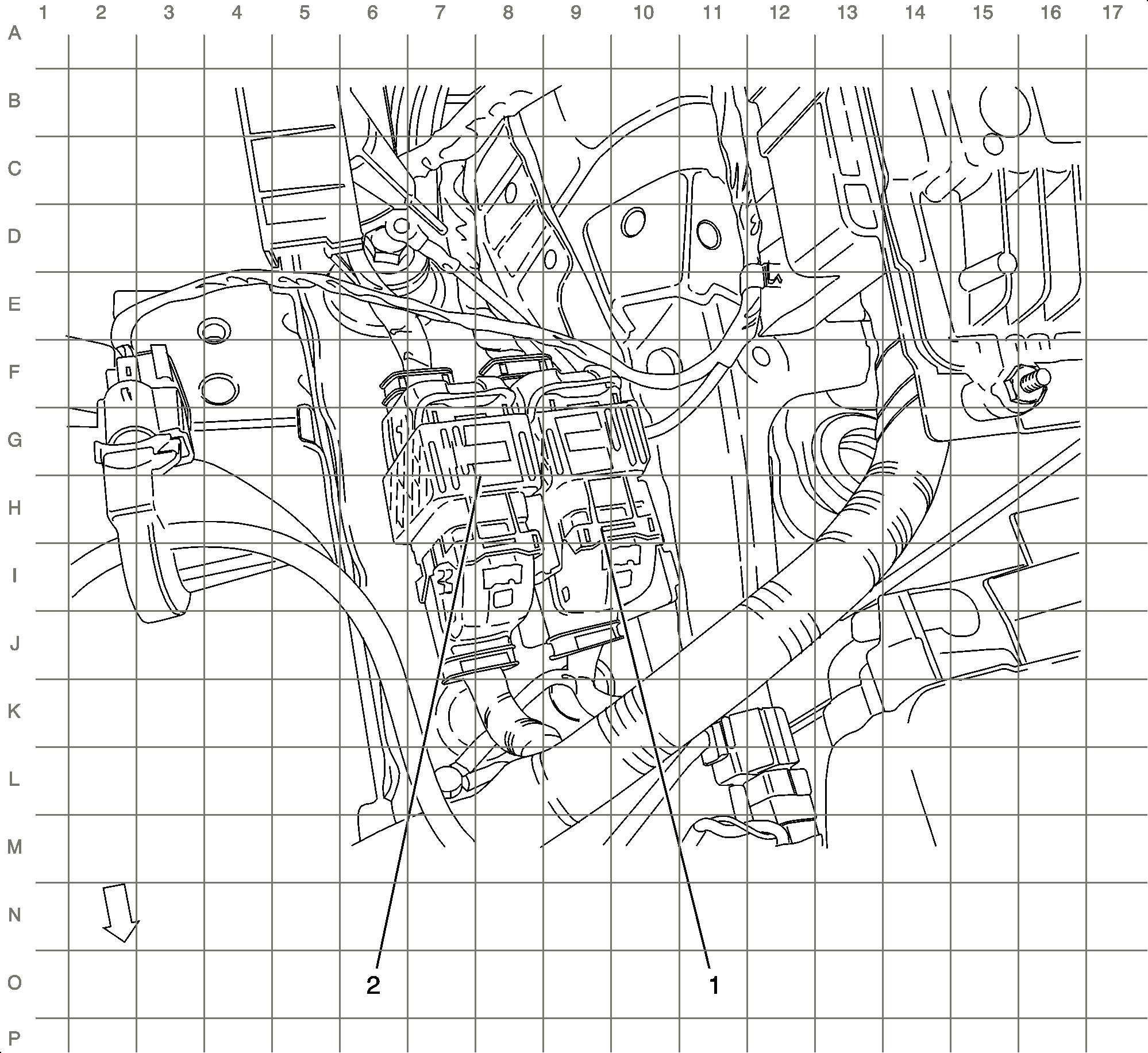

Fig 15: Engine Harness Routing
GM2290617Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X100 Body Harness and Body Front Harness
2 X110 Body Harness and Engine Harness

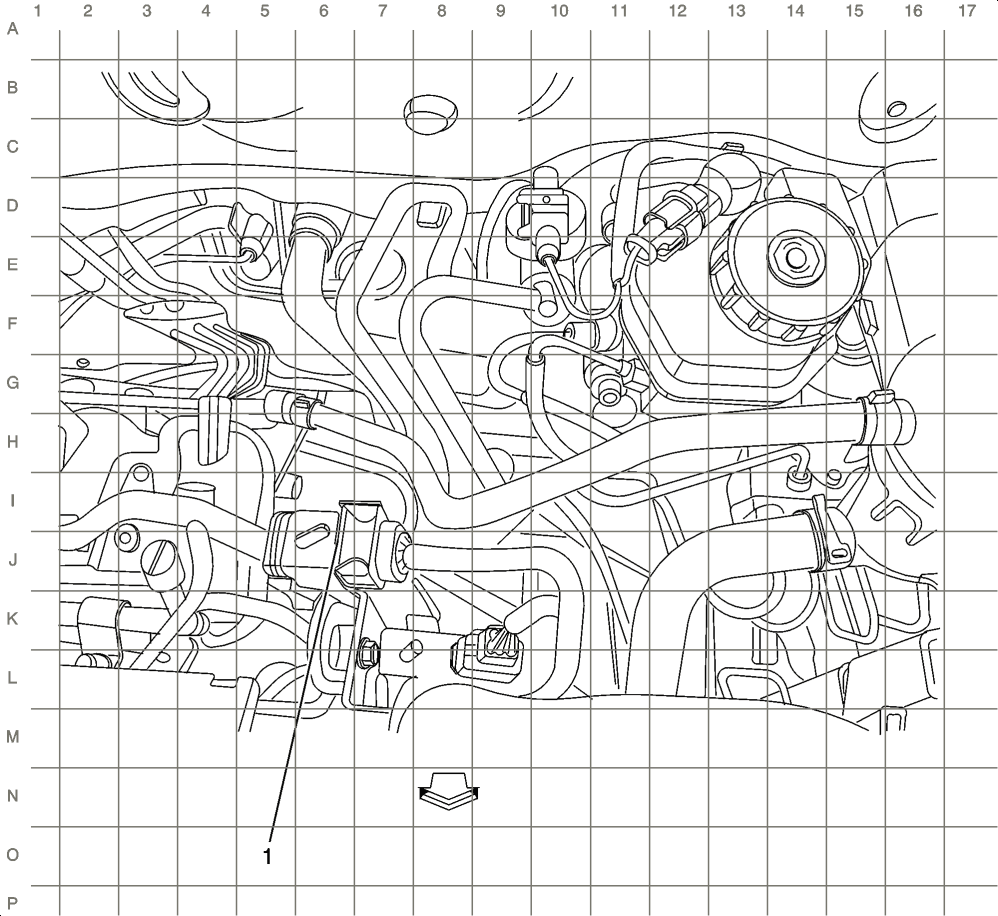

Fig 16: Engine Harness Routing (LUW)
GM2206027Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X105 Engine Harness and Fuel Injectors Harness

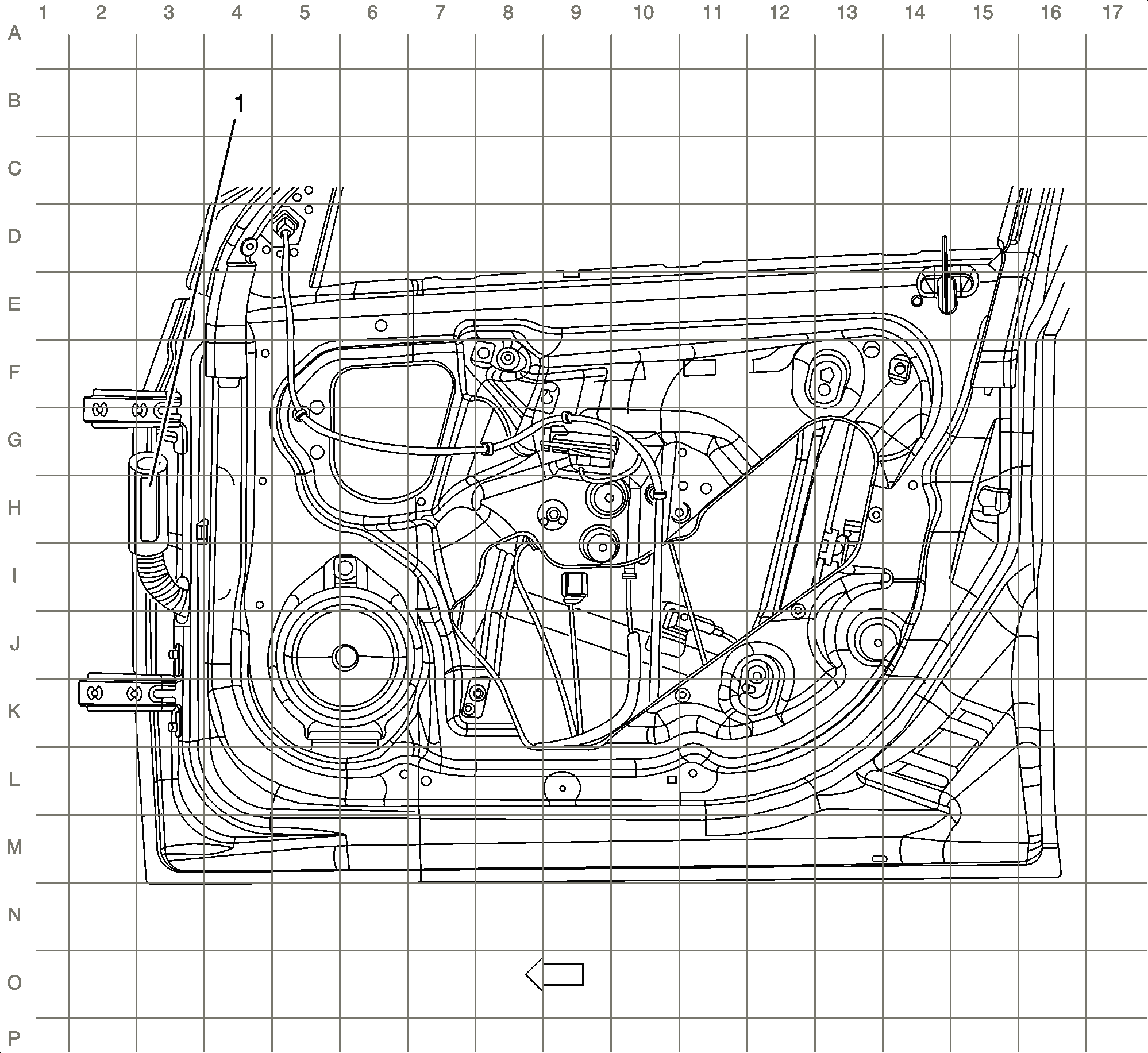

Fig 17: Front Passenger Door Harness Routing
GM2206022Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X600 Body Harness and Passenger Door Harness

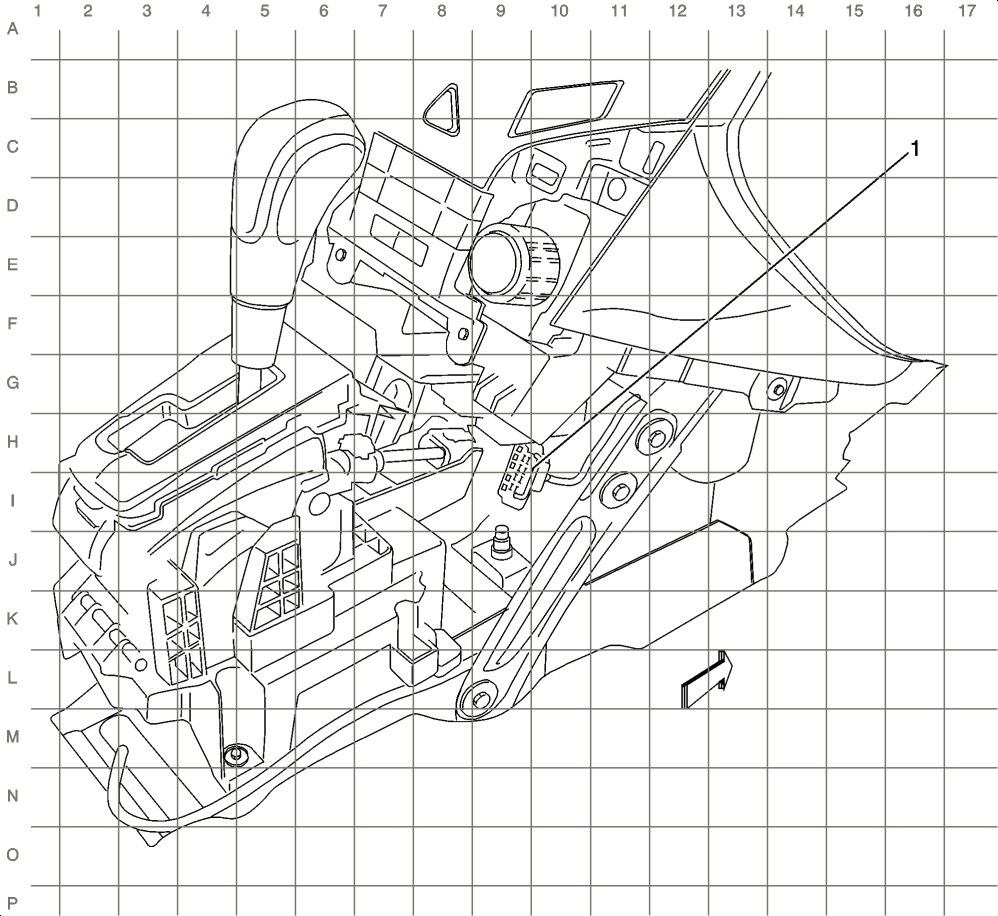

Fig 18: Instrument Panel Harness Routing
GM2290615Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X300 Instrument Panel Harness and Console Harness

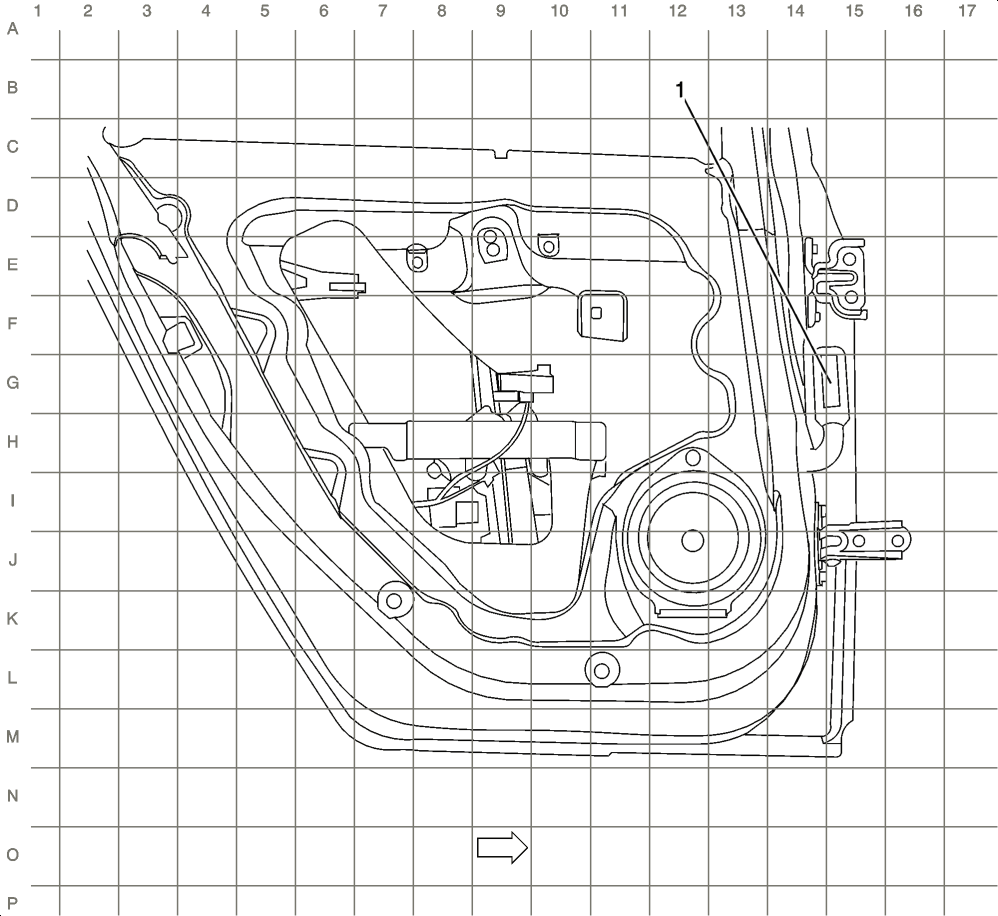

Fig 19: Left Rear Door Harness Routing
GM2206029Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X700 Body Harness and Left Rear Door Harness
Fig 20: Trunk Harness Routing
GM2206034Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X915 Liftgate Harness and Liftgate Tail Lamp Left Harness
2 X920 Liftgate Harness and Number Plate Light Harness
3 X917 Liftgate Harness and Liftgate Tail Lamp Right Harness

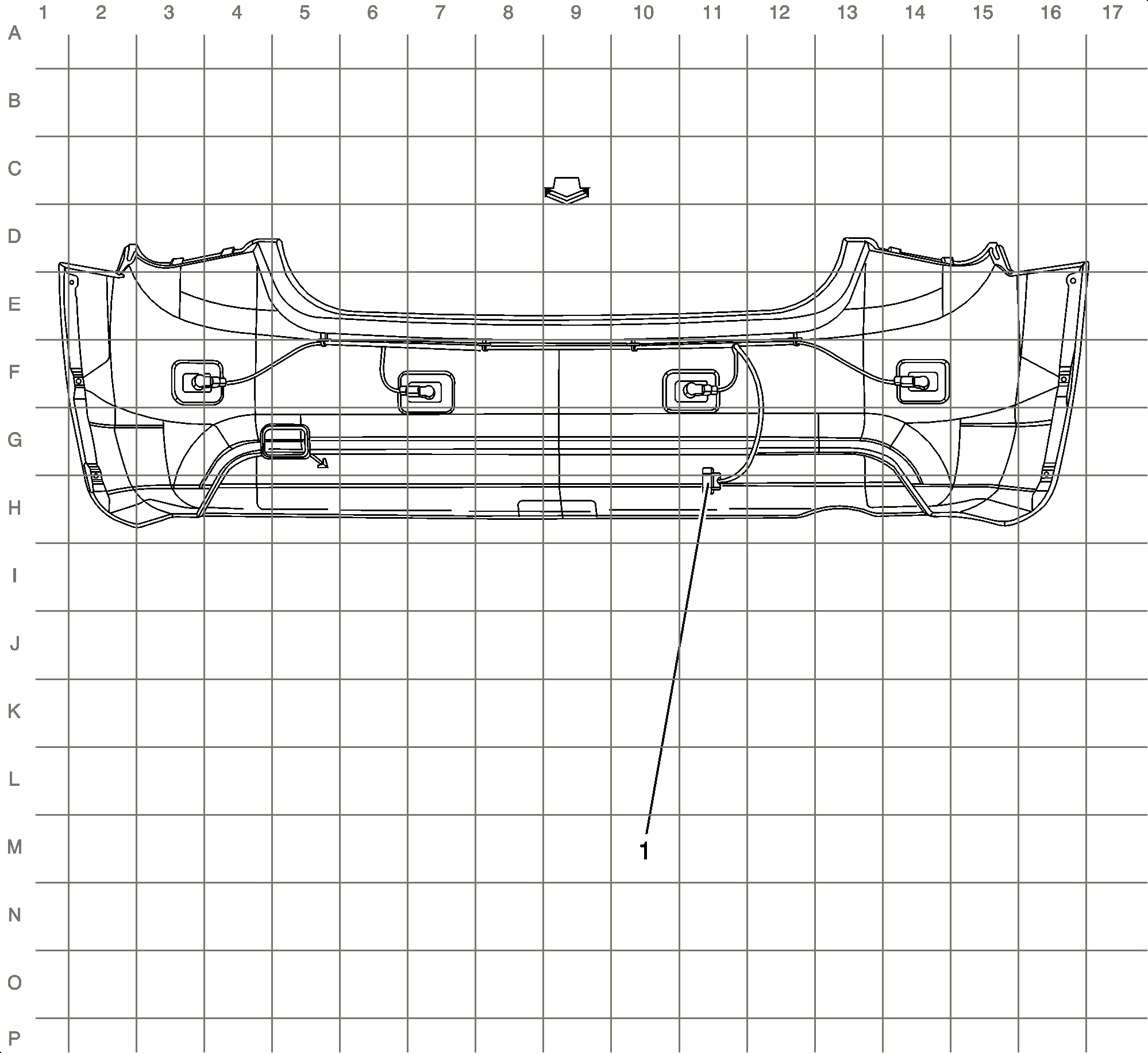

Fig 21: Rear Lid Harness Routing
GM2206035Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X402 Body Harness and Park Pilot Harness

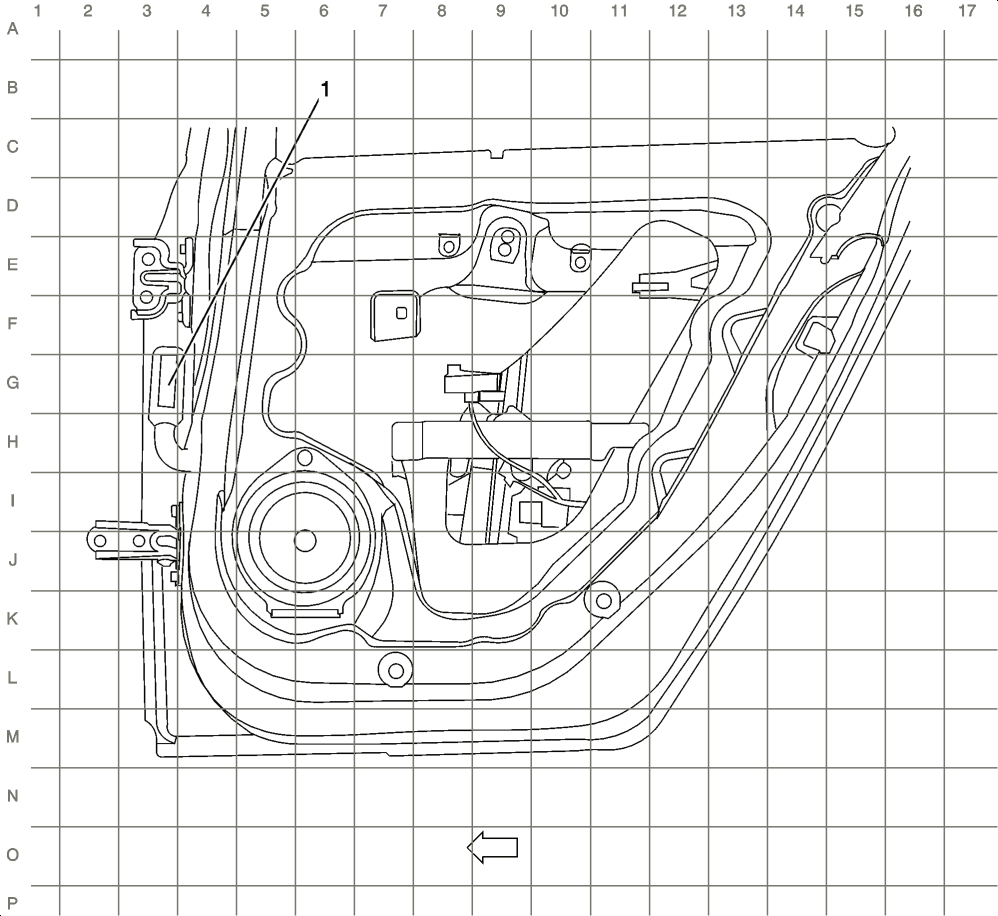

Fig 22: Right Rear Door Harness Routing
GM2206038Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X800 Body Harness and Right Rear Door Harness
