Power Moding Wiring Schematics

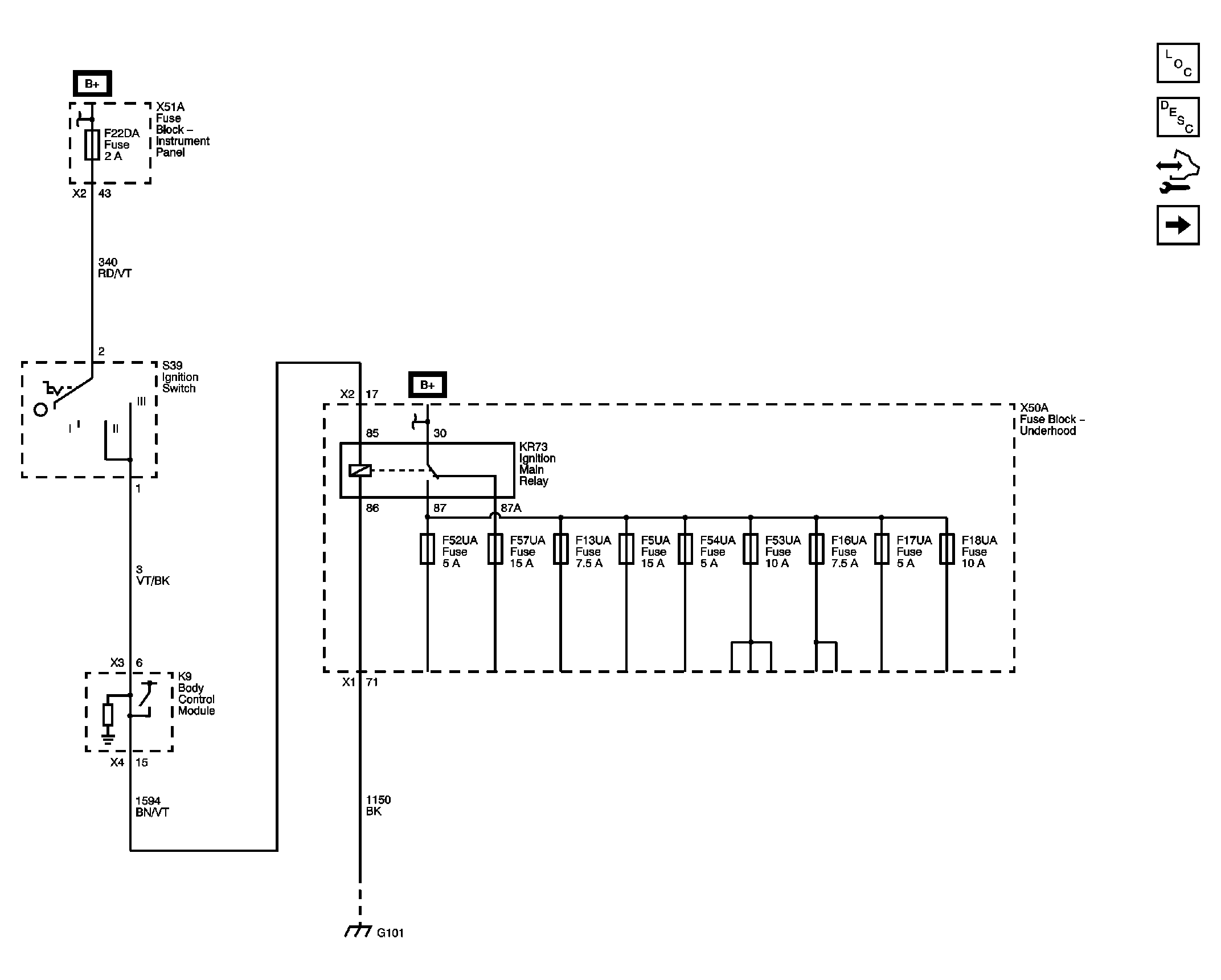

Fig 1: Ignition Main Relay Wiring Schematic

GM2461656

Courtesy of GENERAL MOTORS CORP.

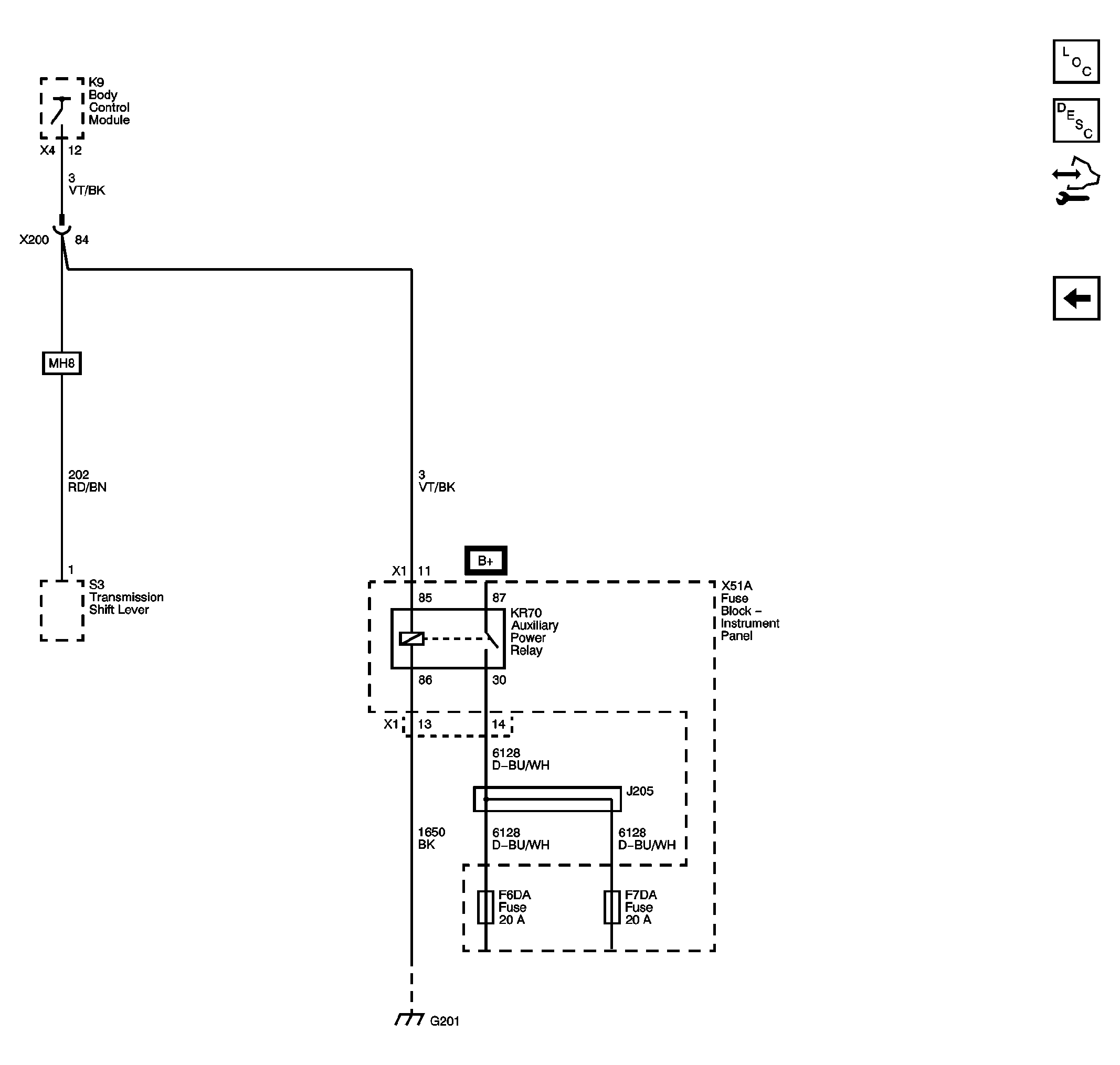

Fig 2: Auxiliary Power Relay Wiring Schematic

GM2461658

Courtesy of GENERAL MOTORS CORP.
