Ground Distribution Wiring Schematics

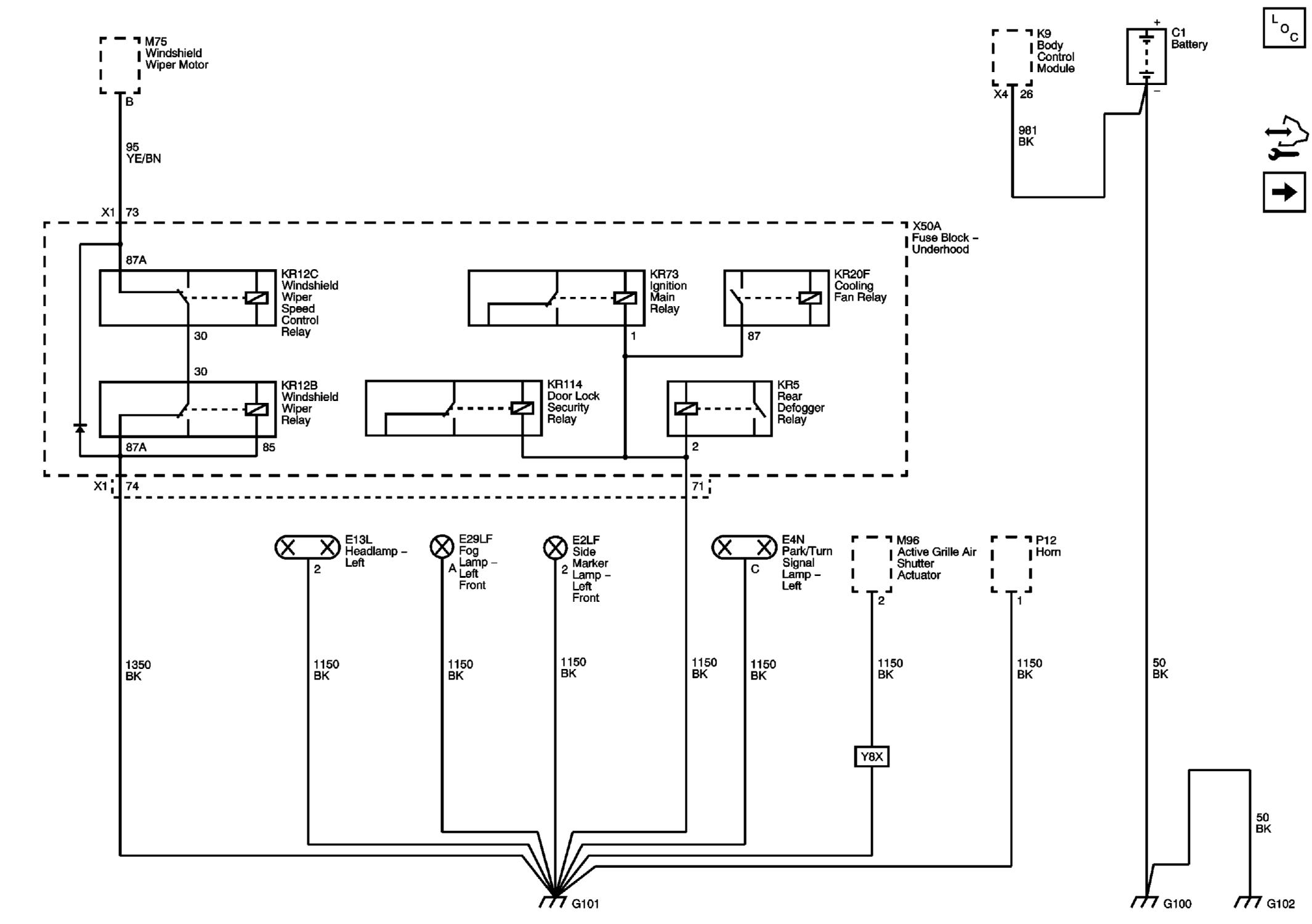

Fig 1: G100, G101, and G102

Courtesy of GENERAL MOTORS CORP.

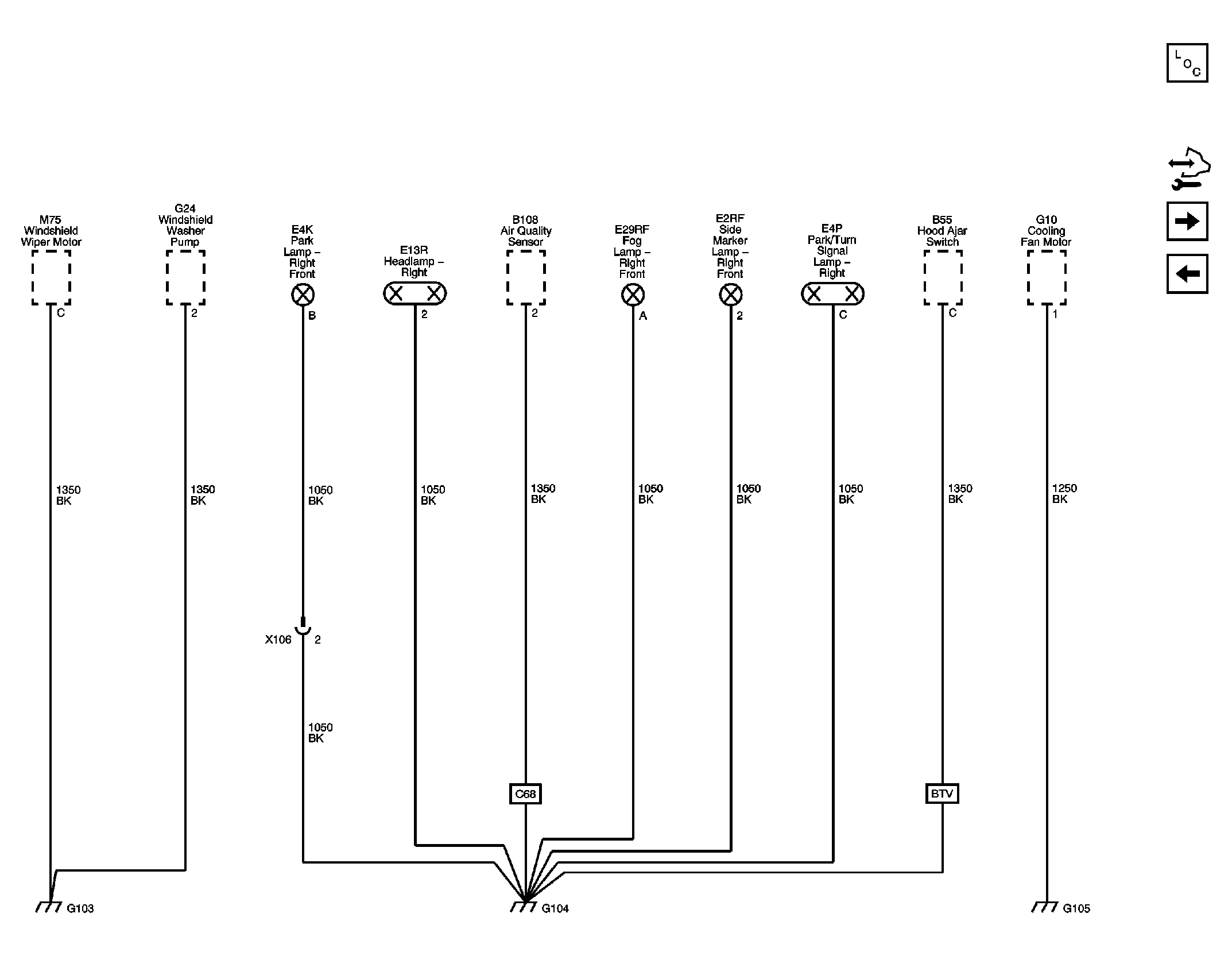

Fig 2: G103, G104, and G105

Courtesy of GENERAL MOTORS CORP.

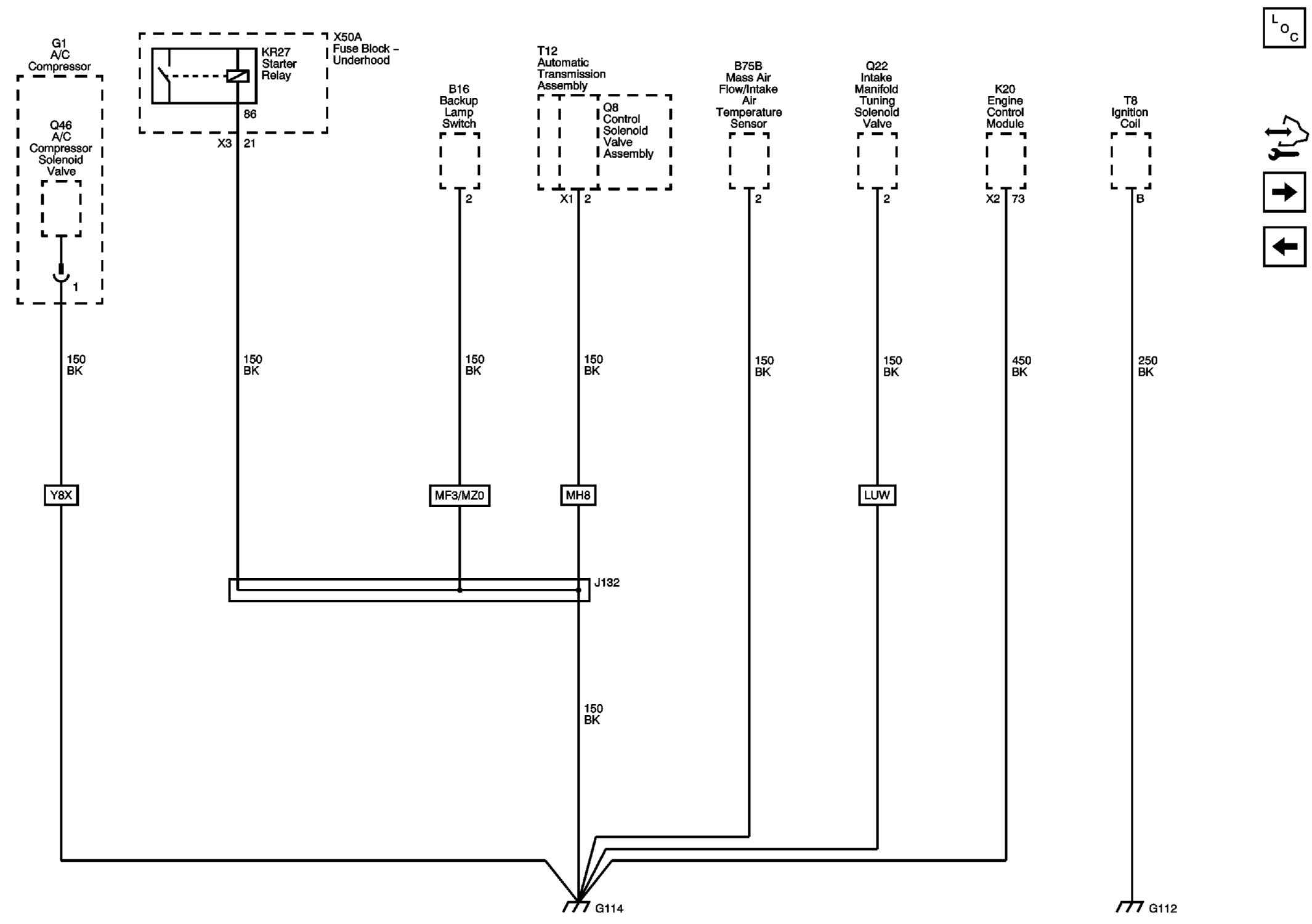

Fig 3: G112 and G114

Courtesy of GENERAL MOTORS CORP.

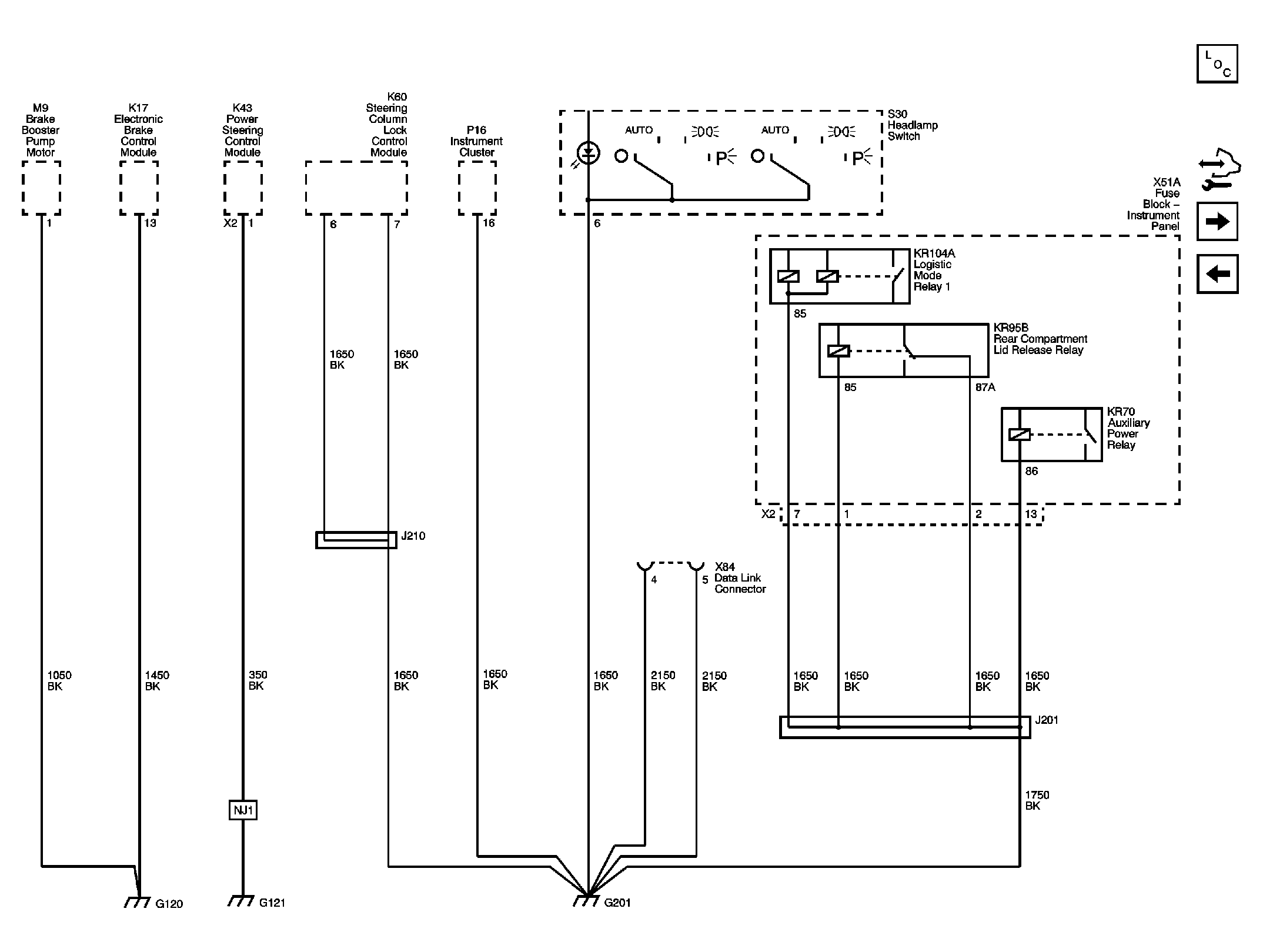

Fig 4: G120, G121, and G201

Courtesy of GENERAL MOTORS CORP.

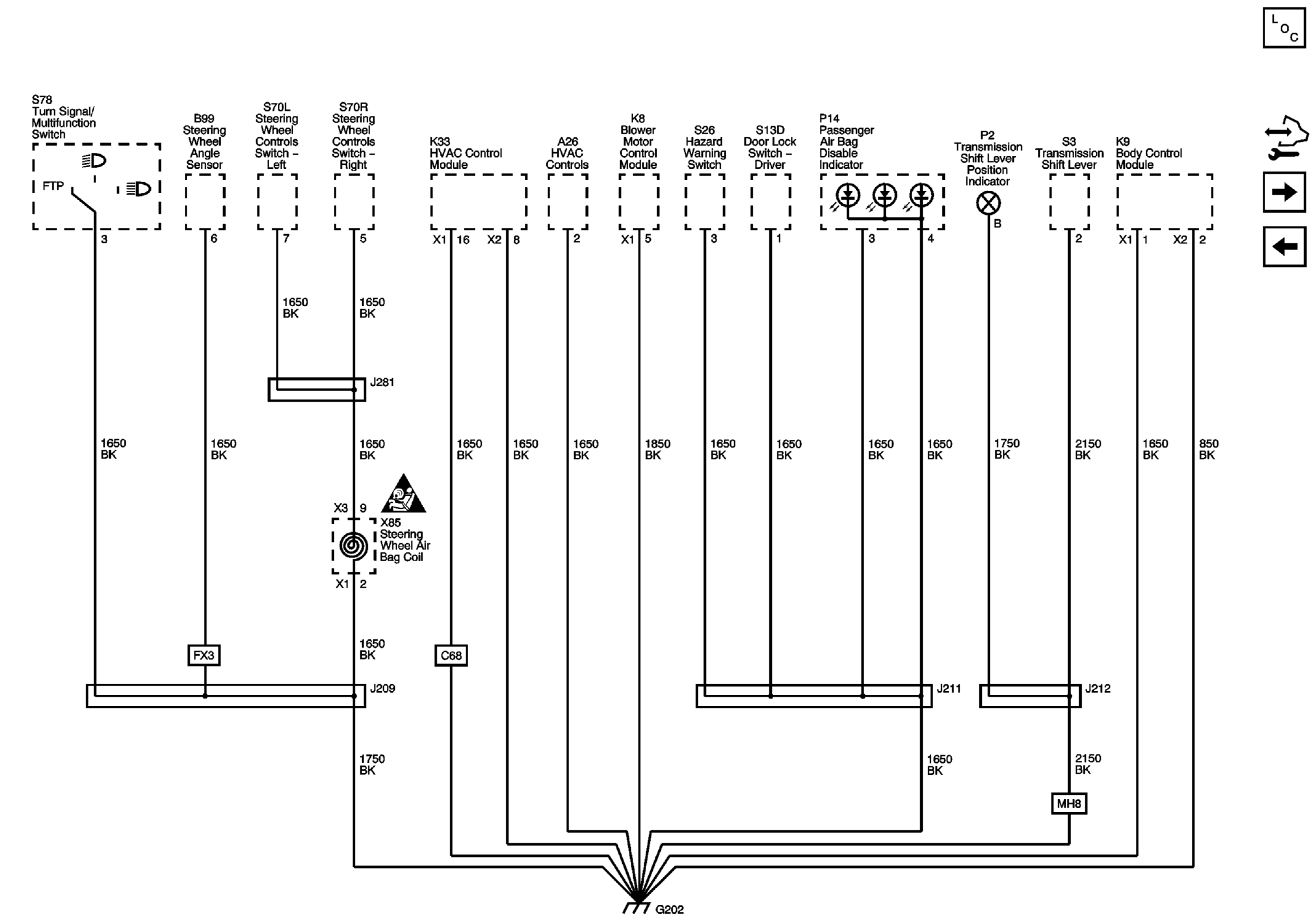

Fig 5: G202

Courtesy of GENERAL MOTORS CORP.

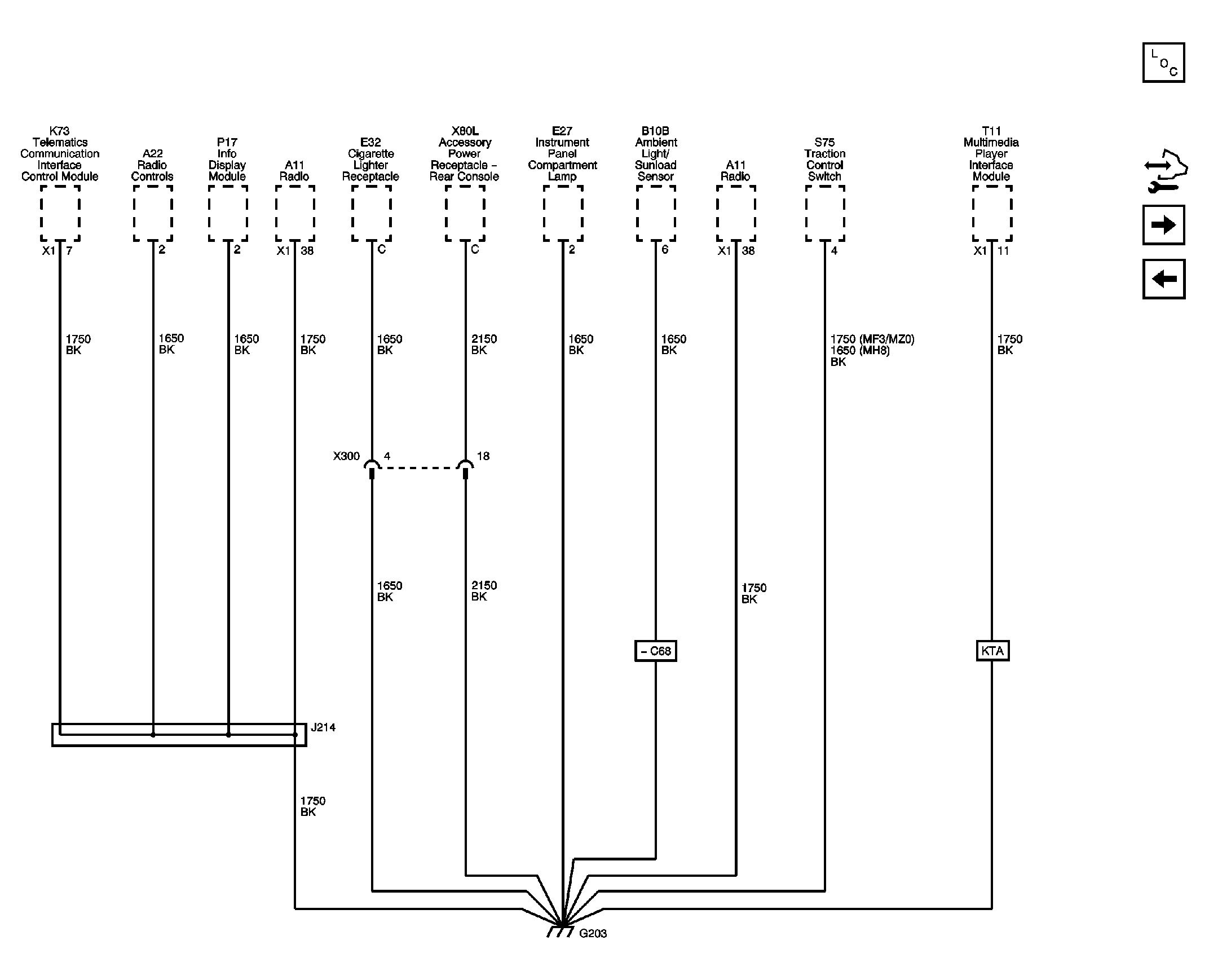

Fig 6: G203

Courtesy of GENERAL MOTORS CORP.

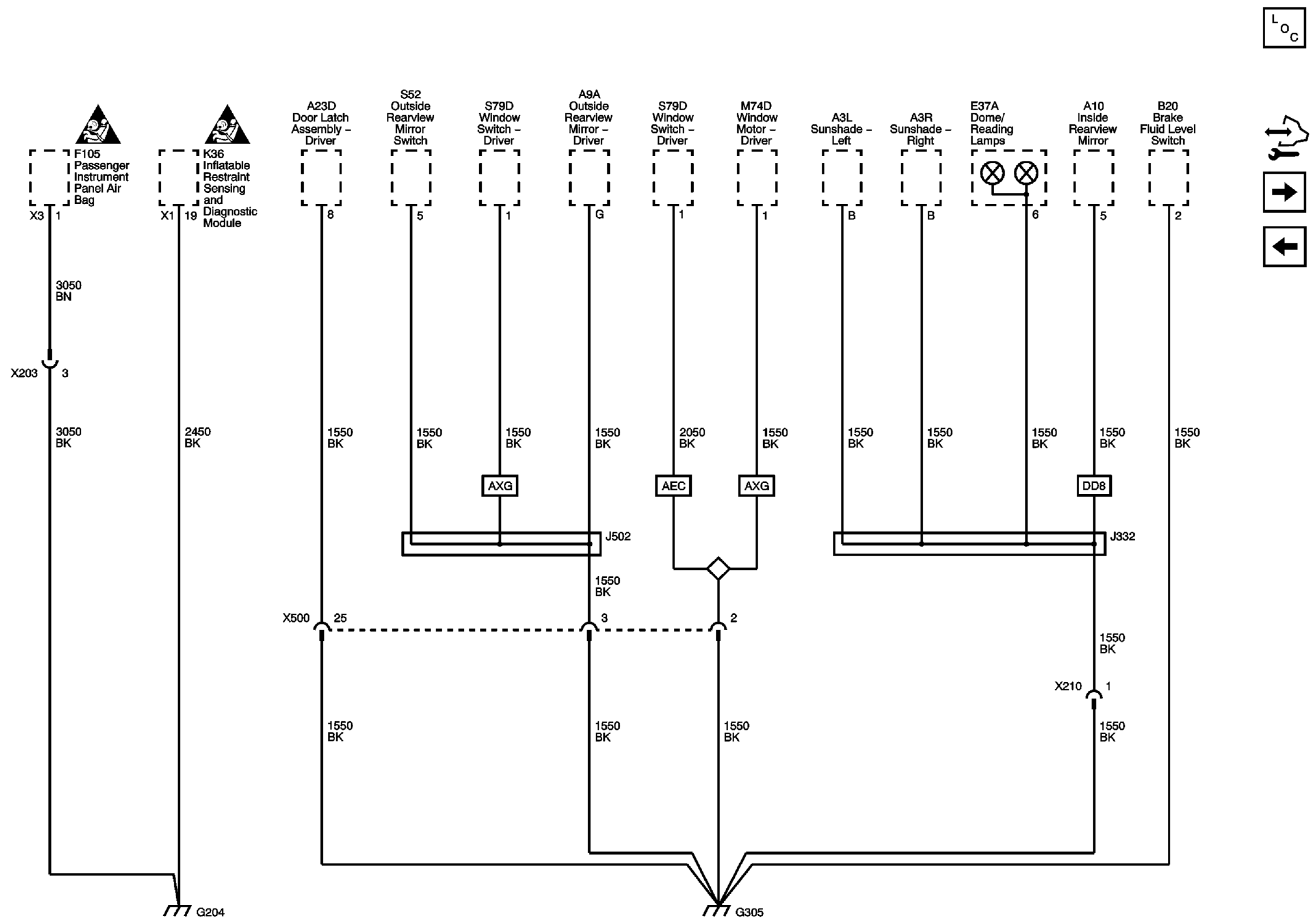

Fig 7: G204 and G305

Courtesy of GENERAL MOTORS CORP.

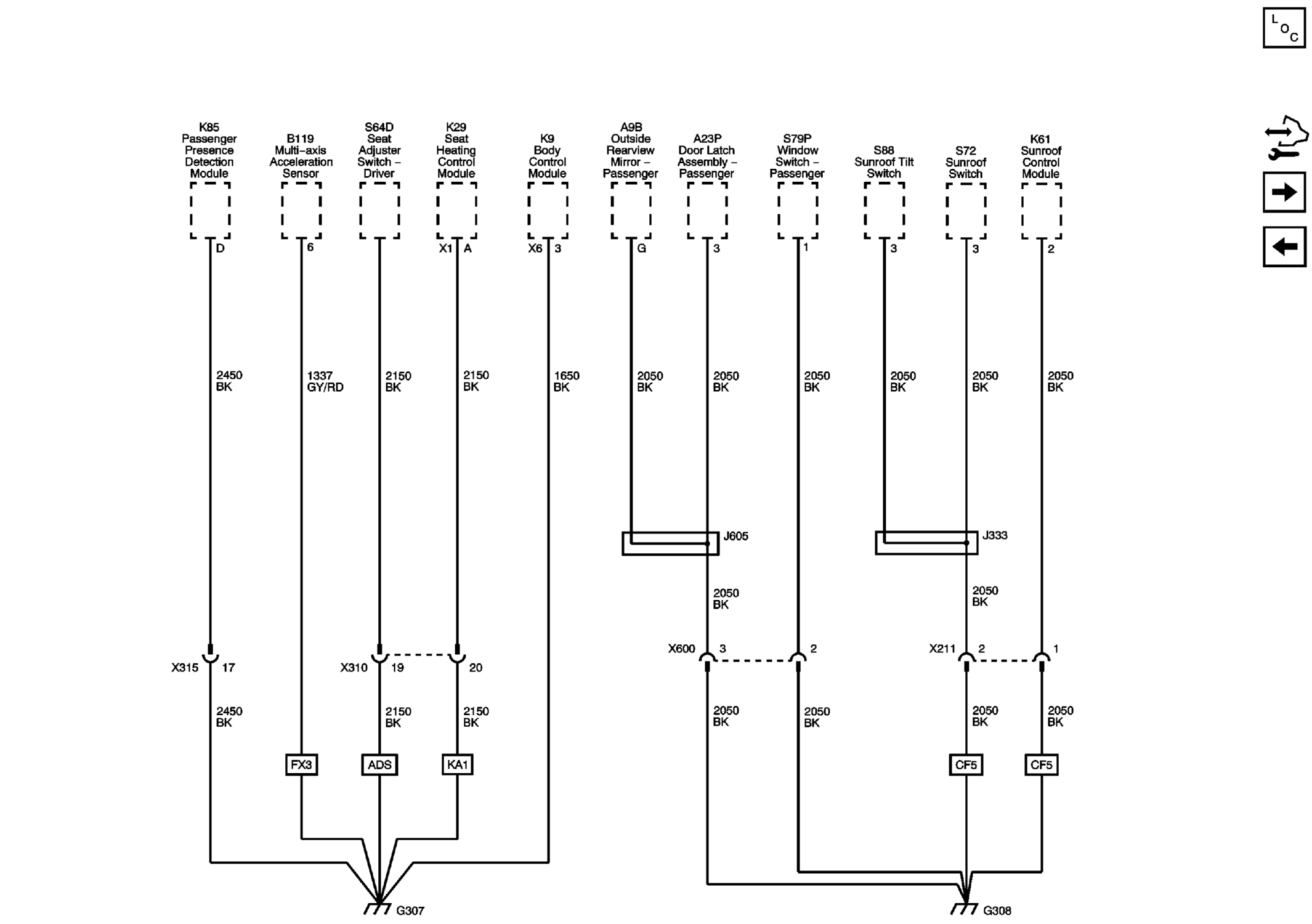

Fig 8: G307 and G308

Courtesy of GENERAL MOTORS CORP.

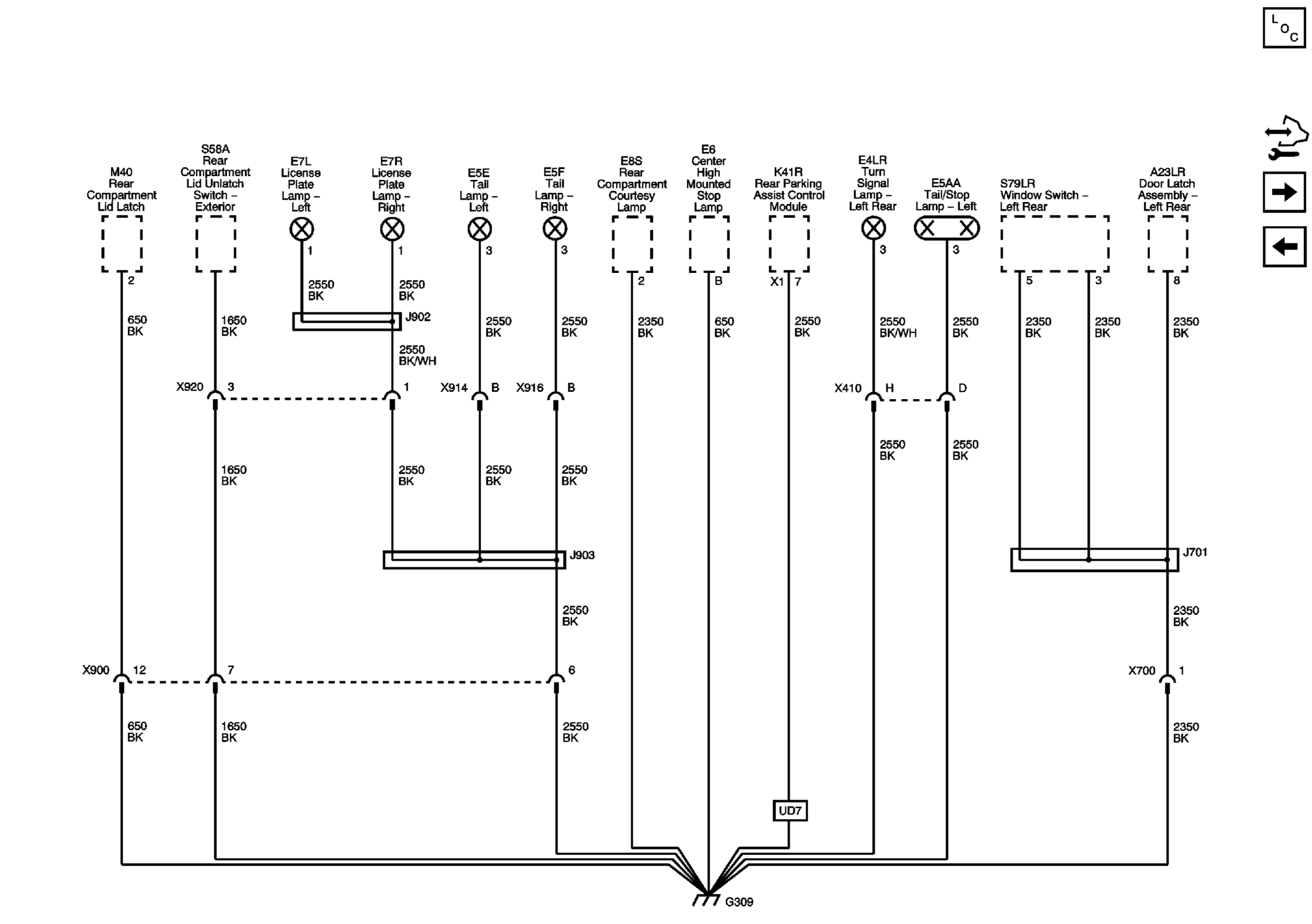

Fig 9: G309

Courtesy of GENERAL MOTORS CORP.

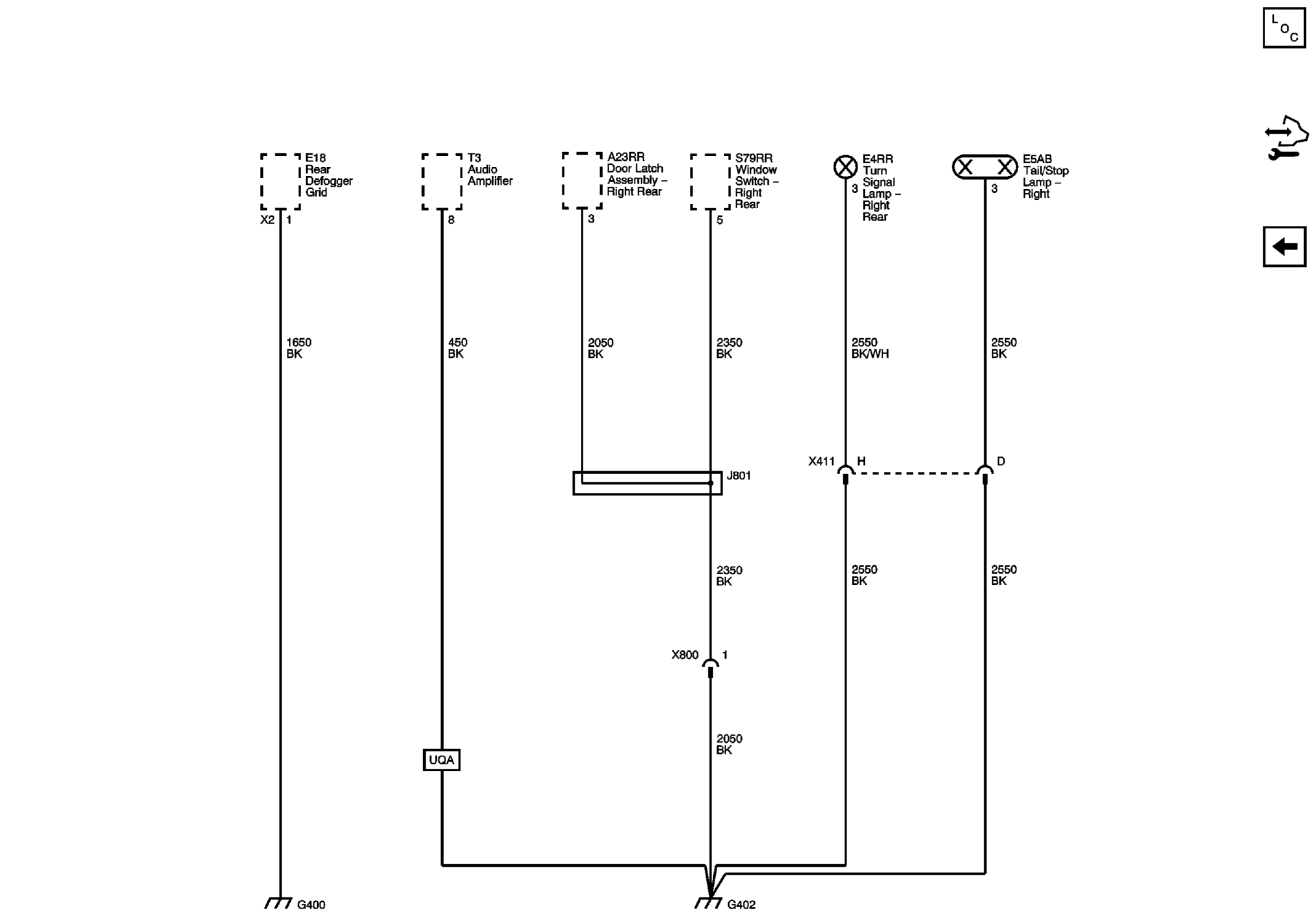

Fig 10: G400 and G402

Courtesy of GENERAL MOTORS CORP.
