Front Wheelhouse Liner Replacement

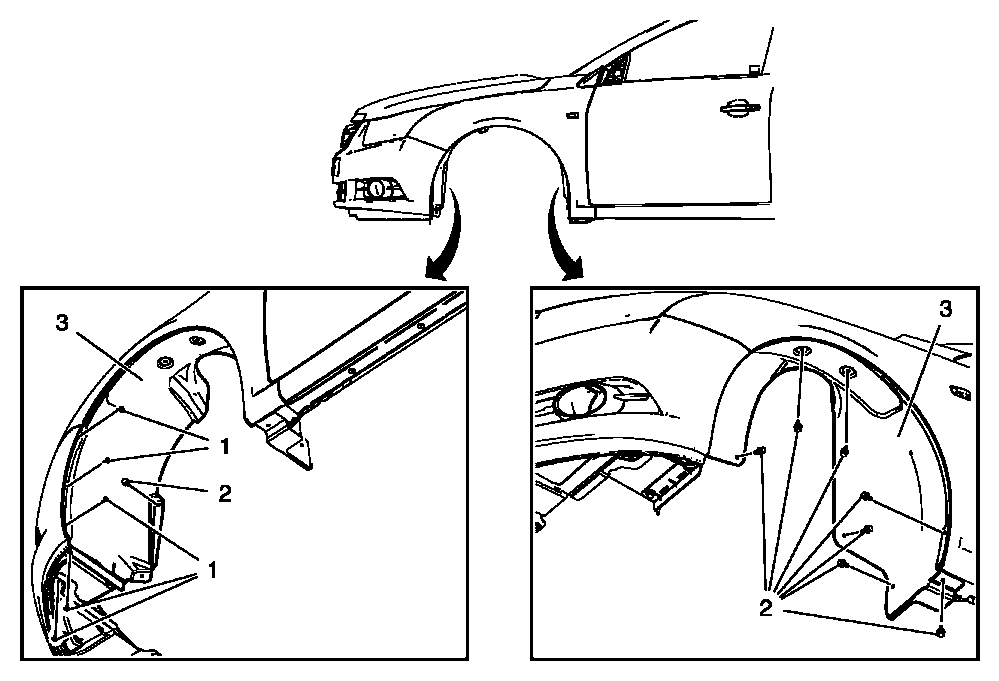

Fig 1: View Of Front Wheelhouse Liner, Screws And Retainers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Front Wheelhouse Liner Screw (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (23 lb in)
2	Front Wheelhouse Liner Plastic Retainer (Qty: 7)
3	Front Wheelhouse Liner
