Front Bumper Fascia Replacement

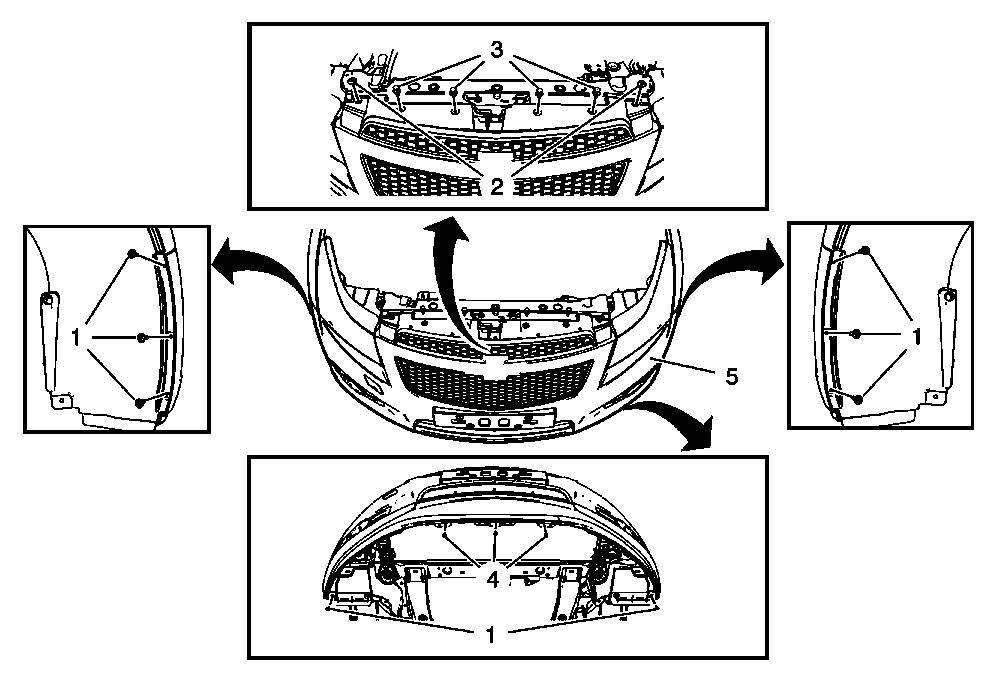

Fig 1: Front Bumper Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia opening cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
1	Front Wheelhouse Liner Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m(23 lb in)
2	Front Bumper Fascia Bolt (Qty: 2) Tighten: 9 N.m(80 lb in)
3	Front Bumper Fascia Retainer (Qty: 4)
4	Front Bumper Fascia Lower Stiffener Bolt (Qty: 3) Tip: Only loosen the bolts. Tighten: 2.5 N.m (23 lb in)
5	Front Bumper Fascia Procedure Unclip from front bumper fascia guides. Pull forward to remove the front bumper fascia. Disconnect any electrical connectors. Transfer parts as needed.
