Engine Support Fixture

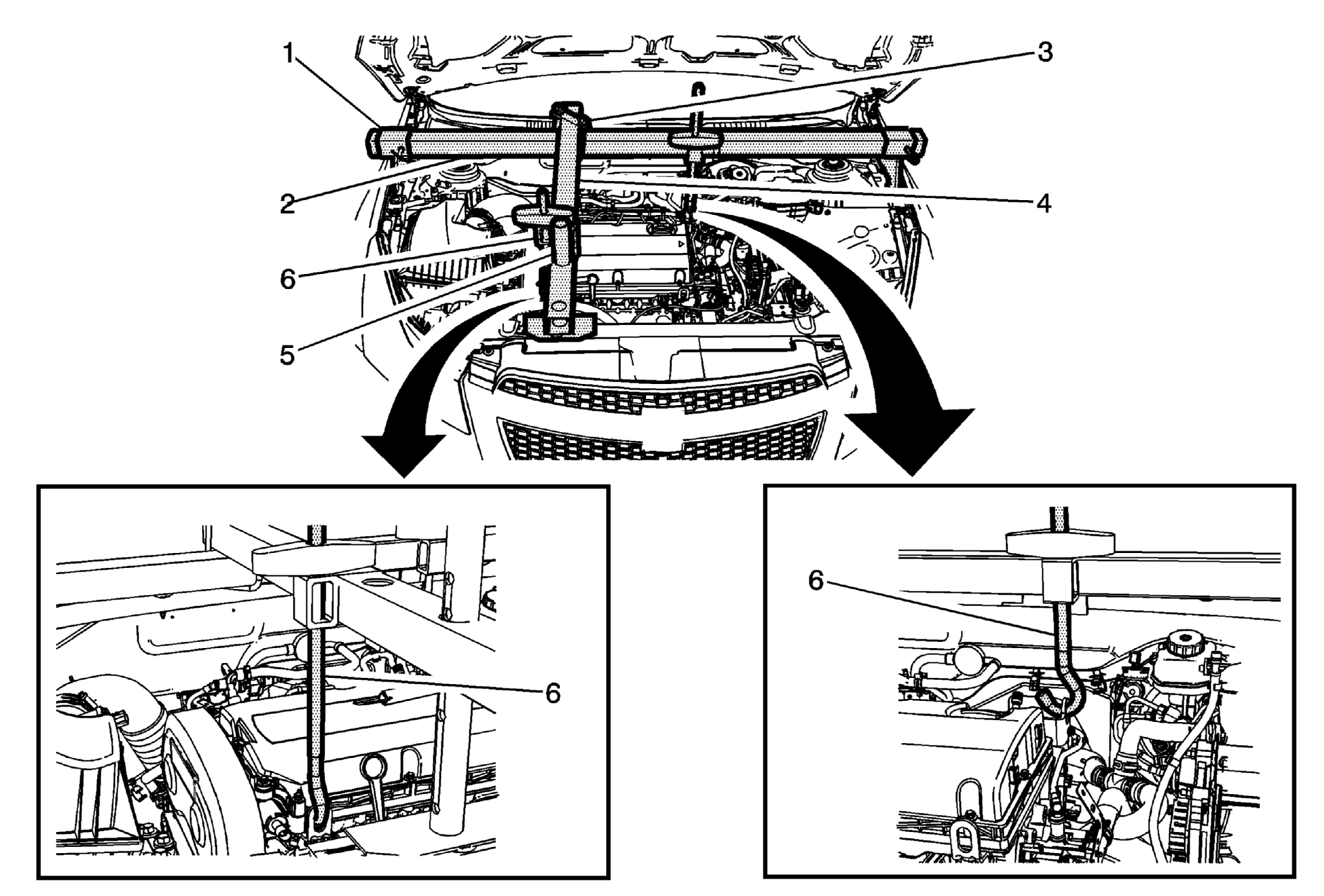

Fig 1: Locating Engine Support Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the Front Fender Shipping Cover. Refer to Front Fender Shipping Cover Replacement . Special Tools J-43405: Engine Support Fixture Adapter J-28467-518: Main Support Beam J-28467-1A: Cross Bracket J-28467-5A: Strut Tower Support Assembly J-28467-2A: Radiator Tube Shelf Assembly J-36857: Engine Lift Bracket J-28467-8A: Hook Assembly For equivalent regional tools, refer to Special Tools .
1	Engine Support Fixture Adapter Leg (Qty: 2) Procedure: Install the bracket to fender frame. Do not install on top of fender lip.
2	Main Support Beam
3	Cross Bracket
4	Strut Tower Support Assembly Procedure: Adjust the length of the strut tower support assembly.
5	Radiator Tube Shelf Assembly
6	Hook Assembly Procedure: Use a grade 10.9 bolt to install the engine lift bracket. Tip: If the engine is not equipped with engine lift bracket, install J-36857 in place.
