Power Distribution Wiring Schematics

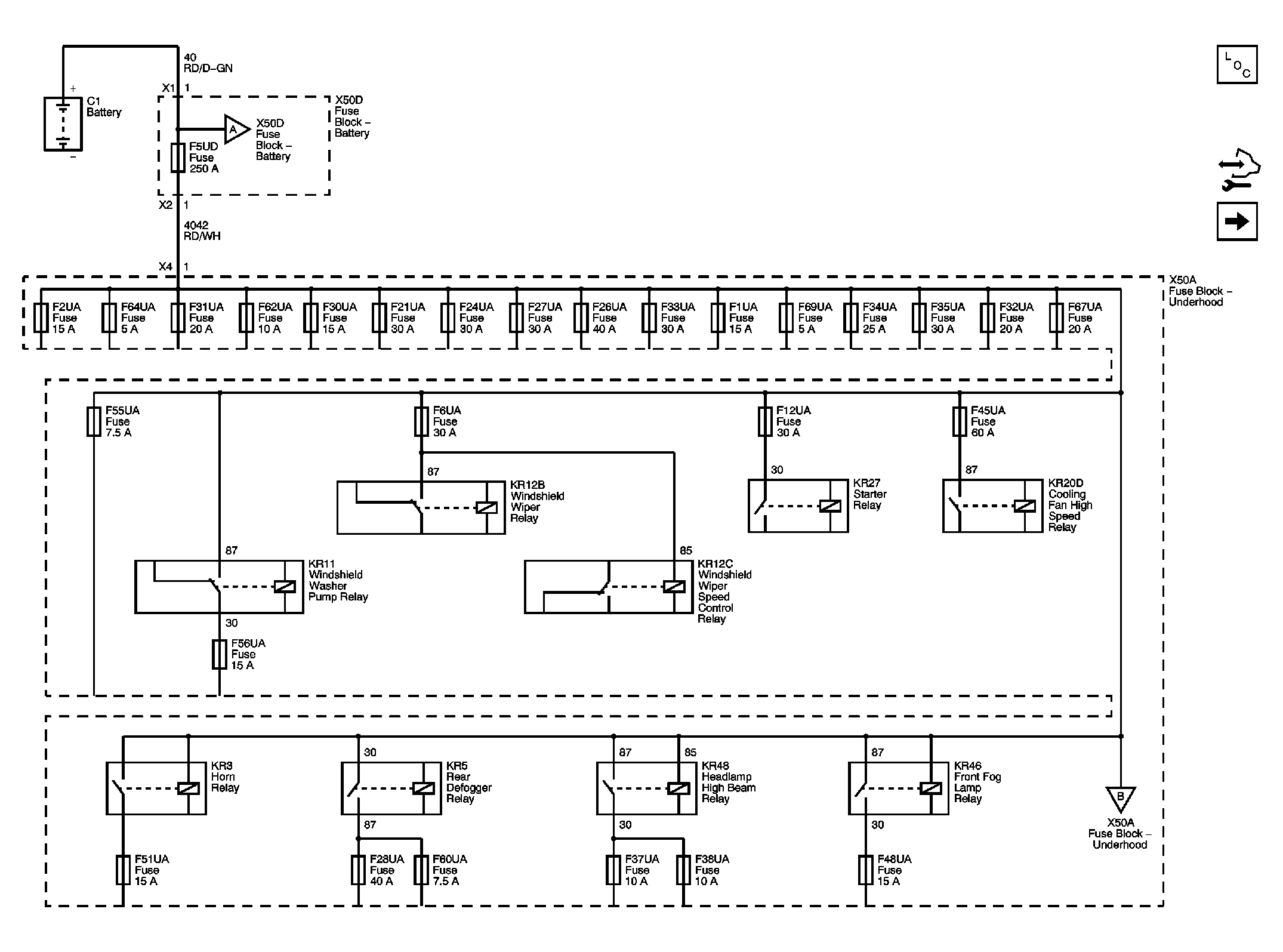

Fig 1: B+ Bus (1 of 3)

Courtesy of GENERAL MOTORS CORP.

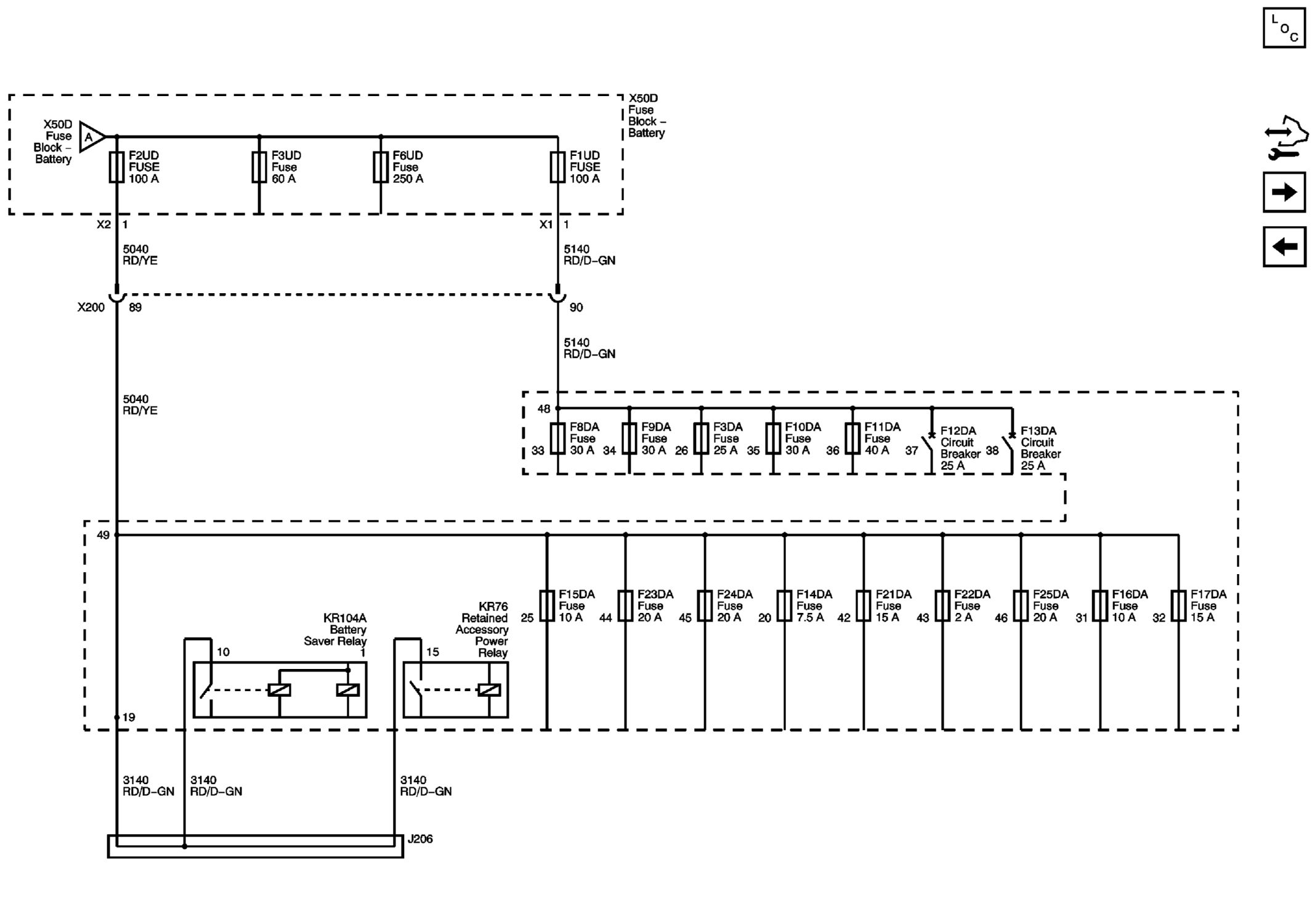

Fig 2: B+ Bus (2 of 3)

Courtesy of GENERAL MOTORS CORP.

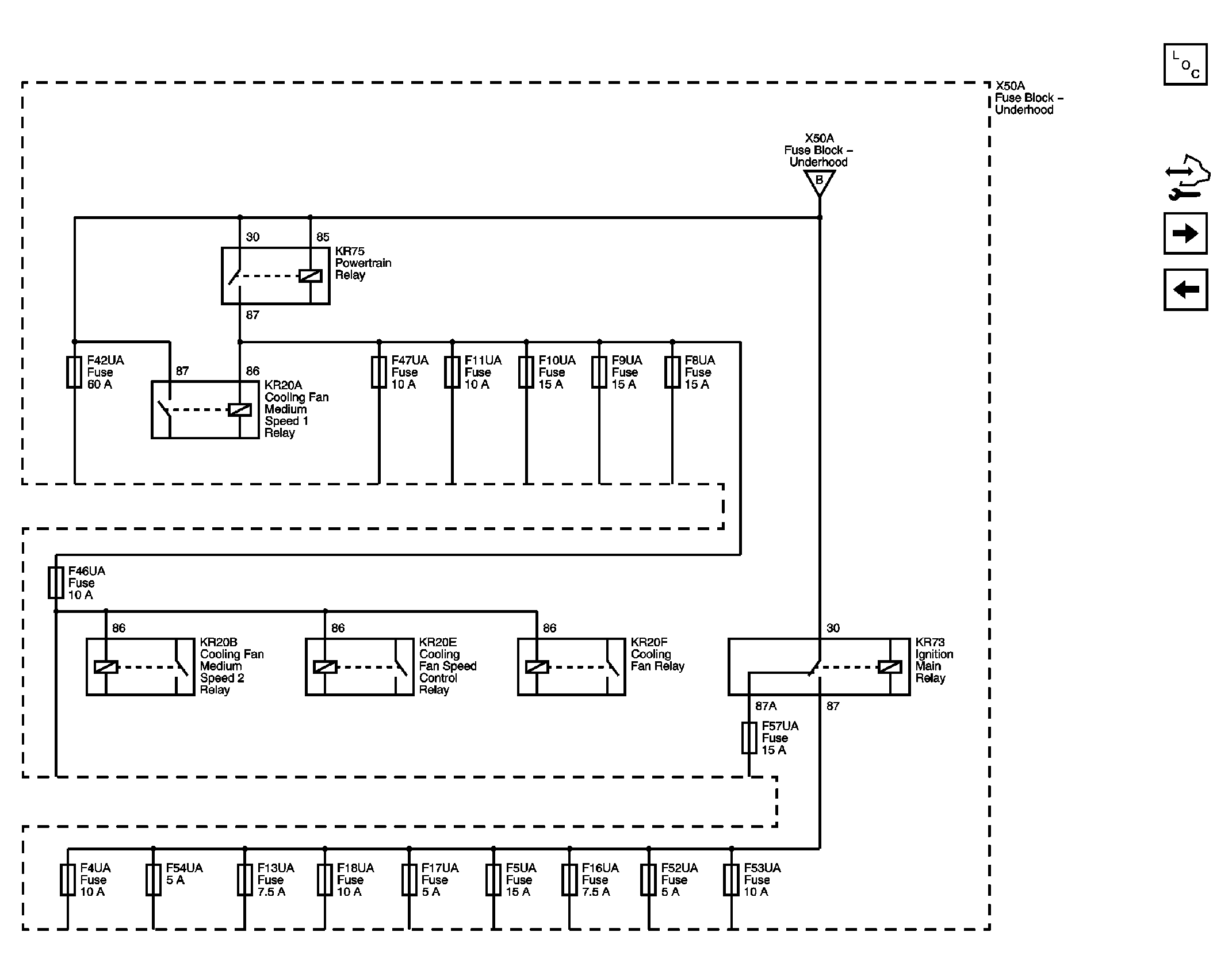

Fig 3: B+ Bus (3 of 3)

Courtesy of GENERAL MOTORS CORP.

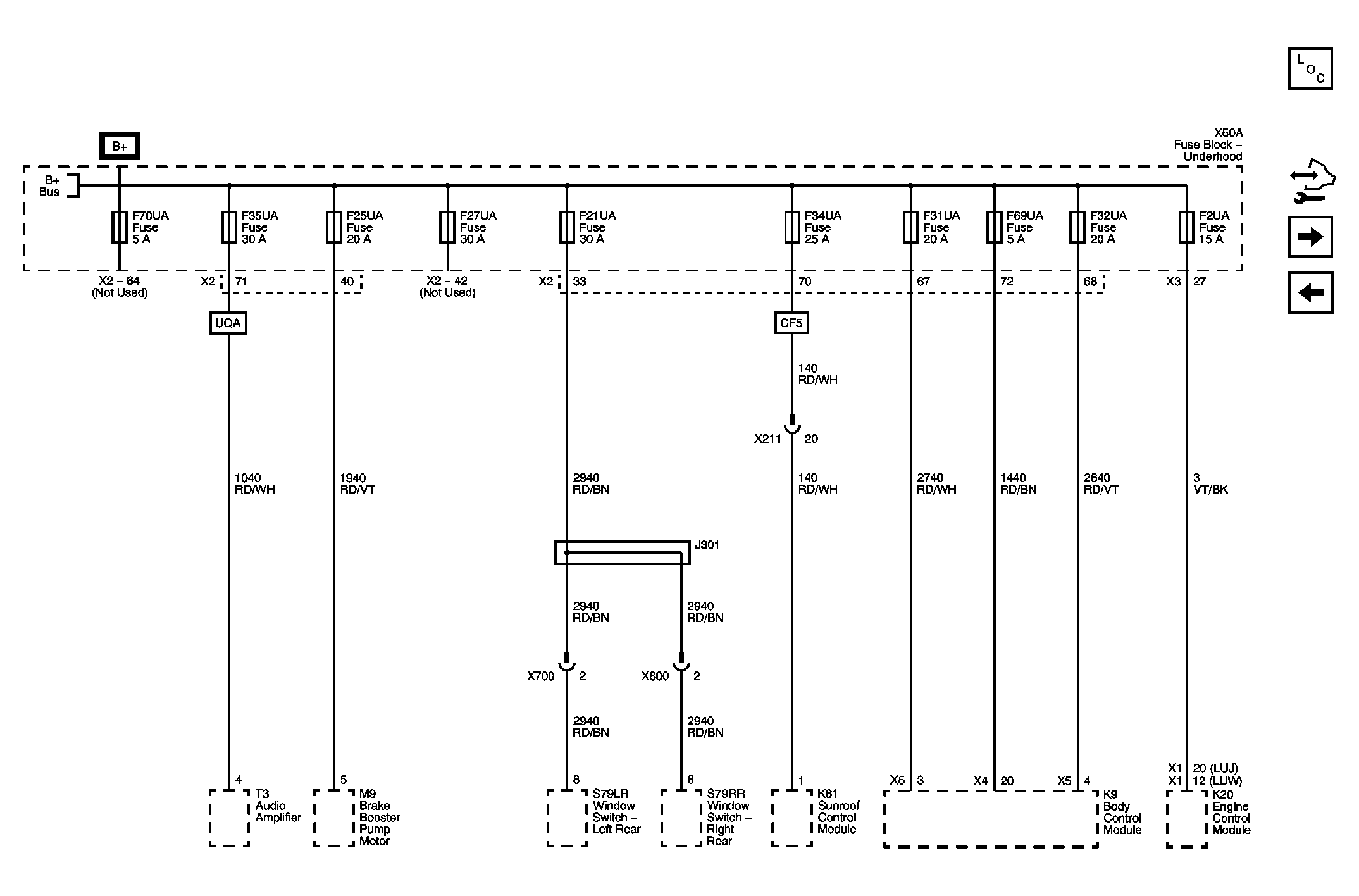

Fig 4: F2UA, F21UA, F25UA, F27UA, F31UA, F32UA, F34UA, F35UA, F69UA, and F70UA Fuses

Courtesy of GENERAL MOTORS CORP.

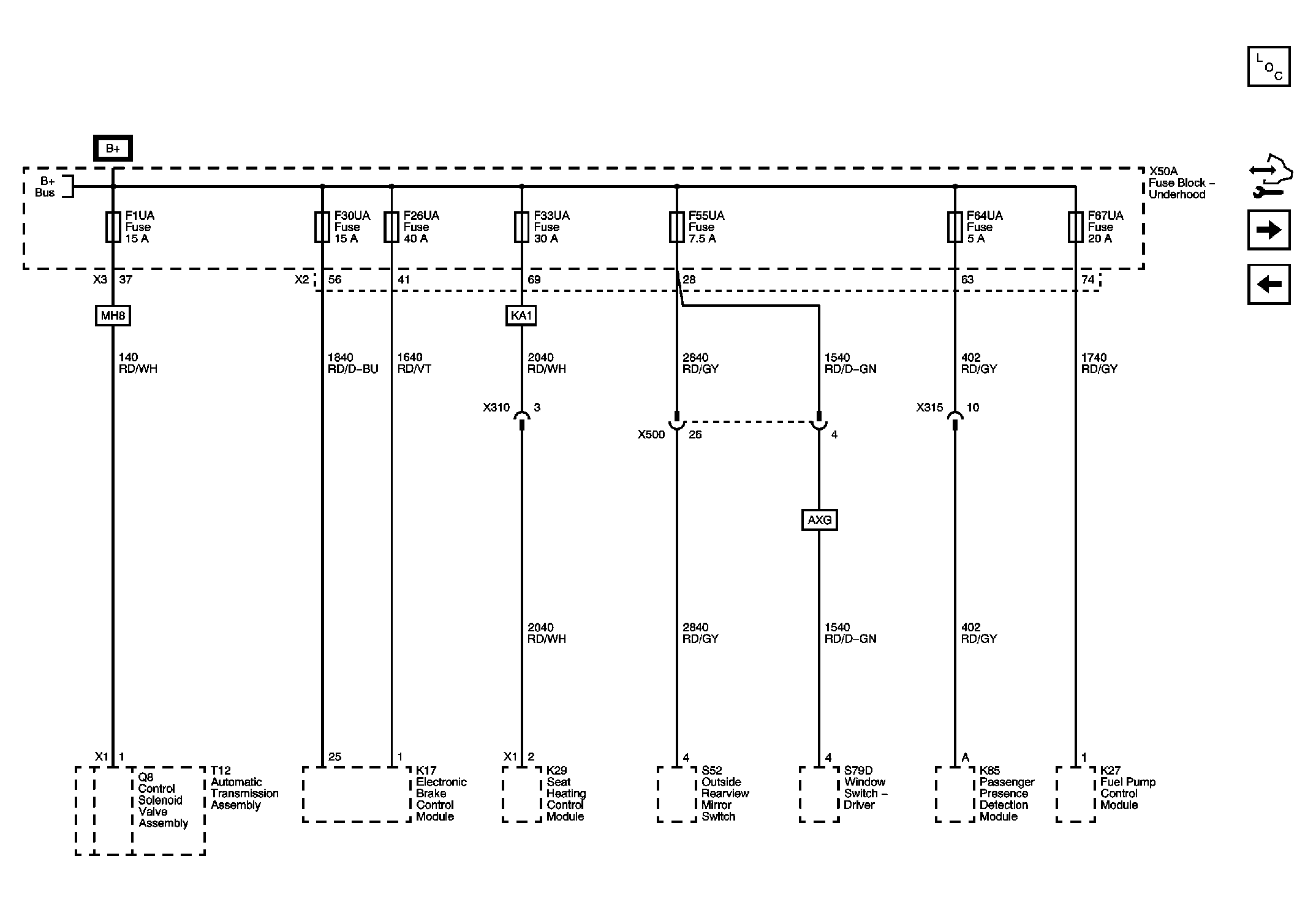

Fig 5: F1UA, F26UA, F30UA, F33UA, F55UA, F64UA, and F67UA Fuses

Courtesy of GENERAL MOTORS CORP.

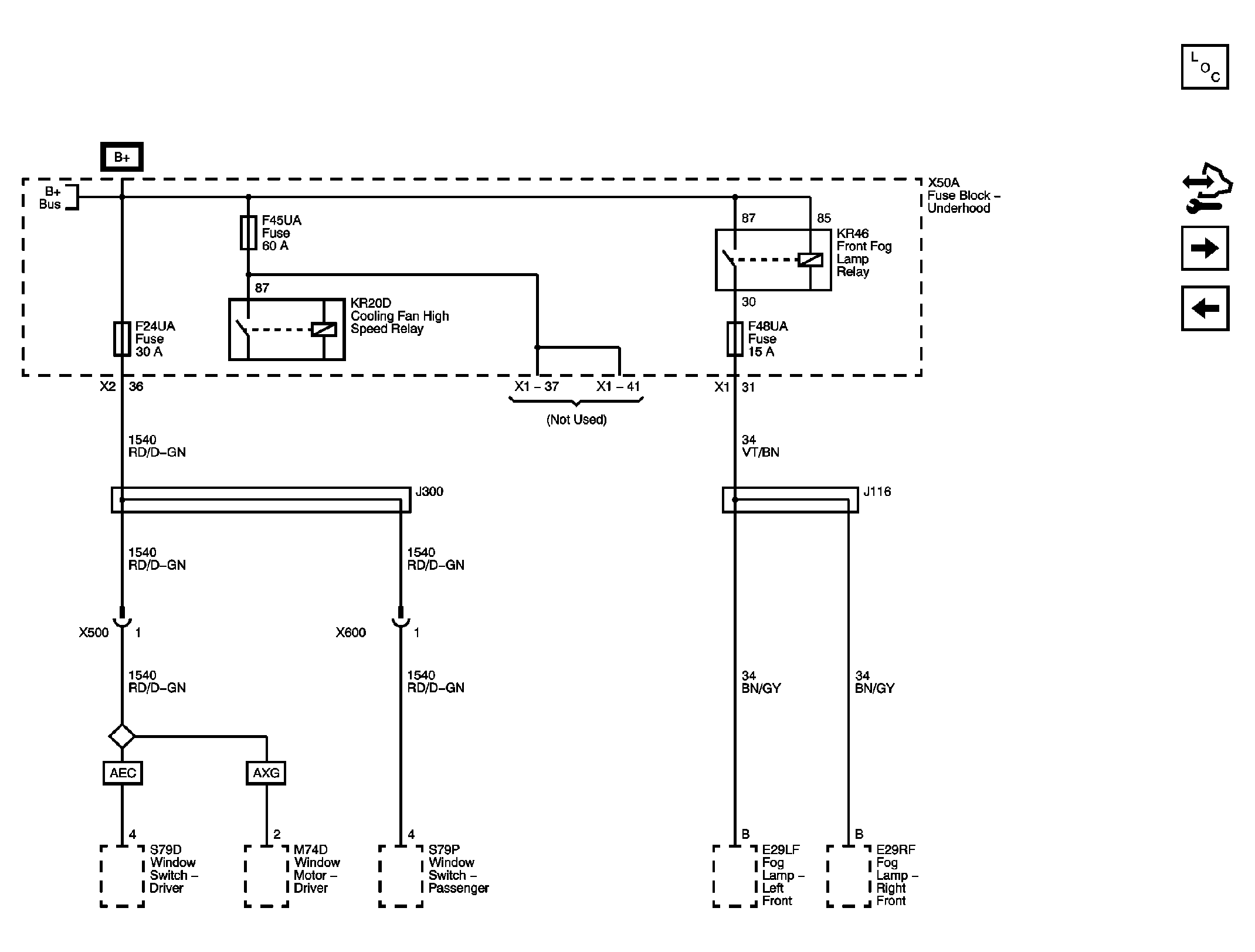

Fig 6: F5UB, F6UB, F24UA, F45UA, and F48UA Fuses

Courtesy of GENERAL MOTORS CORP.

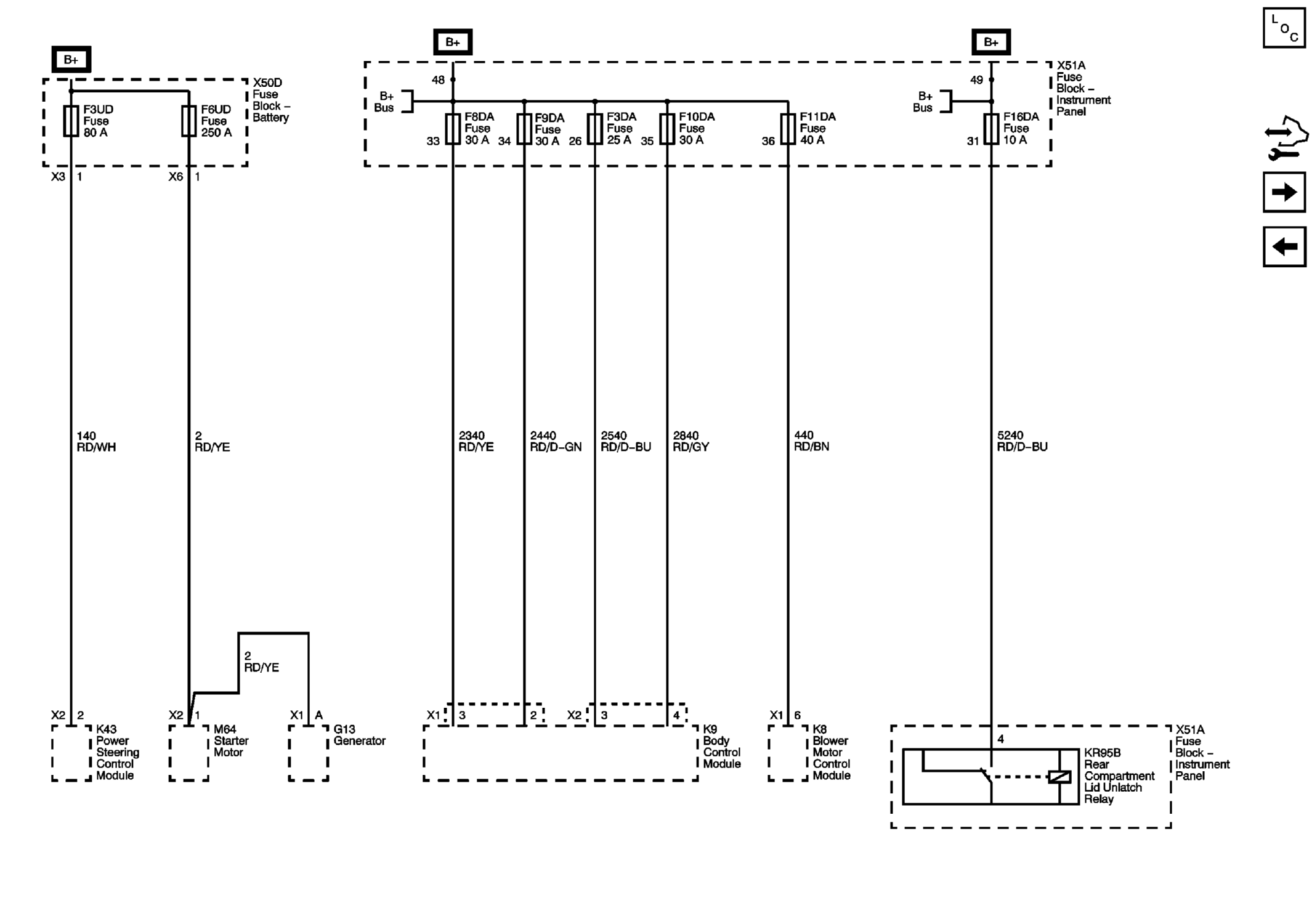

Fig 7: F3DA, F3UD, F6UD, F8DA, F9DA, F10DA, F11DA, and F16DA Fuses

Courtesy of GENERAL MOTORS CORP.

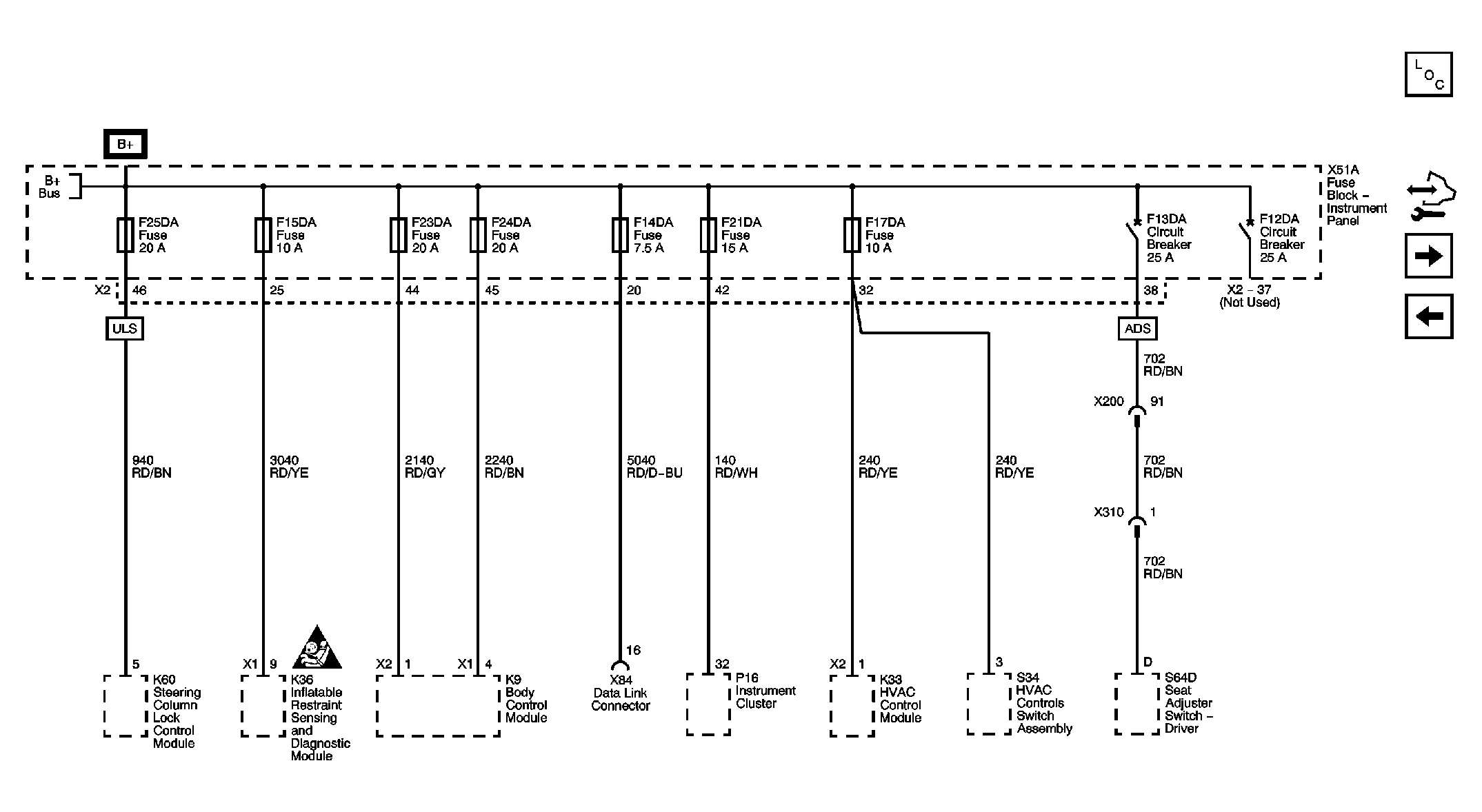

Fig 8: F12DA and F13DA Circuit Breakers, and F14DA, F15DA, F17DA, F21DA, F23DA, F24DA, and F25DA Fuses

Courtesy of GENERAL MOTORS CORP.

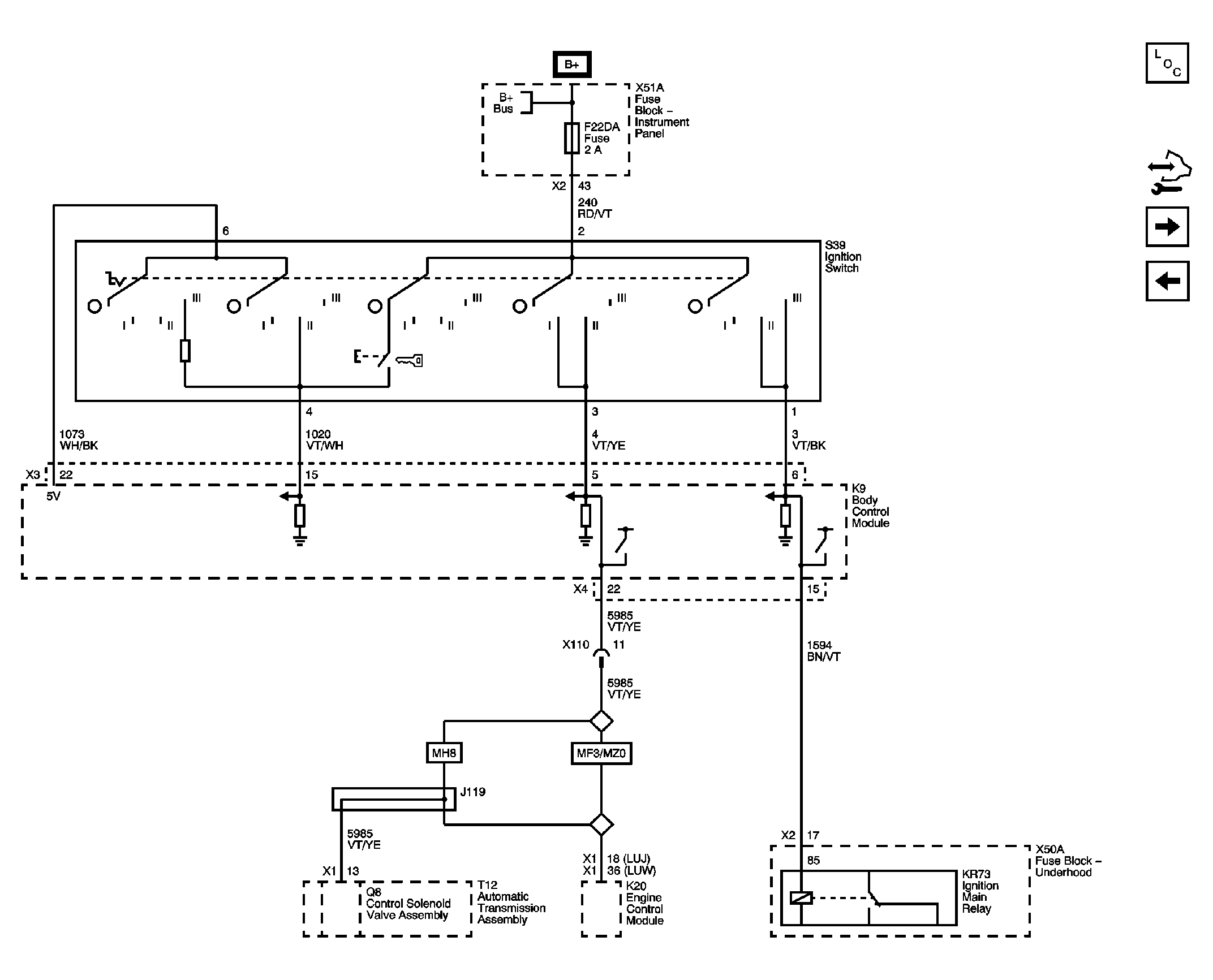

Fig 9: Ignition Switch and Fuse F22DA

Courtesy of GENERAL MOTORS CORP.

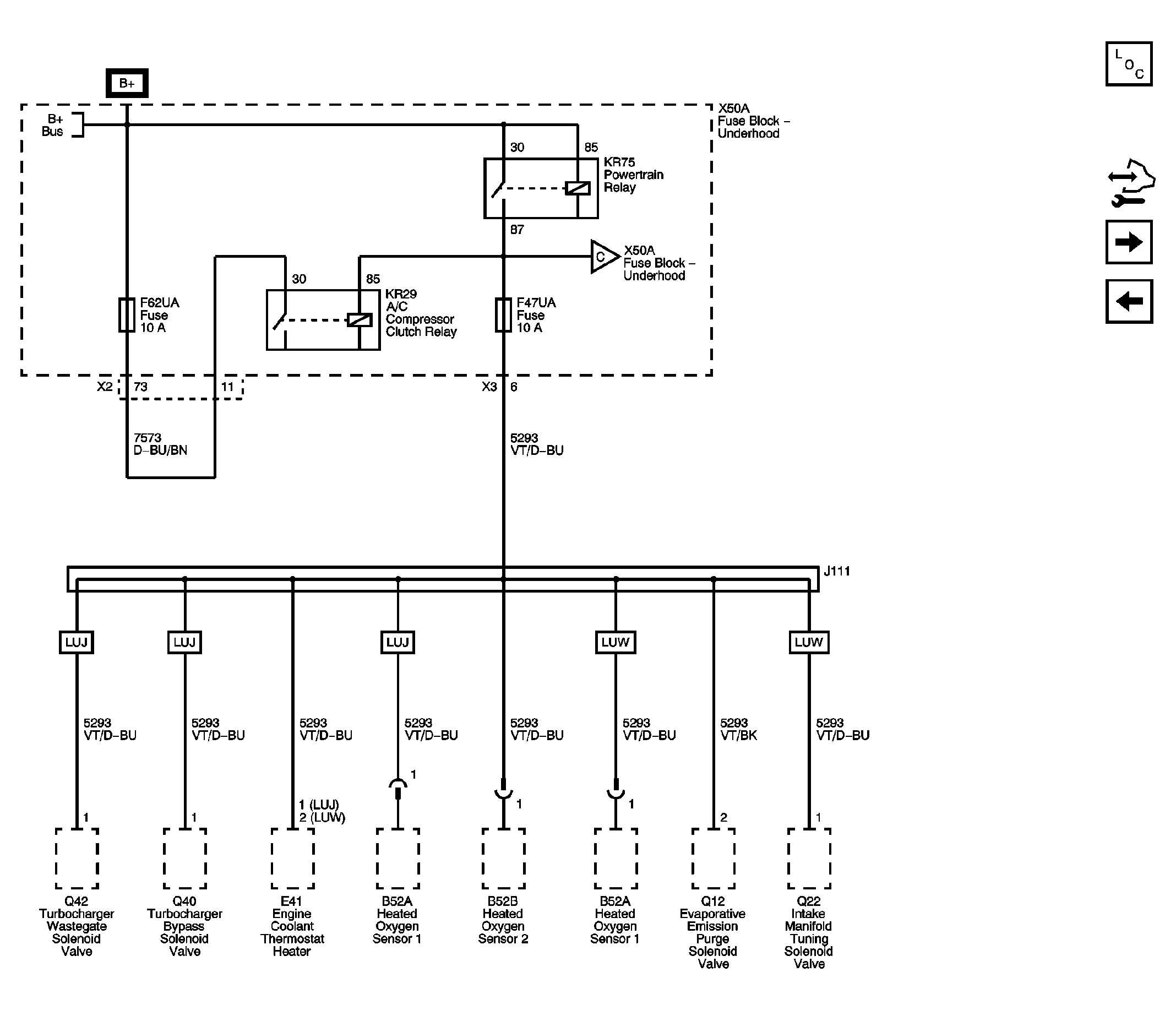

Fig 10: F47UA, F59UA, and F62UA Fuses

Courtesy of GENERAL MOTORS CORP.

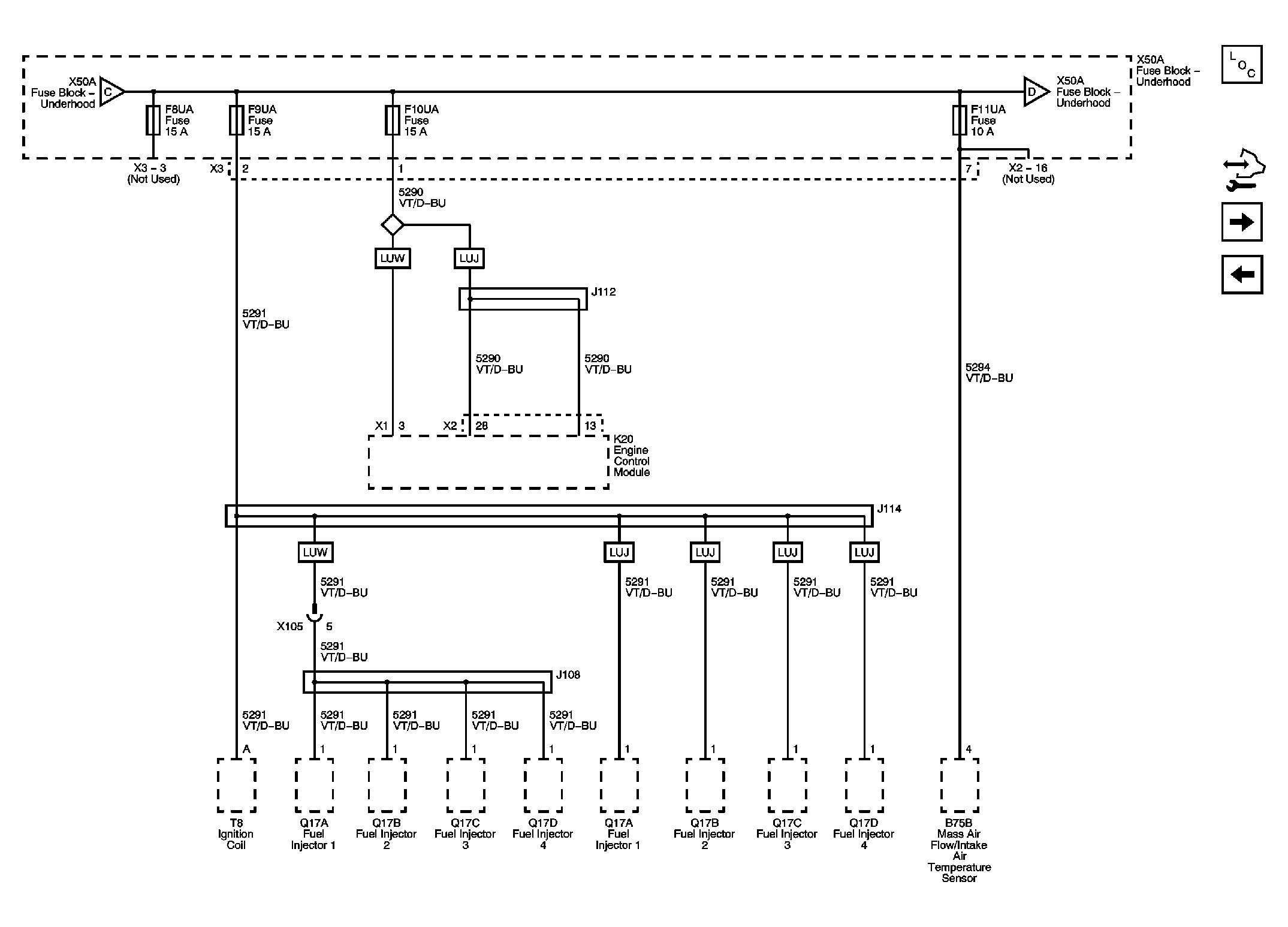

Fig 11: F8UA, F9UA, F10UA, and F11UA Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 12: F42UA and F46UA Fuses

Courtesy of GENERAL MOTORS CORP.

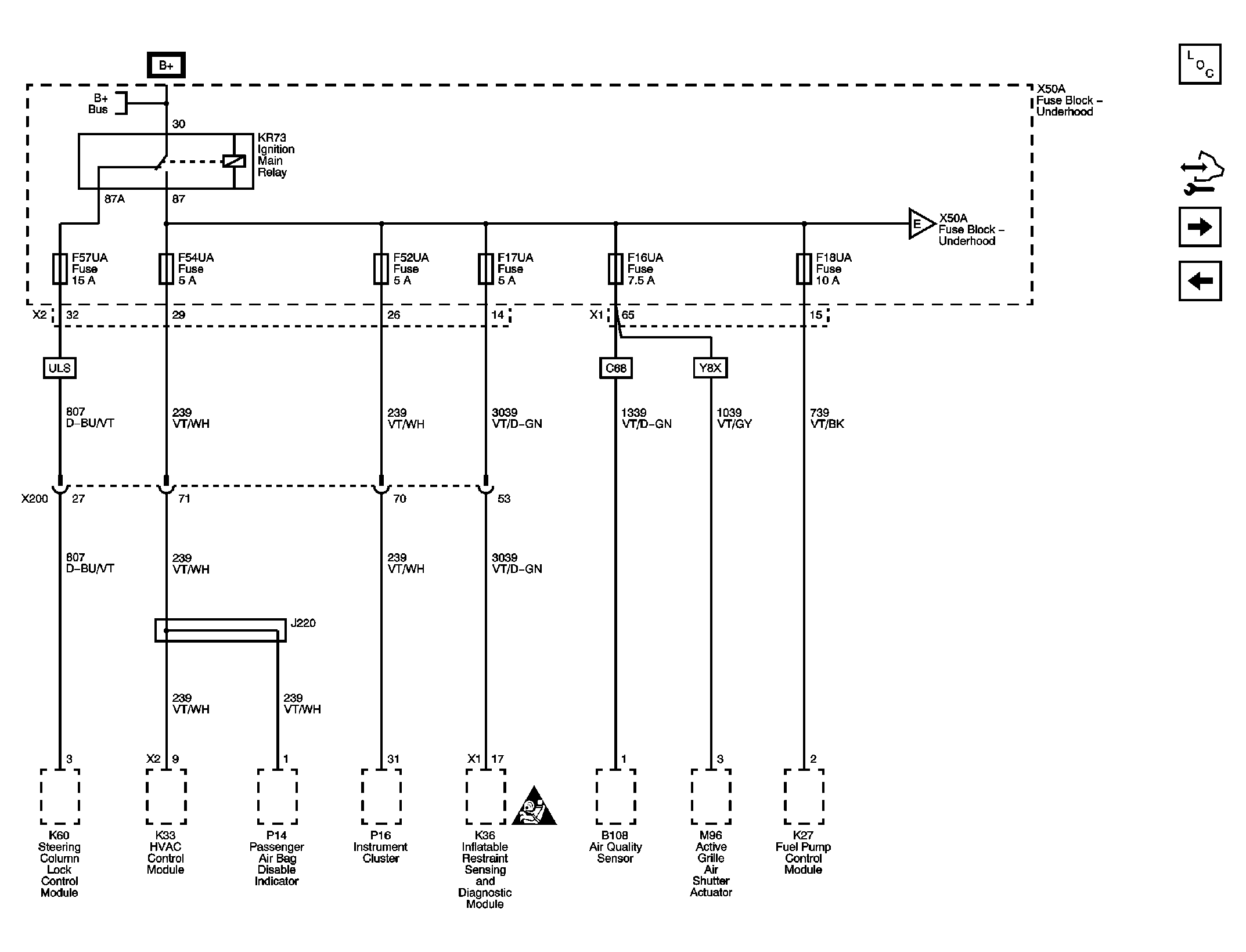

Fig 13: F16UA, F17UA, F18UA, F20UA, F52UA, F54UA, and F57UA Fuses

Courtesy of GENERAL MOTORS CORP.

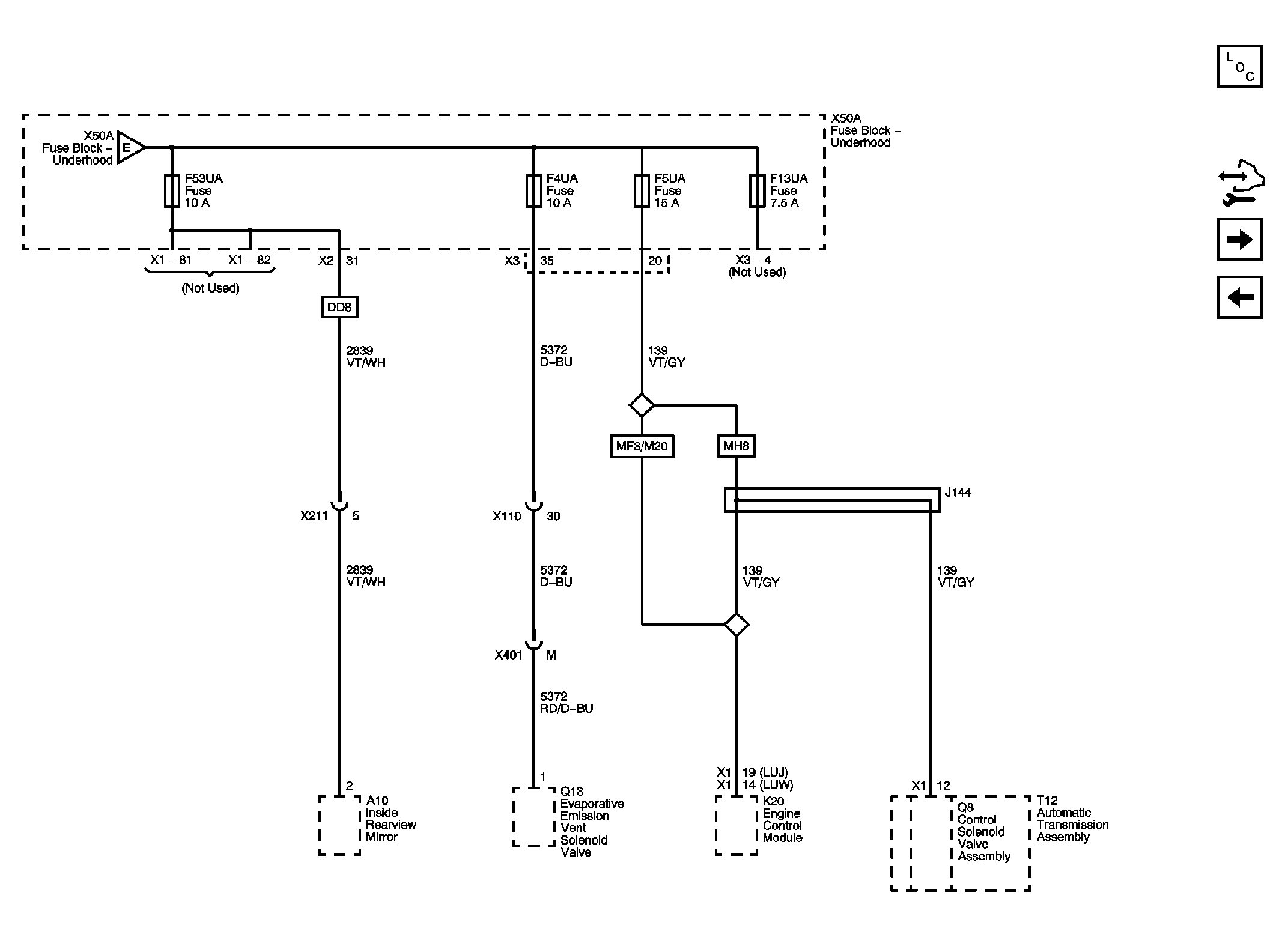

Fig 14: F5UA, F13UA, F53UA, and F65UA Fuses

Courtesy of GENERAL MOTORS CORP.

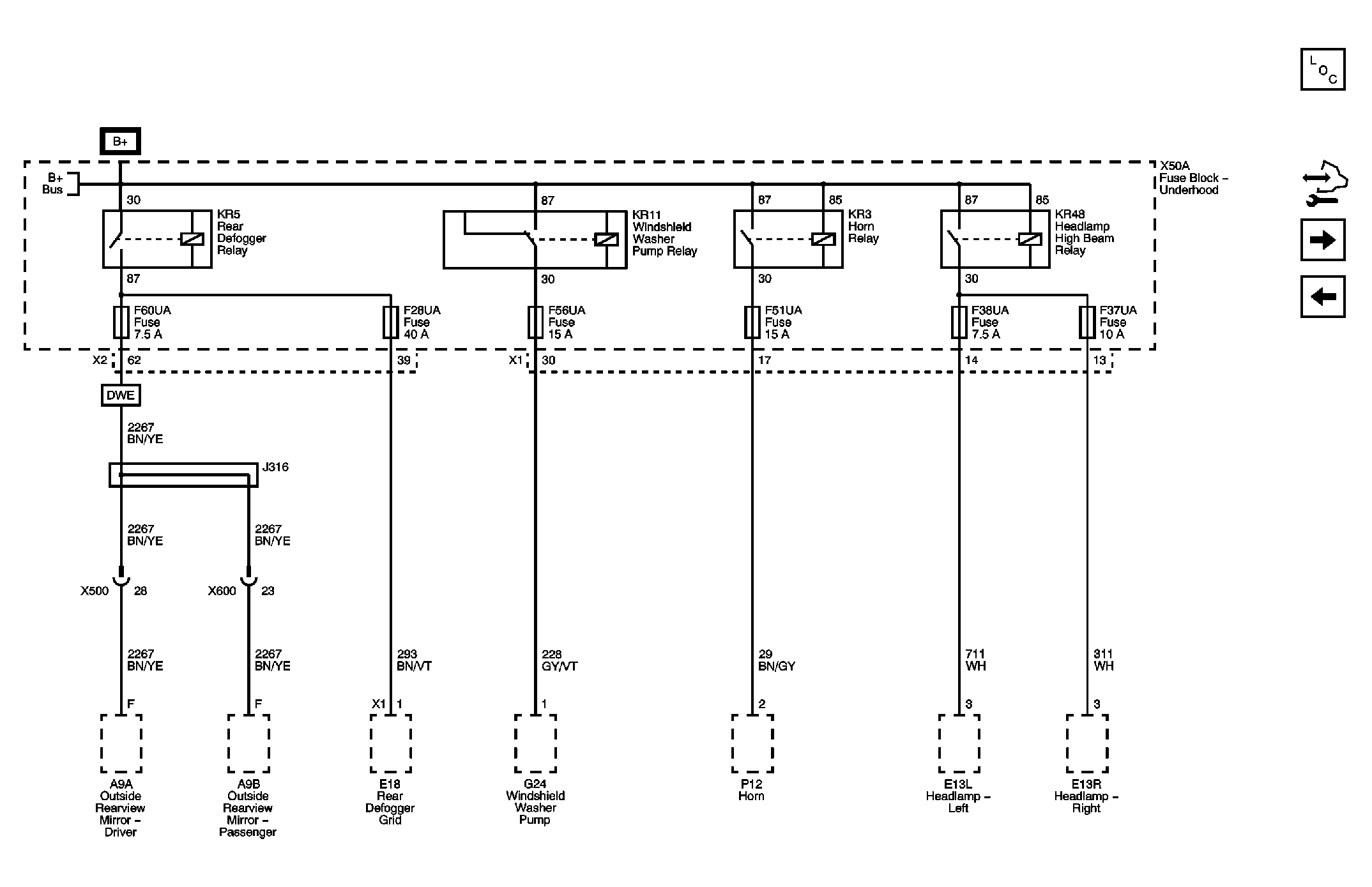

Fig 15: F28UA, F37UA, F38UA, F51UA, F56UA, and F60UA Fuses

Courtesy of GENERAL MOTORS CORP.

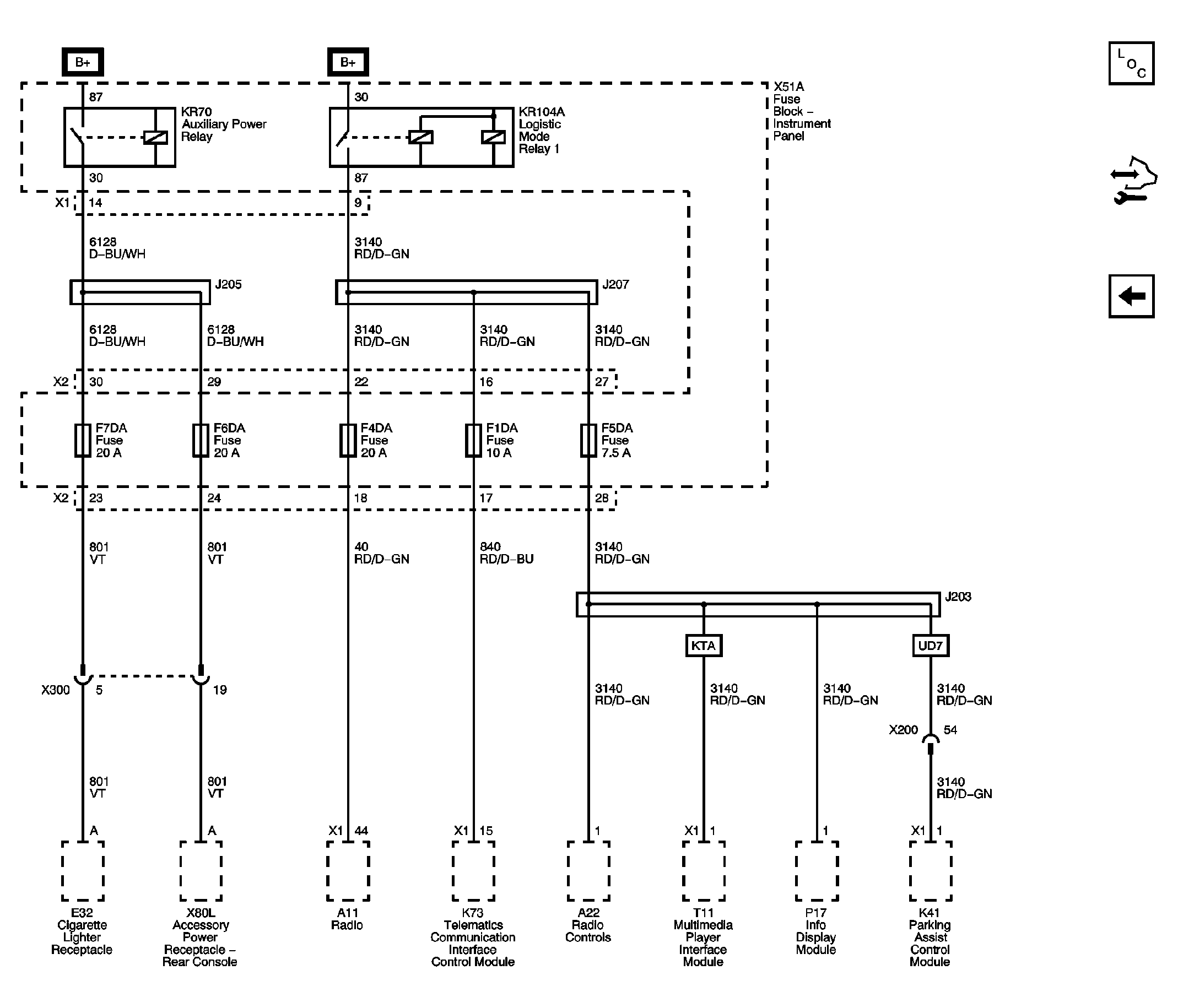

Fig 16: F1DA, F4DA, F5DA, F6DA, and F7DA Fuses

Courtesy of GENERAL MOTORS CORP.
