T8 Ignition Coil (LUW) Connector End View

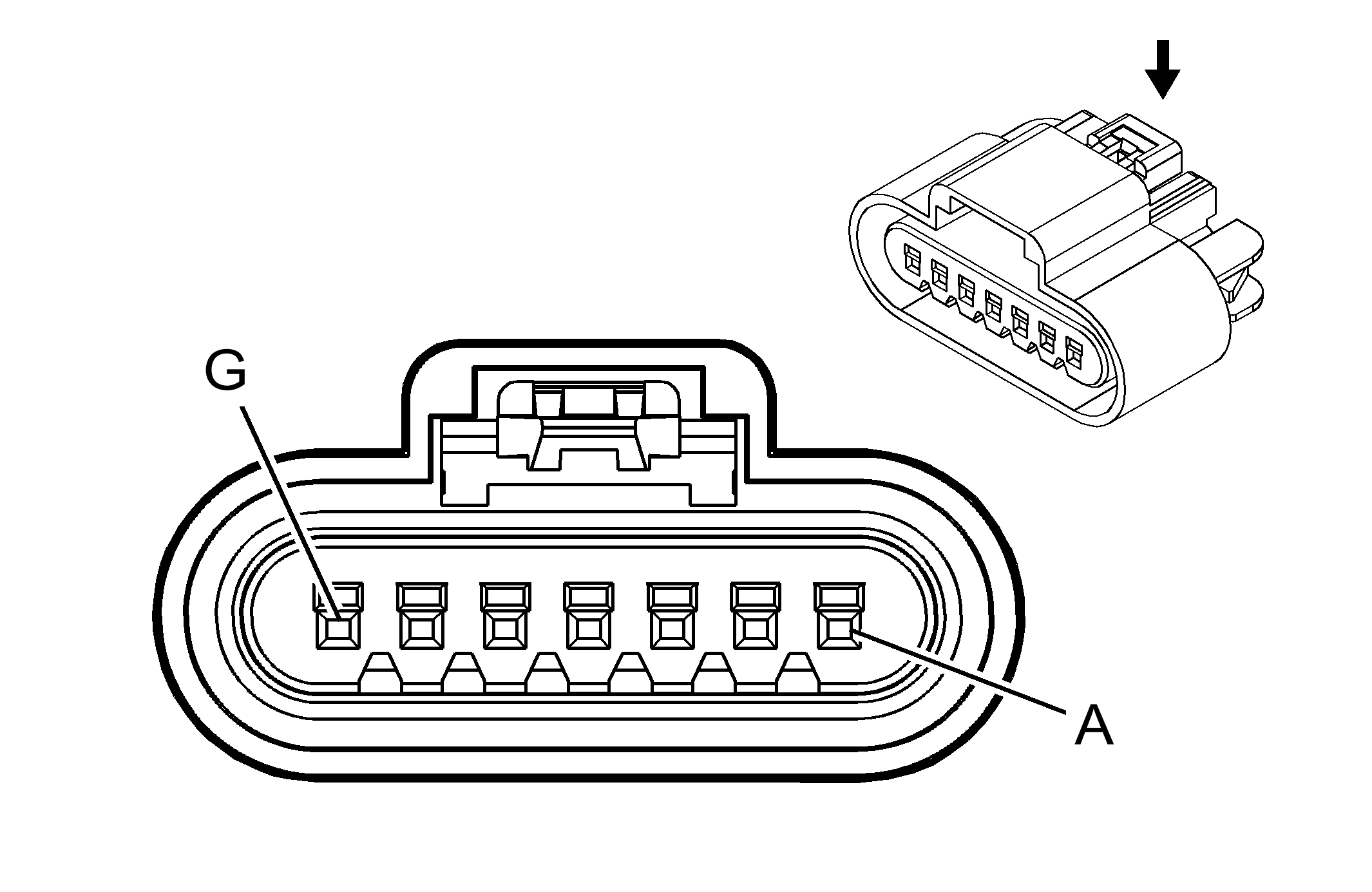

Fig 1: T8 Ignition Coil (LUW) Connector End View

Courtesy of GENERAL MOTORS CORP.

T8 Ignition Coil (LUW)

Pin	Wire	Circuit	Function
A	1 VT/BK	5290	Powertrain Main Relay Fused Supply (1)
B	0.75 BK	50	Ground
C	-	-	Not Used
D	0.75 D-BU/VT	2121	Ignition Control (1)
E	0.75 D-BU/WH	2122	Ignition Control (2)
F	0.75 D-GN/D-BU	2123	Ignition Control (3)
G	0.75 YE/D-BU	2124	Ignition Control (4)

Connector Part Information  Harness: Engine OEM: 13604541 Service: Pending Description: 7-Way F (BK/VT)

Terminal Part Information  Terminated Lead: Pending Release Tool: Pending Diagnostic Test Probe: Pending
