M9 Brake Booster Pump Motor Connector End Views

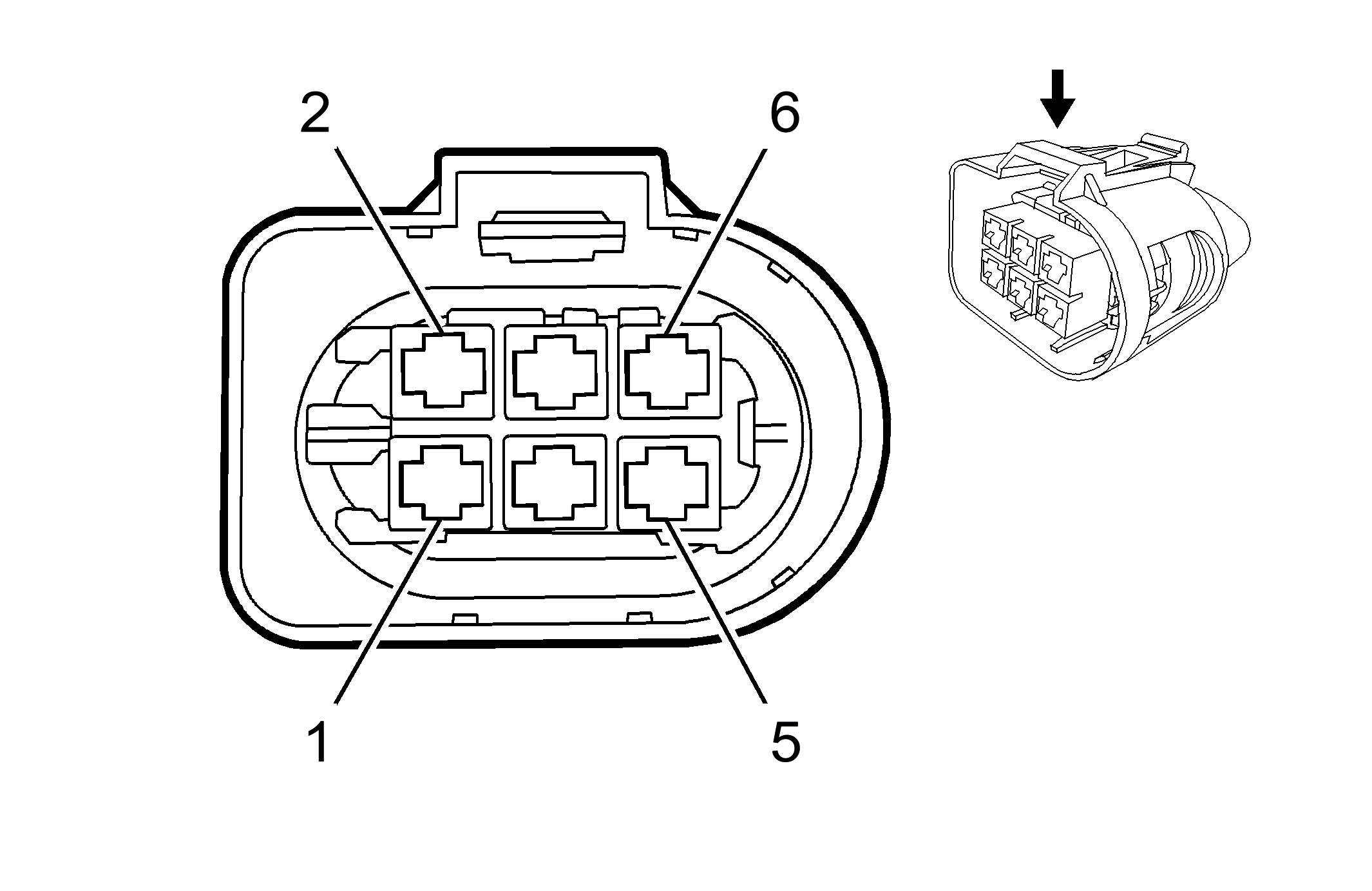

Fig 1: M9 Brake Booster Pump Motor Connector End Views

Courtesy of GENERAL MOTORS CORP.

M9 Brake Booster Pump Motor

Pin	Wire	Circuit	Function
1	2.5 BK	50	Ground
2	0.5 BN	6305	Brake Vacuum Switch Signal
5	2.5 RD/VT	40	Battery Positive Voltage

Connector Part Information  Harness: Body OEM: 09401630 Service: Pending Description: 6-Way Female (BK)

Terminal Part Information  Terminated Lead: Pending Release Tool: Pending Diagnostic Test Probe: Pending
