K20 Engine Control Module X2 (LUW) Connector End Views

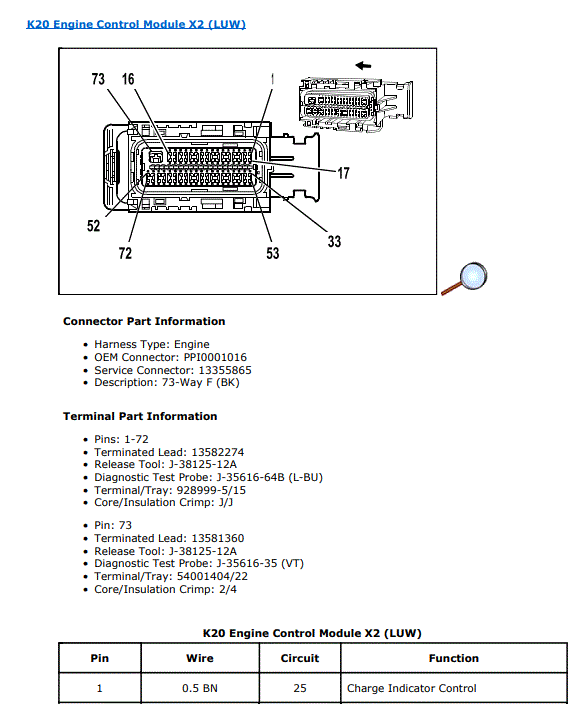

Fig 1: K20 Engine Control Module X2 (LUW) Connector End Views (1 of 4)

Courtesy of GENERAL MOTORS CORP.

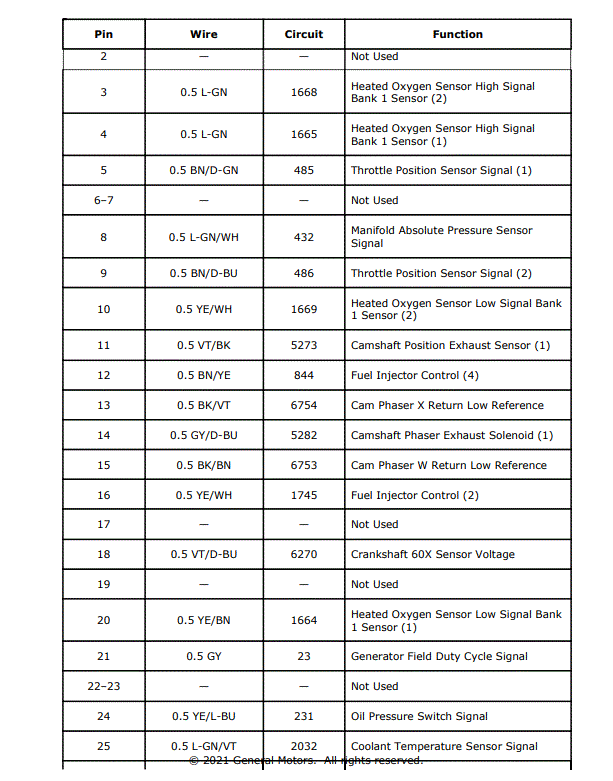

Fig 2: K20 Engine Control Module X2 (LUW) Connector End Views (2 of 4)

Courtesy of GENERAL MOTORS CORP.

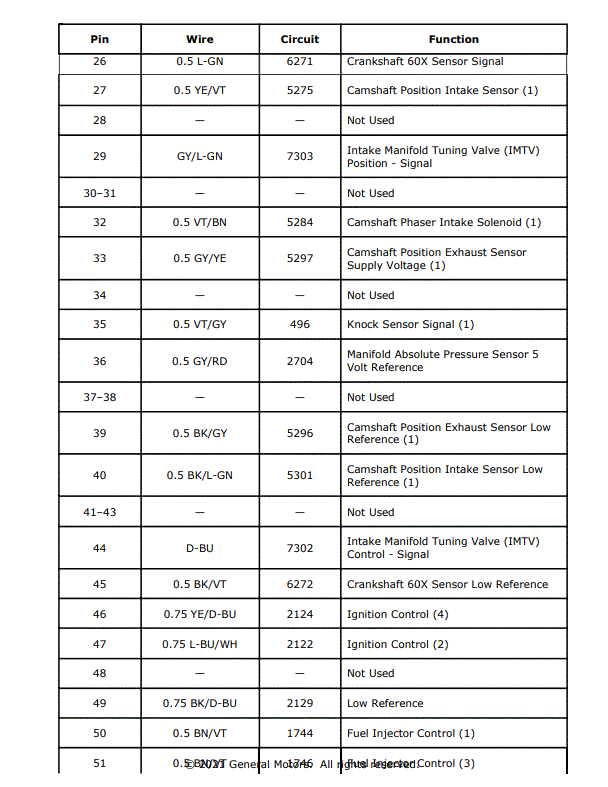

Fig 3: K20 Engine Control Module X2 (LUW) Connector End Views (3 of 4)

Courtesy of GENERAL MOTORS CORP.

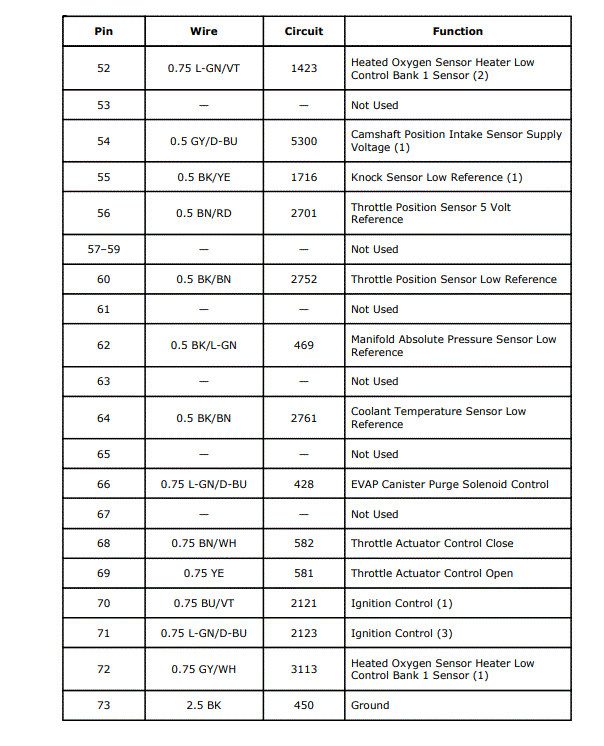

Fig 4: K20 Engine Control Module X2 (LUW) Connector End Views (4 of 4)

Courtesy of GENERAL MOTORS CORP.
