Wiring Systems And Power Management - Component Connector End Views (1 Of 4)
>>
Component Connector End Views
>>
B23E Camshaft Position Sensor - Exhaust (LUW)
B23E Camshaft Position Sensor - Exhaust (LUW)

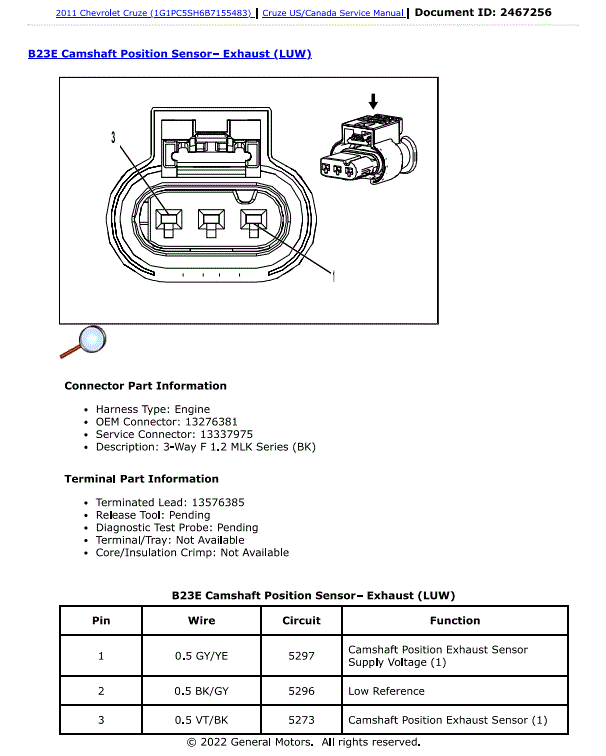

Fig 1: B23E Camshaft Position Sensor - Exhaust (LUW) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
