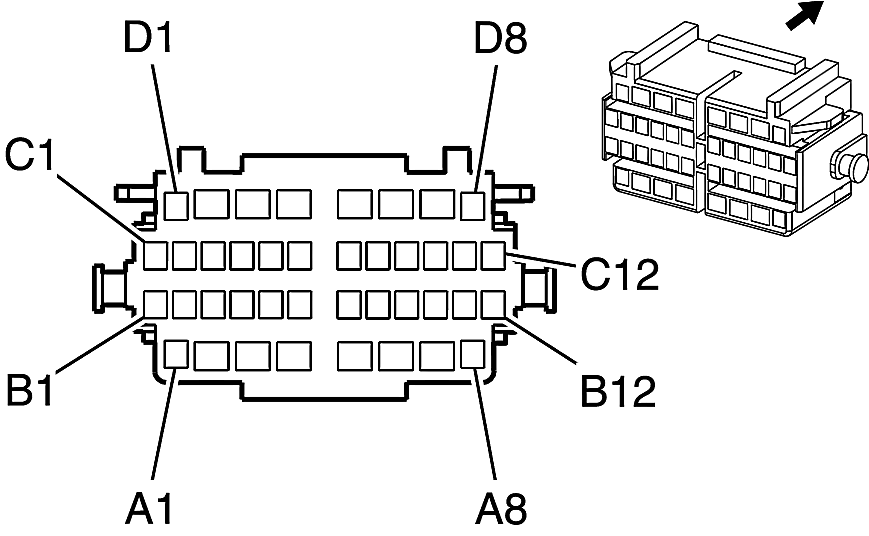

A22 Radio Controls (UAG or UFD) Connector End View
Courtesy of GENERAL MOTORS CORP. A22 Radio Controls (UAG or UFD)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 RD/D-GN |
3140 |
Battery Positive Voltage |
| 2 |
0.5 BK |
1650 |
Ground |
| 3 |
- |
- |
Not Used |
| 4 |
0.75 D-GN/D-BU |
7532 |
Linear Interconnect Network Bus 10 |
| 5-8 |
- |
- |
Not Used |
Connector Part Information
- Harness: Instrument Panel
- OEM: 15406142
- Service: Pending
- Description: 8-Way F YESC Kaizen Series (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-21
- Diagnostic Test Probe: J-35616-64B (L-BU)
|
