Instrument Cluster Wiring Schematics

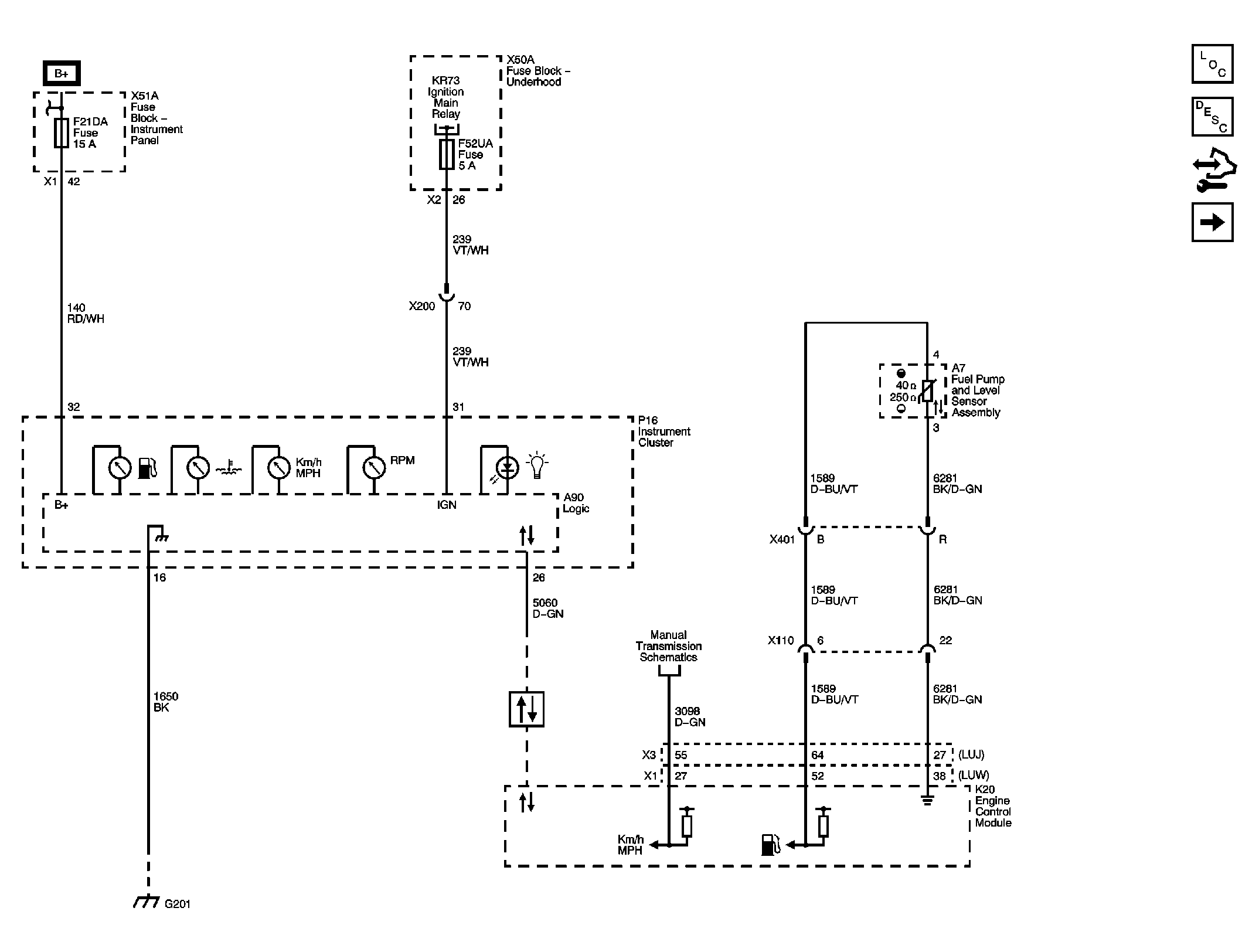

Fig 1: Power, Ground, Gauges, and Serial Data Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

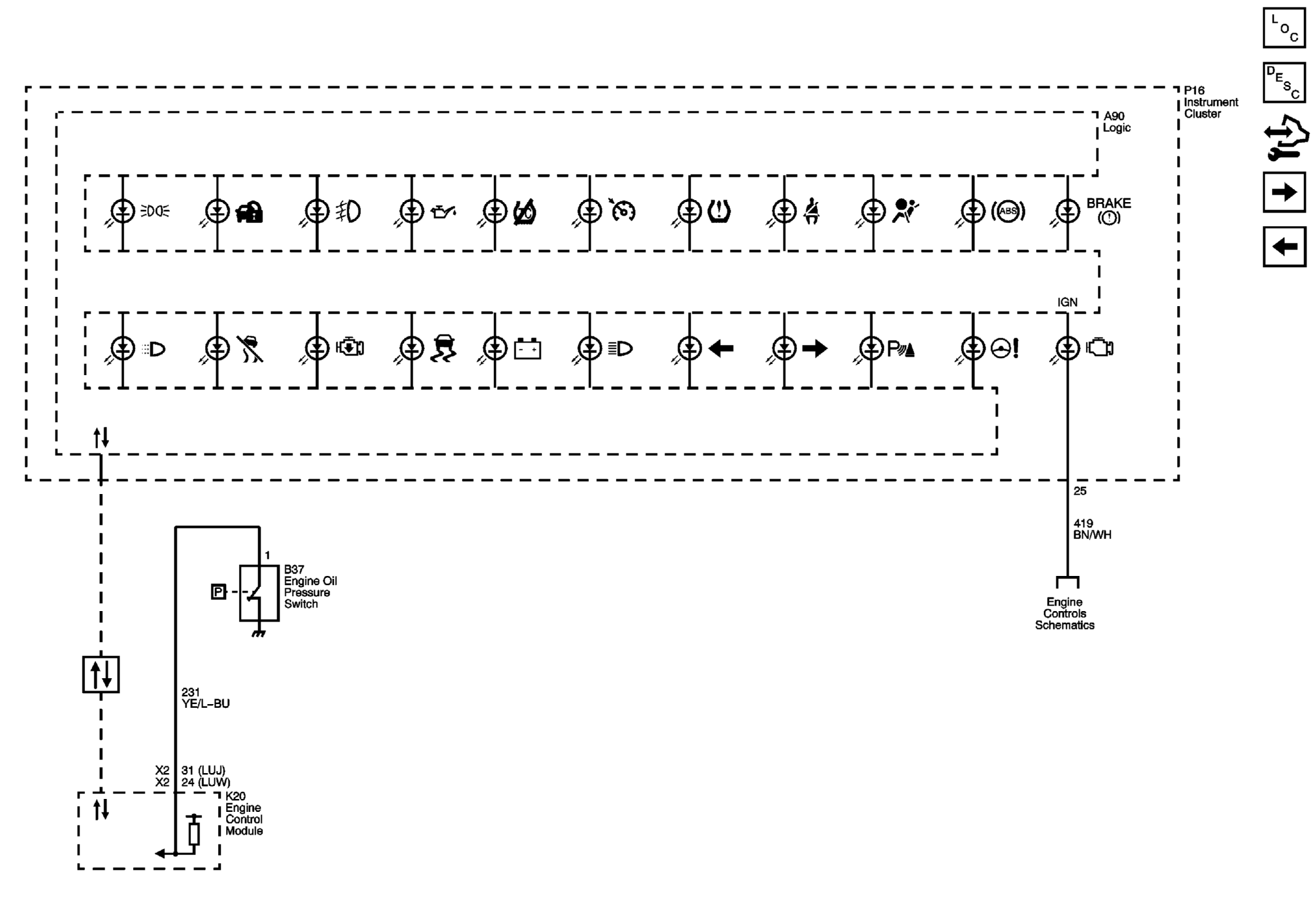

Fig 2: Indicators Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Air Temperature and Driver Information Center Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
