Driver Information Display Replacement

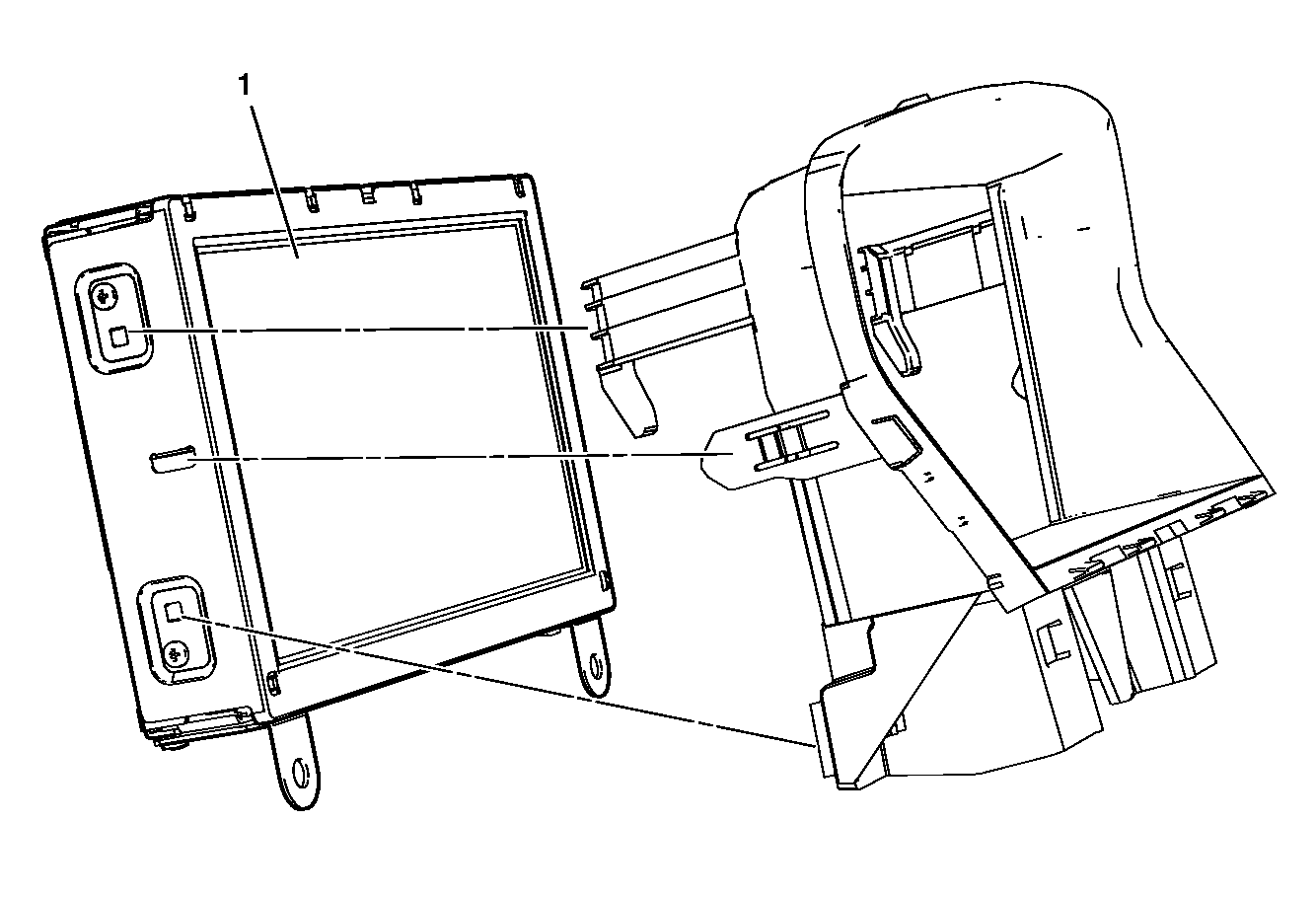

Fig 1: Driver Information Display
GM2027956Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove driver information display bezel. Refer to Driver Information Display Bezel Replacement .
1 Driver Information Display
Procedure:
Unclip the driver information display bezel from driver information display (Qty: 6).
