Clutch Master Cylinder Reservoir Hose Replacement (Left Hand Drive)

Clutch Master Cylinder Reservoir Hose Replacement (Left Hand Drive)

Removal Procedure





Note: Do NOT disconnect engine coolant hoses.

1. Remove the radiator surge tank clip (2).
2. Remove the radiator surge tank (1).
3. Position the radiator surge tank (1) aside.





Note: Before disconnecting the reservoir tank hose, remove the clutch/brake fluid from the reservoir tank.

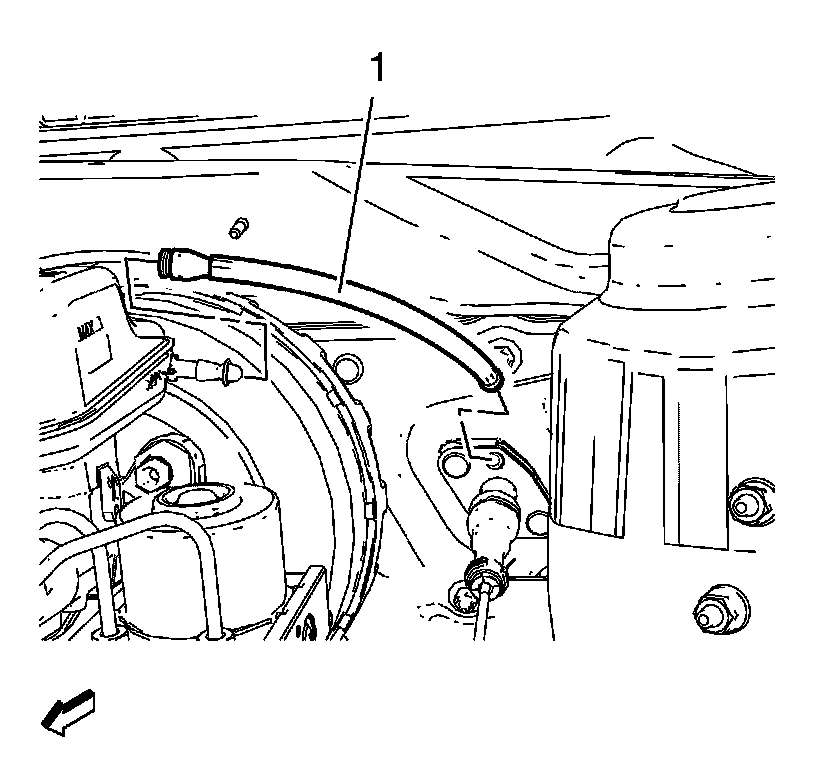

4. Remove the clutch master cylinder reservoir hose (1) from the reservoir tank and the master cylinder.

Installation Procedure




1. Install the clutch master cylinder reservoir hose (1) to the reservoir tank and the master cylinder.
2. Fill the reservoir with clutch/brake fluid up to the MAX level.




3. Install the radiator surge tank (1).
4. Install the radiator surge tank clip (2).
