Home >> Chevrolet >> 2011 >> Cruze L4-1.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Acceleration/Deceleration Sensor >> Diagrams

Acceleration/Deceleration Sensor: Diagrams

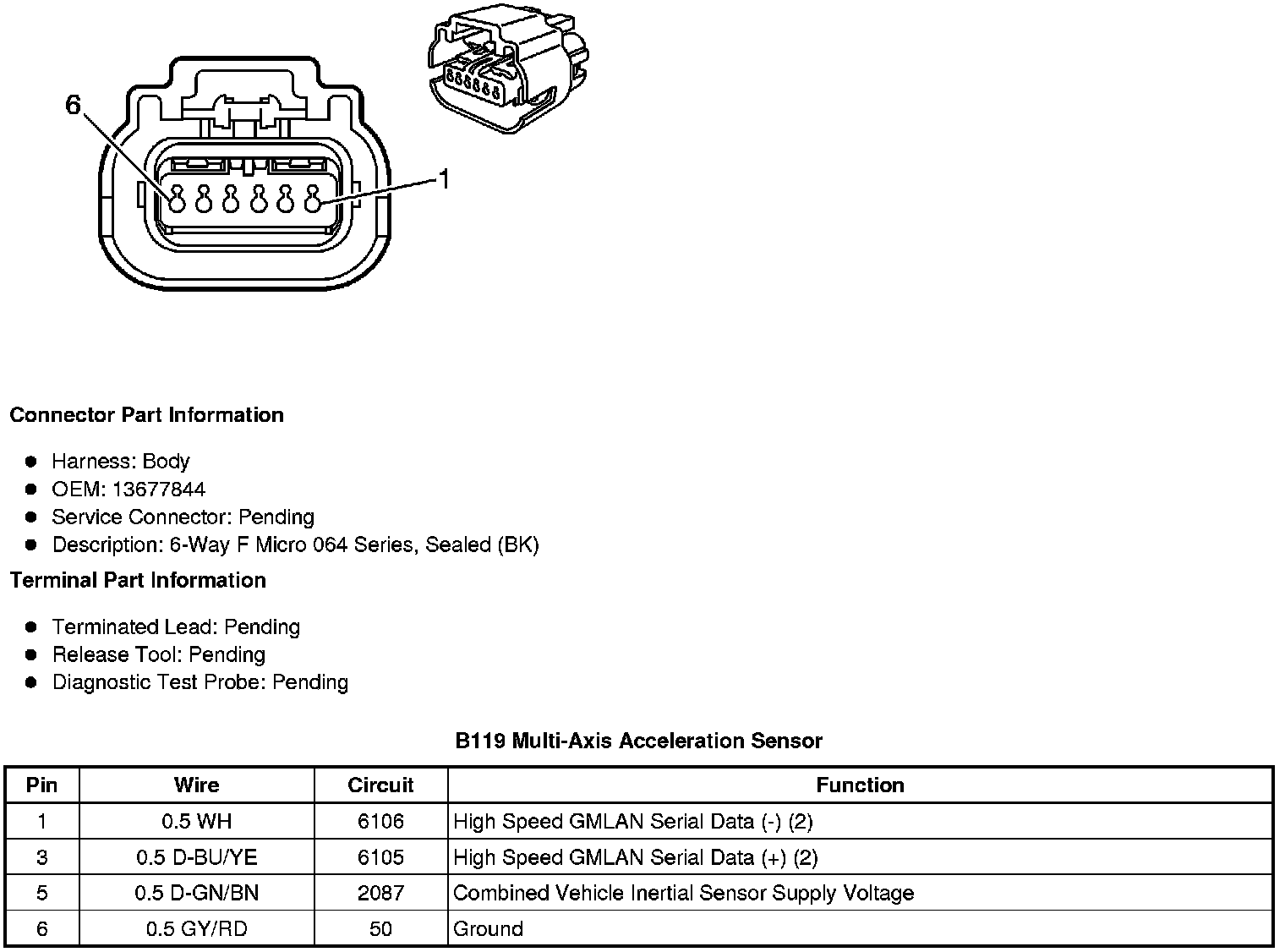

Component Connector End Views

B119 Multi-Axis Acceleration Sensor
