Sunroof / Moonroof Switch: Locations

Passenger Compartment/Roof Component Views

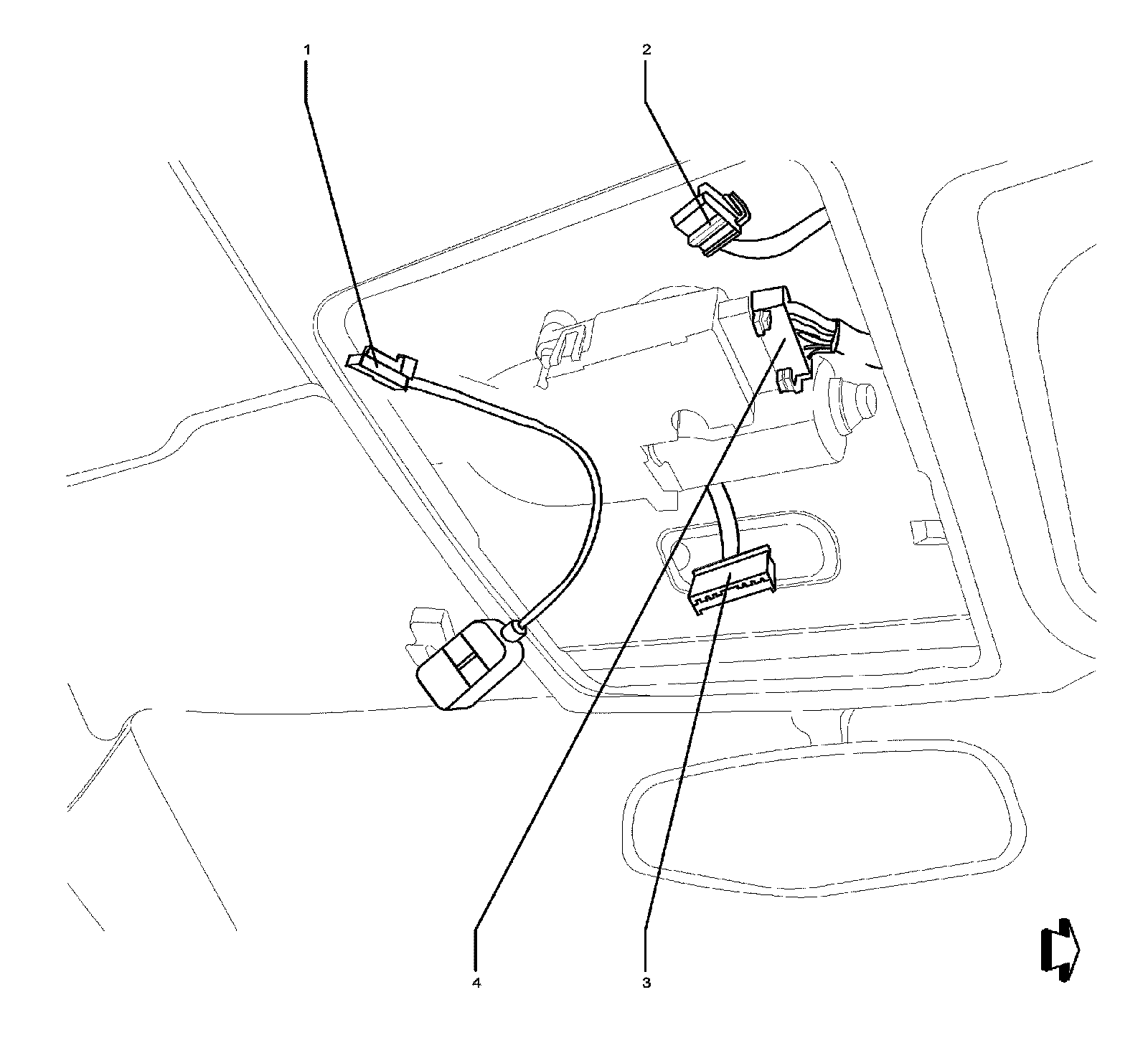

Overhead Console Components




1 - S72 Sunroof Switch
2 - S88 Sunroof Ventilation Switch
3 - E37B Dome / Reading Lamps - 2nd Row
4 - K61 Sunroof Control Module
