Air Bag: Diagrams




Component Connector End Views

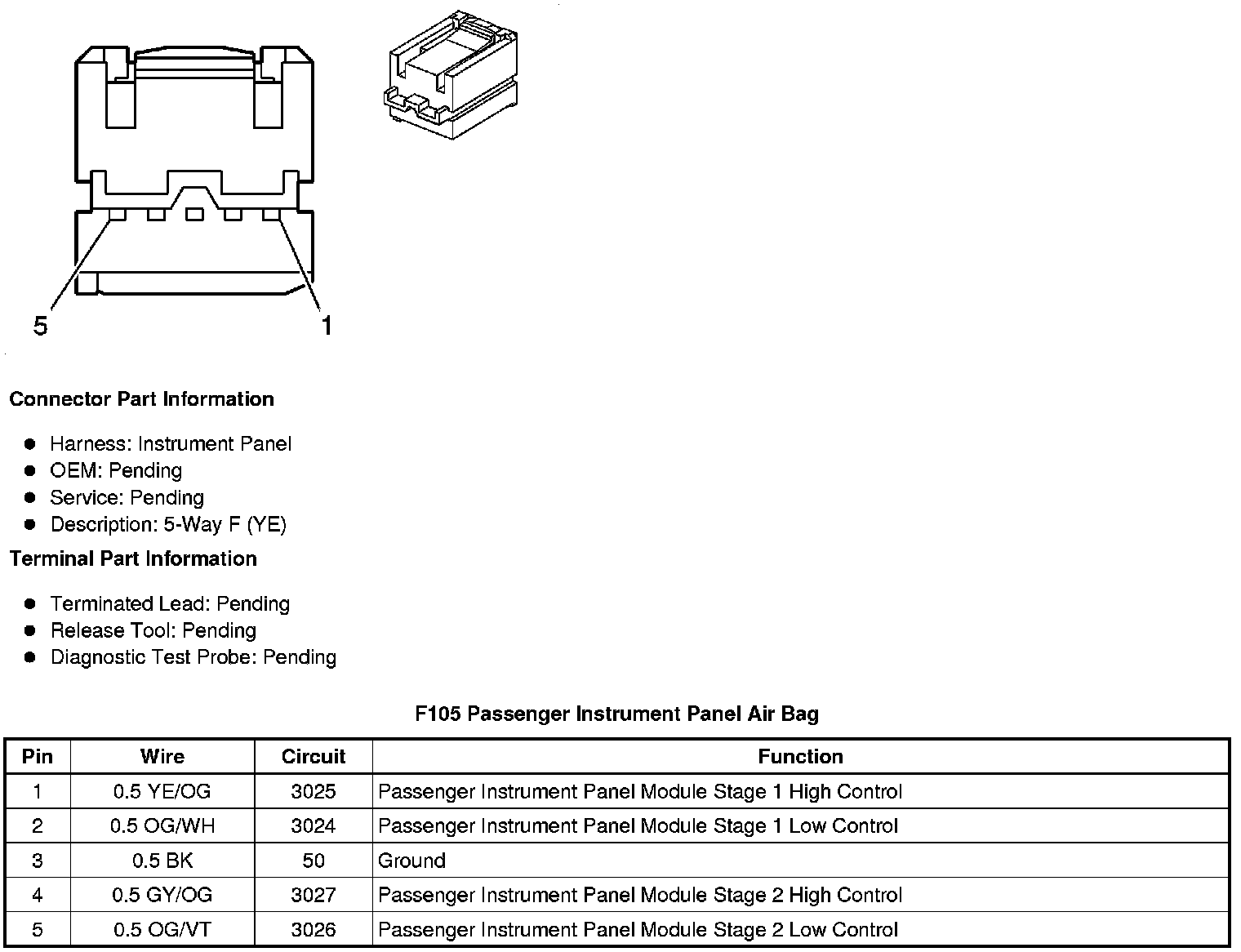

F105 Passenger Instrument Panel Air Bag






F105L Roof Rail Air Bag - Left

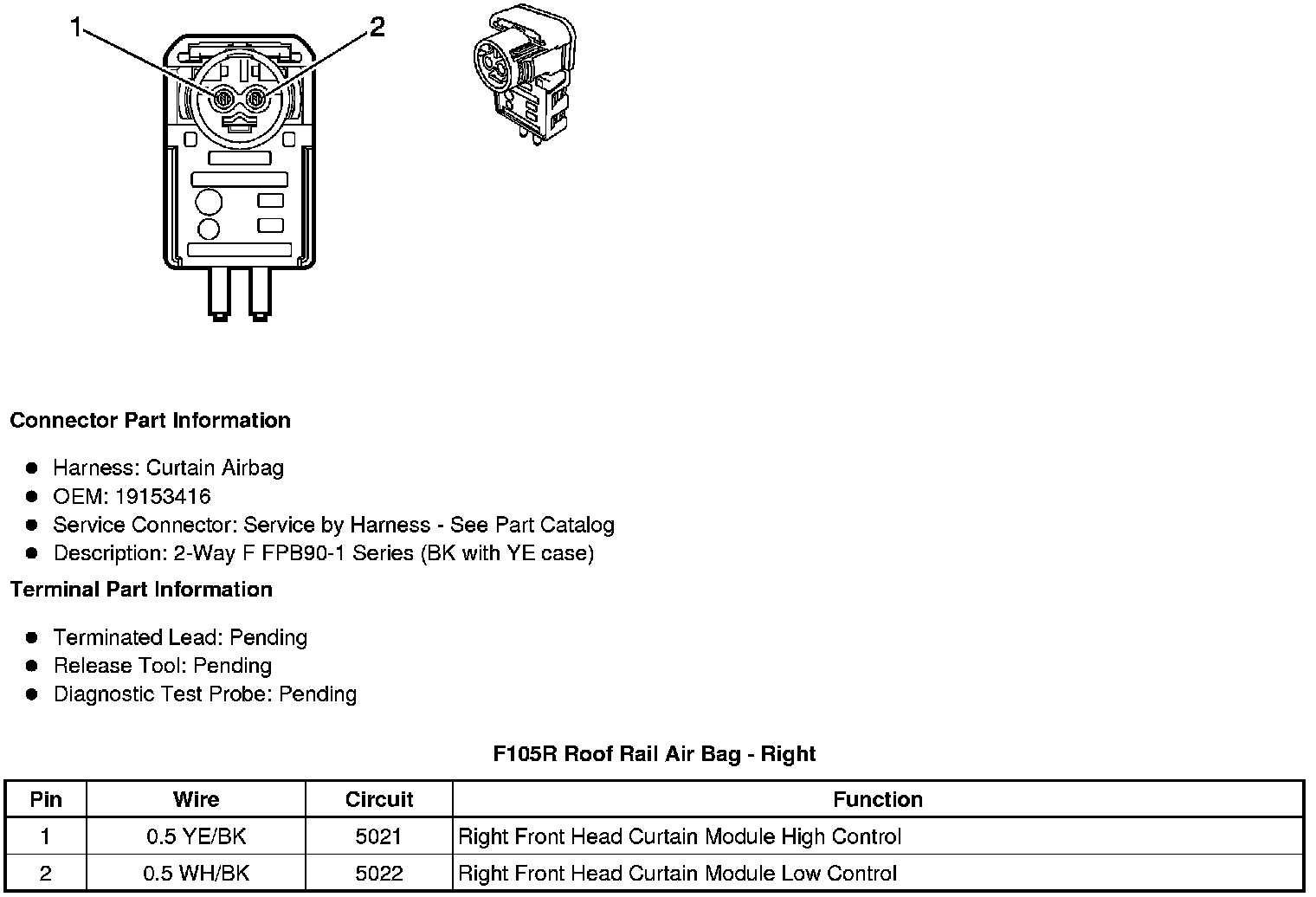

F105R Roof Rail Air Bag - Right
