Parking Assist Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

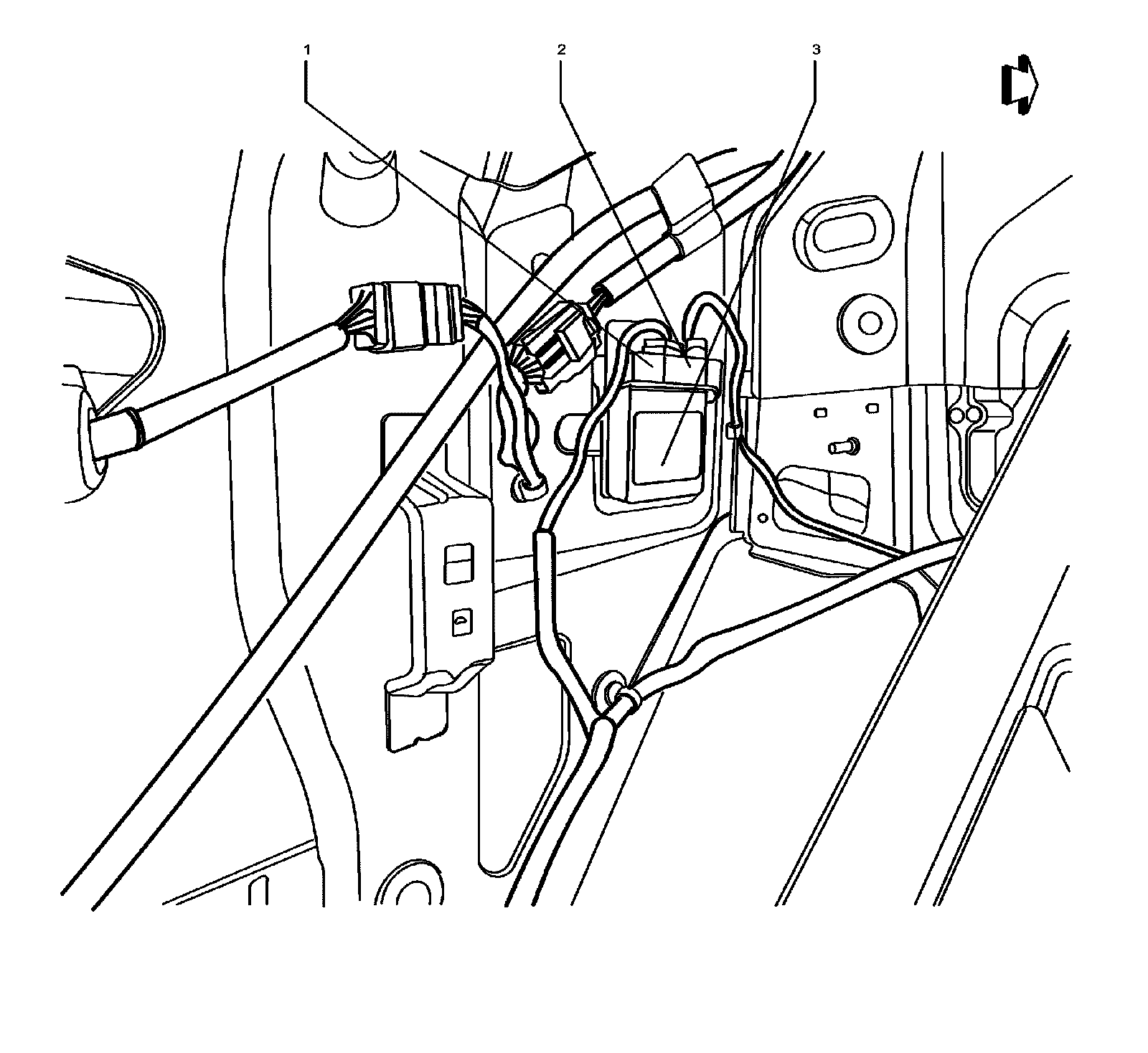

Left Side of the Luggage Compartment Components




1 - X2 Parking Assist Control Module X2
2 - X1 Parking Assist Control Module X1
3 - K41 Parking Assist Control Module
