PCV Valve Hose: Service and Repair

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (1.6L LDE, LXV, and 1.8L 2H0)

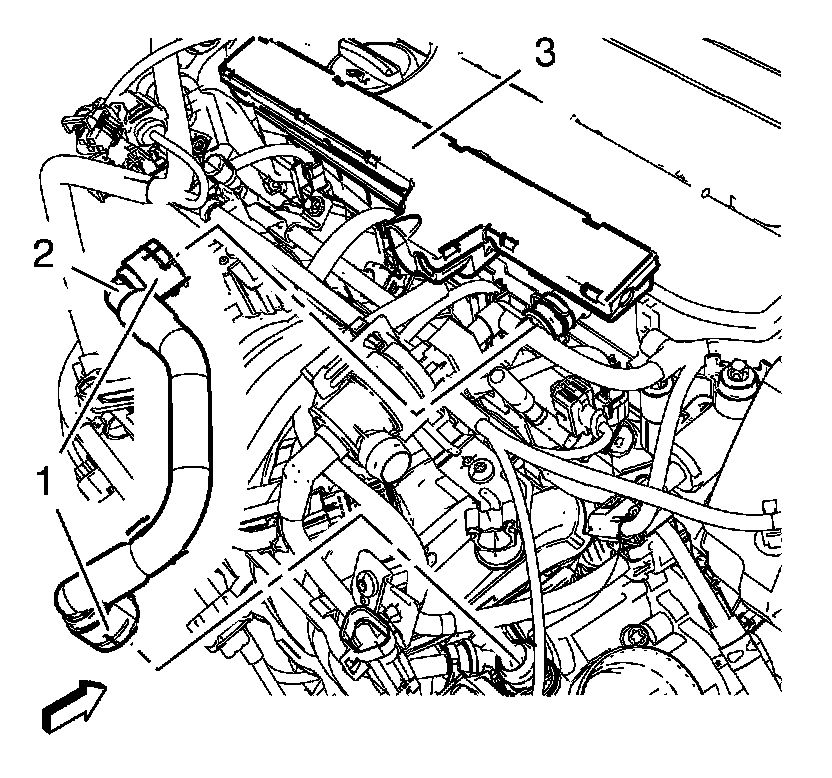

Removal Procedure

1. Open the hood.




2. Unclip the ECM wiring harness guide (3) from the cylinder head cover.
3. Disconnect the 2 positive crankcase ventilation tube connectors (1).
4. Remove the positive crankcase ventilation tube (2).

Installation Procedure




1. Install the positive crankcase ventilation tube (2).
2. Connect the 2 positive crankcase ventilation tube connectors (1).
3. Clip in the ECM wiring harness guide (3) to the cylinder head cover.
4. Close the hood.
