X900




Harness Routing Views

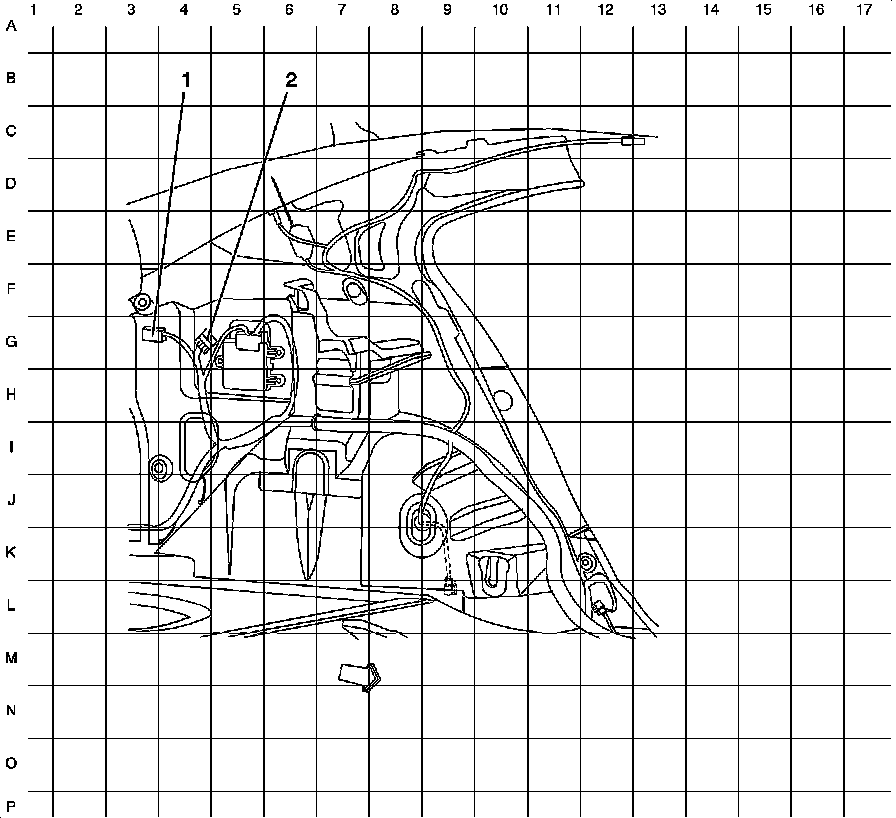

Body Harness Routing 10 of 10




1 - X912 Body Harness and Tail Lamp Left Harness
2 - X900 Body Harness and Liftgate Harness
