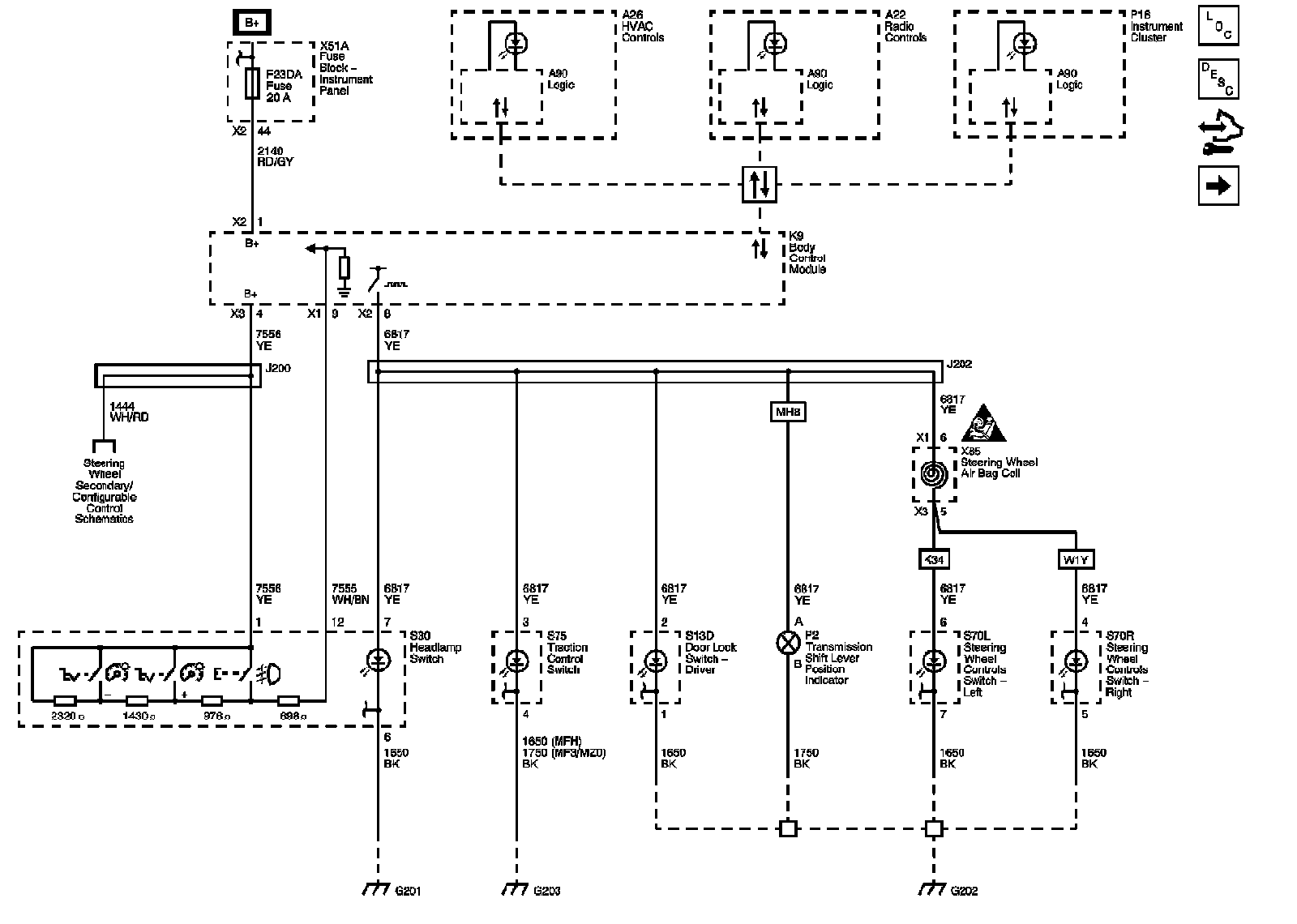

Home >> Chevrolet >> 2011 >> Cruze L4-1.8L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights Dimming Schematics >> Interior Lights Dimming Schematic 1
