Lifter / Lash Adjuster: Service and Repair

Valve Lifter Replacement

Special Tools

EN-845 - Suction Device

For equivalent regional tools, refer to Special Tools (Special Tools).

Removal Procedure

1. Remove the camshaft. Refer to Camshaft Replacement (Camshaft Replacement).





Note: Mark the assignments.

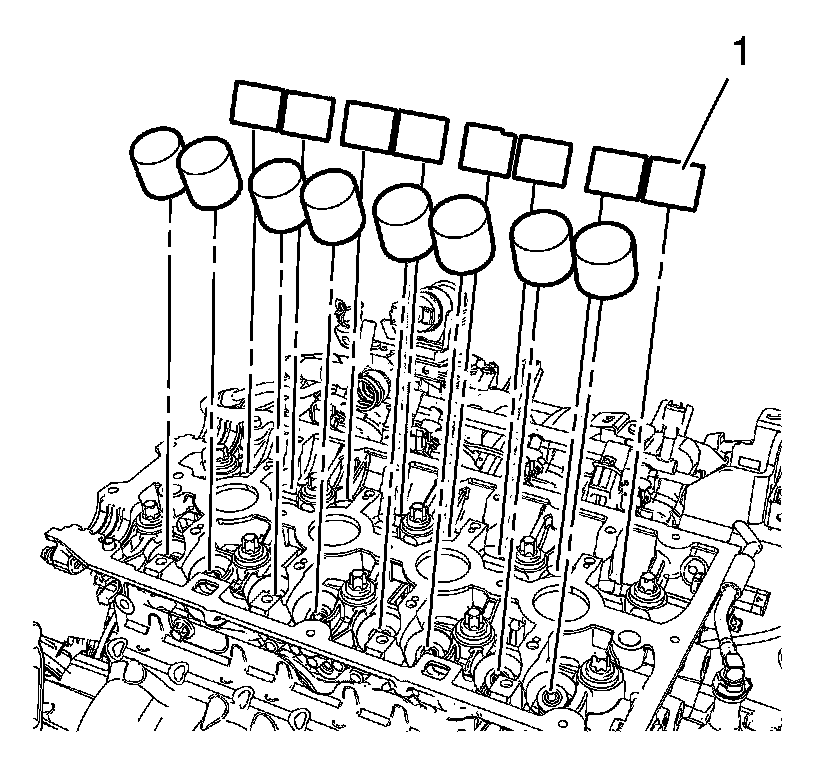

2. Remove the 16 valve lifter (1) use the EN-845 - suction device.

Installation Procedure





Note: Observe the correct assignment.

Note: Coat the sliding surfaces with NEW engine oil.

1. Install the 16 valve lifter (1) use the EN-845 - suction device.
2. Install the camshaft. Refer to Camshaft Replacement (Camshaft Replacement).
