Passenger Compartment/Roof Component Views




Passenger Compartment/Roof Component Views

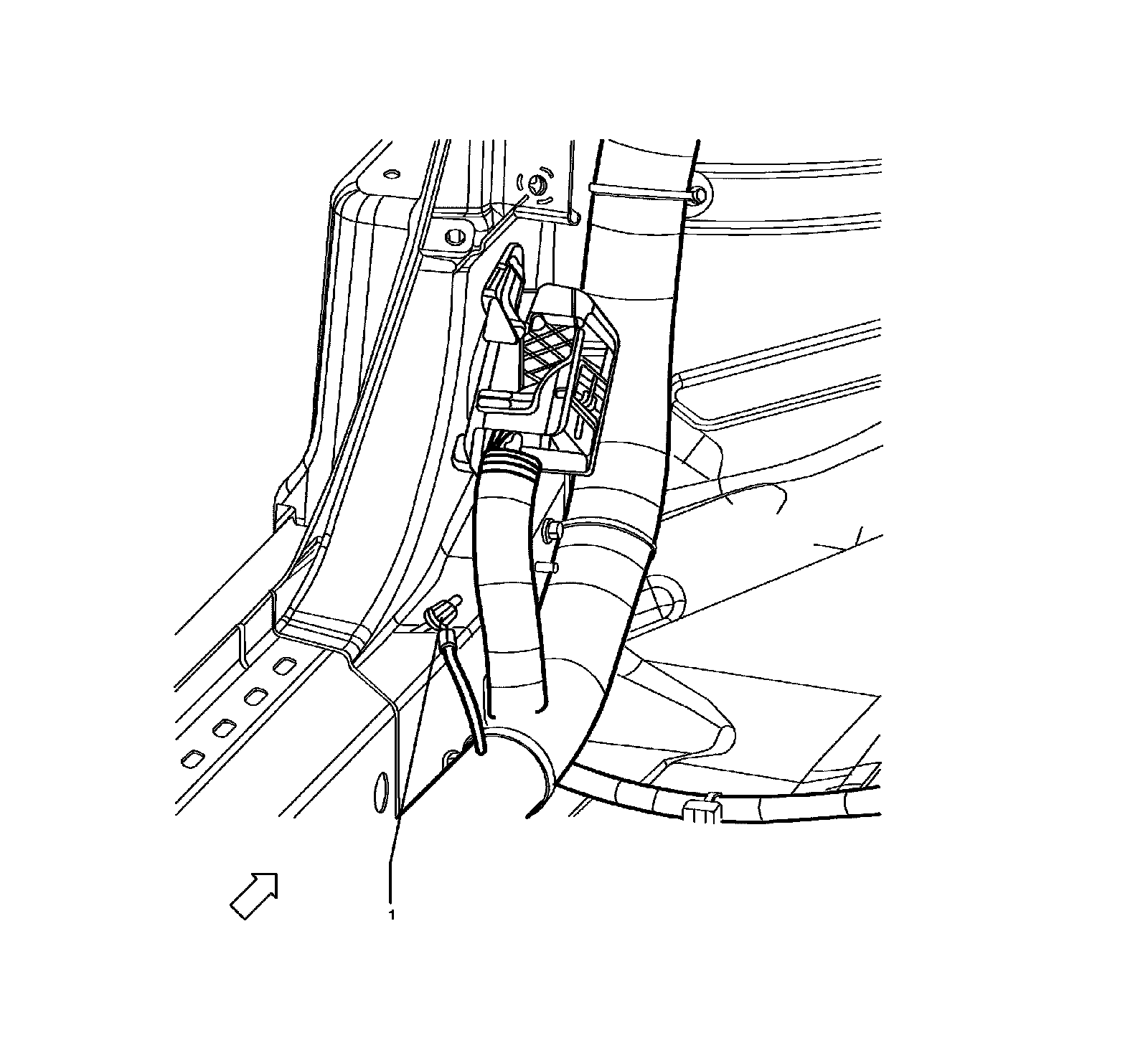

Lower Left Front of the Passenger Compartment Components




1 - G305 A-Pillar - Left
