Powertrain Component Views




Powertrain Component Views

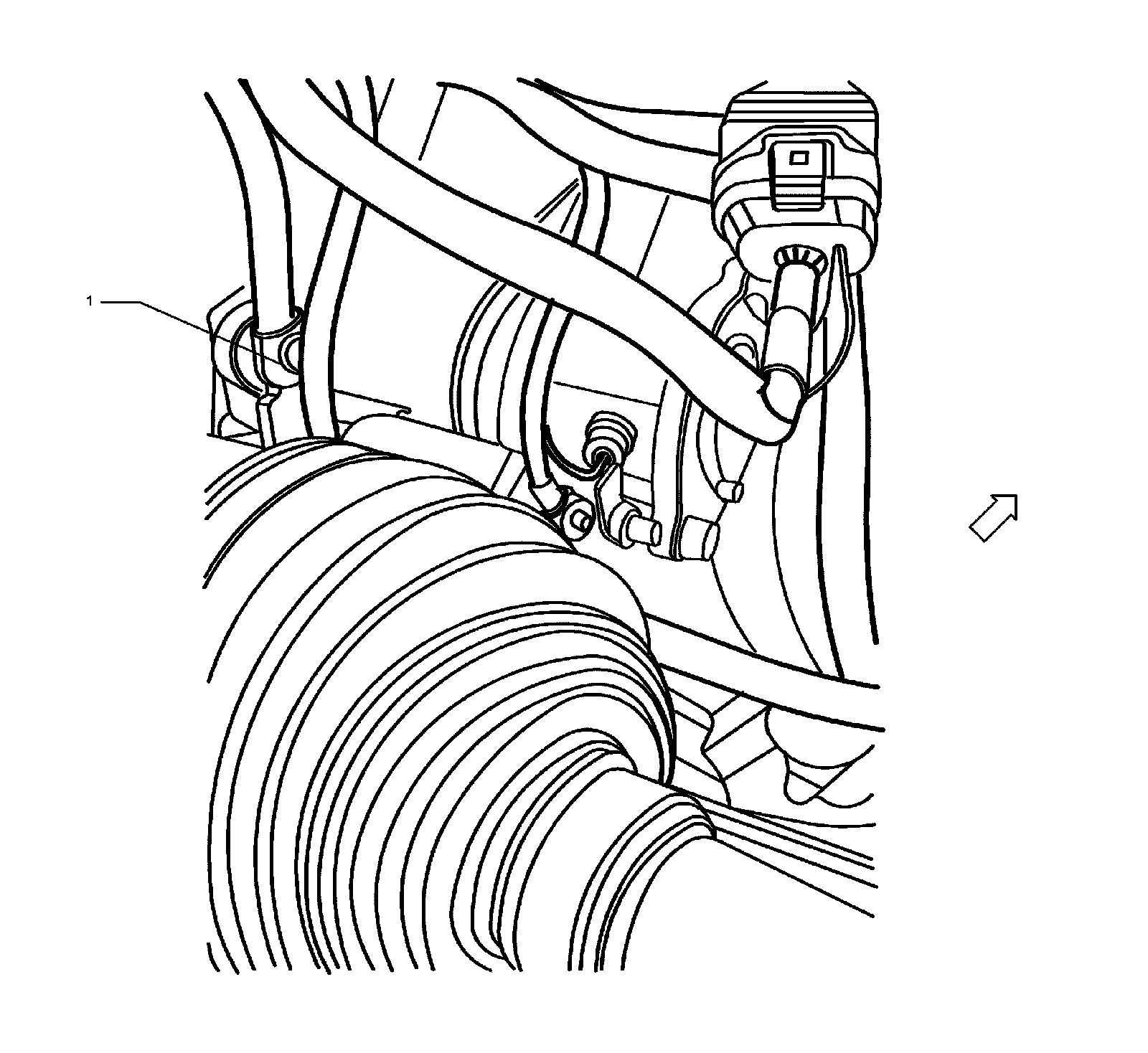

Lower Rear of the Engine Components 2 of 2




1 - G102 Engine
