Front of Vehicle/Engine Compartment Component Views

Front of Vehicle/Engine Compartment Component Views

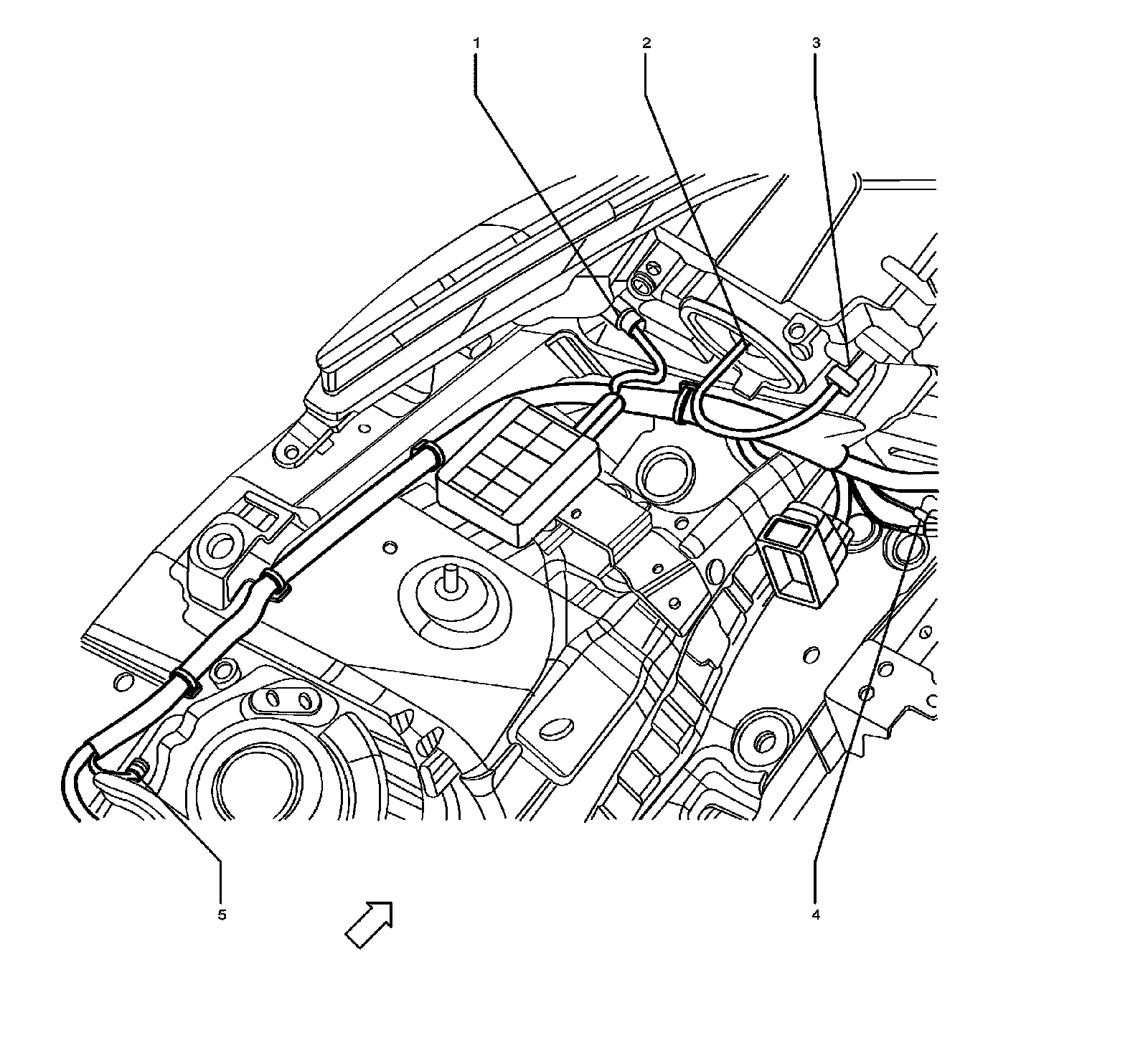

Left Front of the Vehicle Components




1 - E4N Park/Turn Signal Lamp - Left
2 - E13L Headlamp Assembly - Left
3 - M29L Headlamp Leveling Actuator - Left
4 - G101 Engine Compartment - Front Left
5 - G103 Engine Compartment - Front Left
