Home >> Chevrolet >> 2011 >> Cruze L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors >> Outside Rearview Mirror Schematics

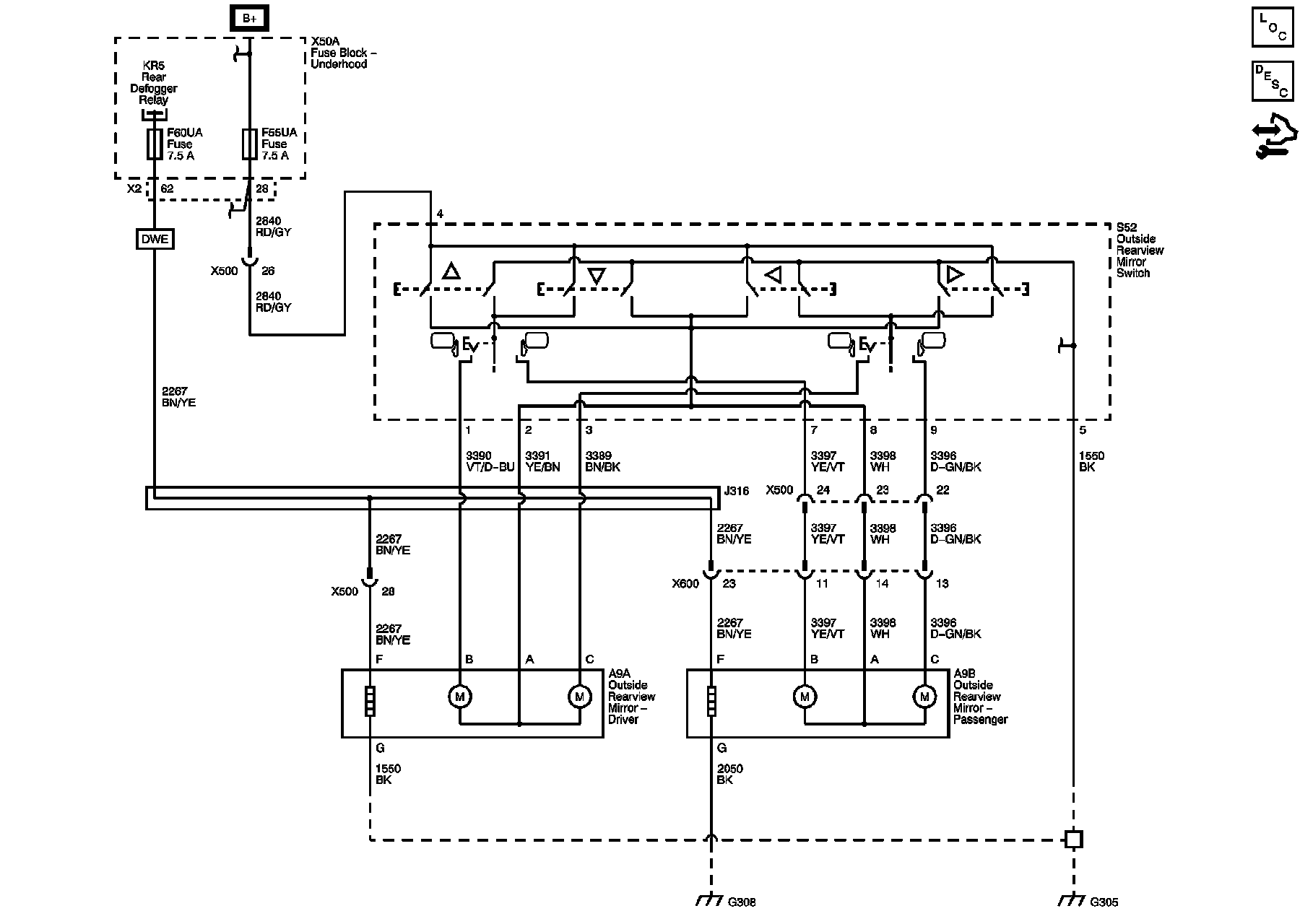

Outside Rearview Mirror Schematics




Outside Rearview Mirror Schematics

Outside Rearview Mirror
