HVAC - Automatic

HVAC Schematics

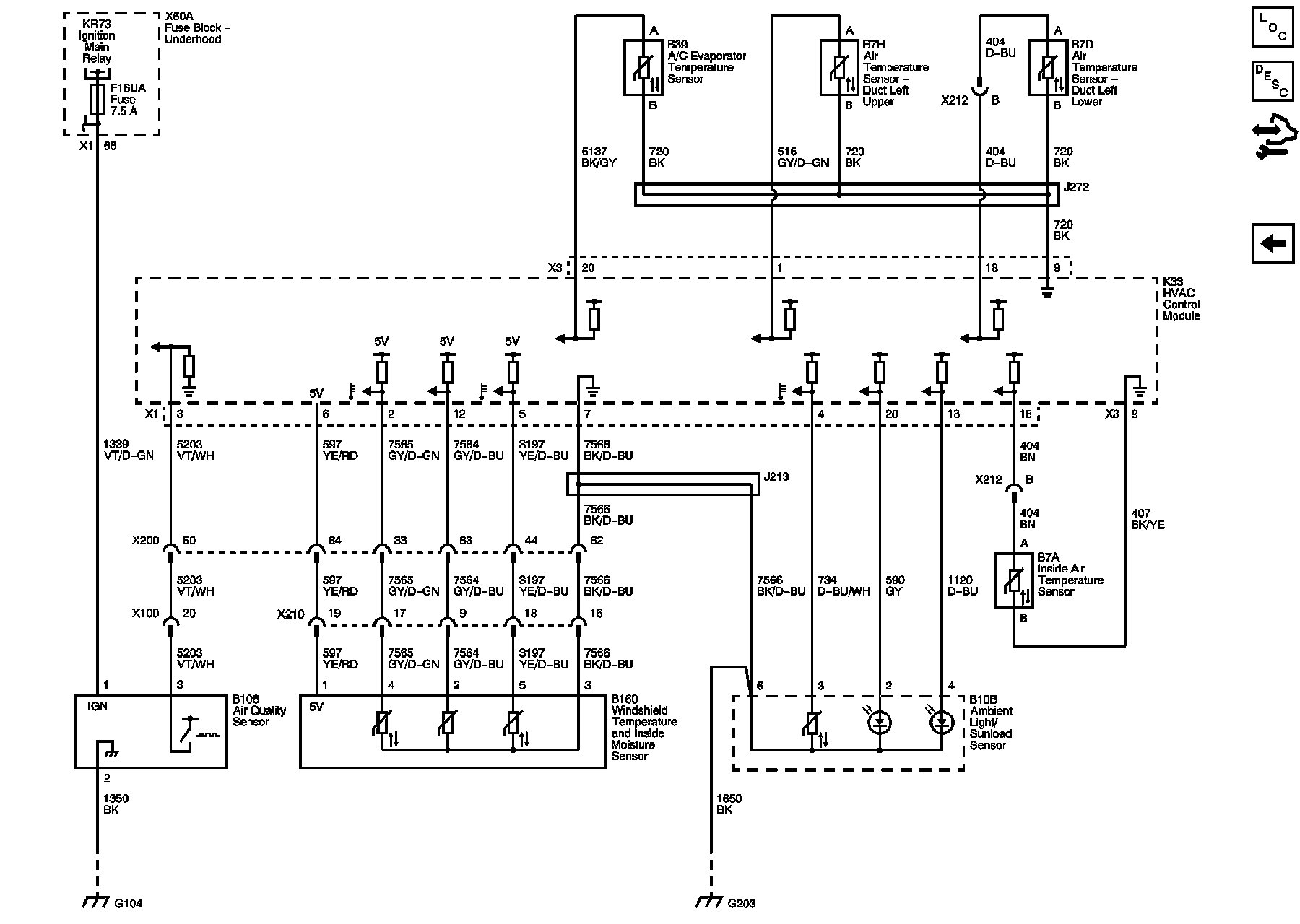

Module Power and Ground, Blower Control, and Serial Data

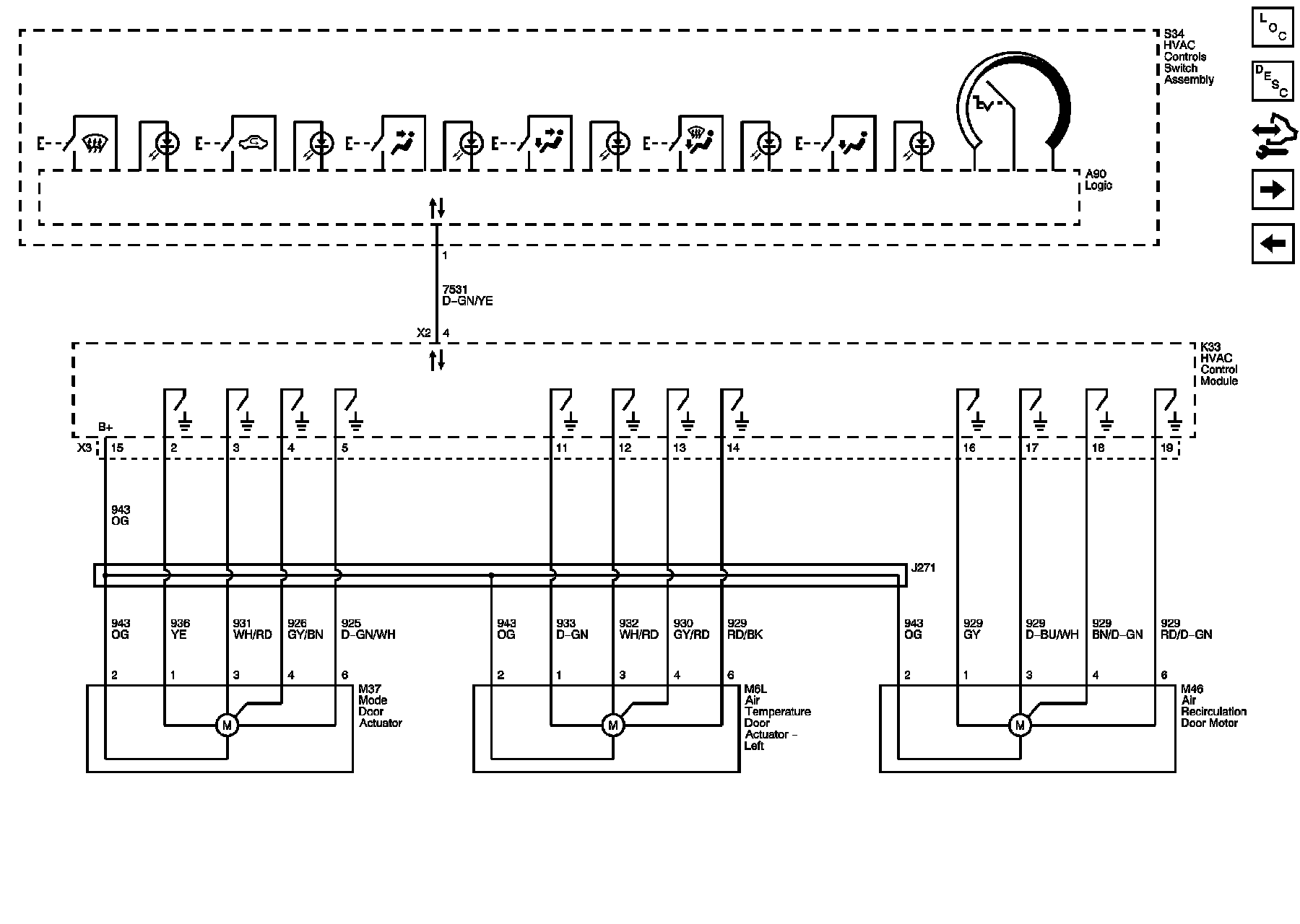

Air Delivery and Temperature Controls

Compressor Controls

Temperature Sensors
