X600 - X699

Harness Routing Views

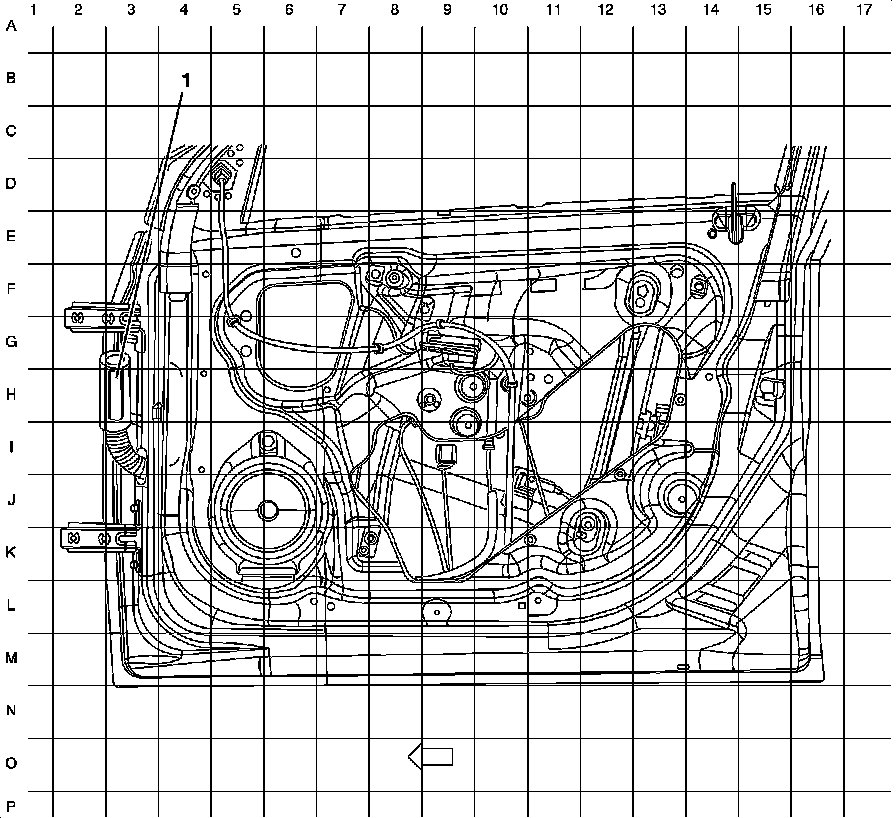

Front Passenger Door Harness Routing

1 - X600 Body Harness and Passenger Door Harness
