X110

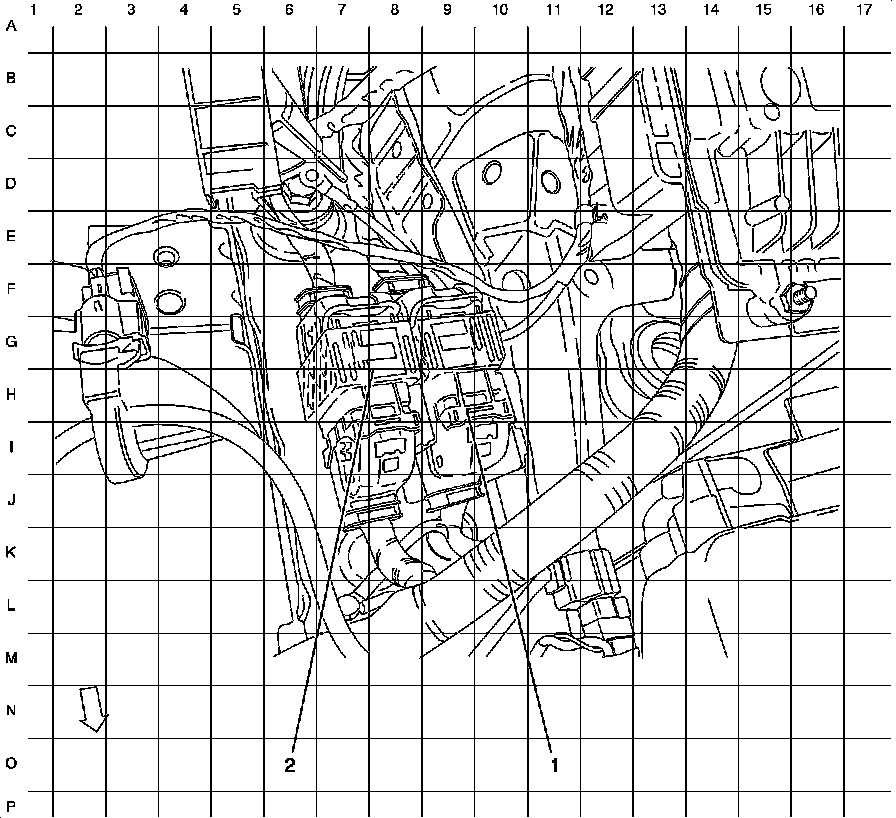

Harness Routing Views

Engine Harness Routing

1 - X100 Body Harness and Body Front Harness
2 - X110 Body Harness and Engine Harness
