X103

Harness Routing Views

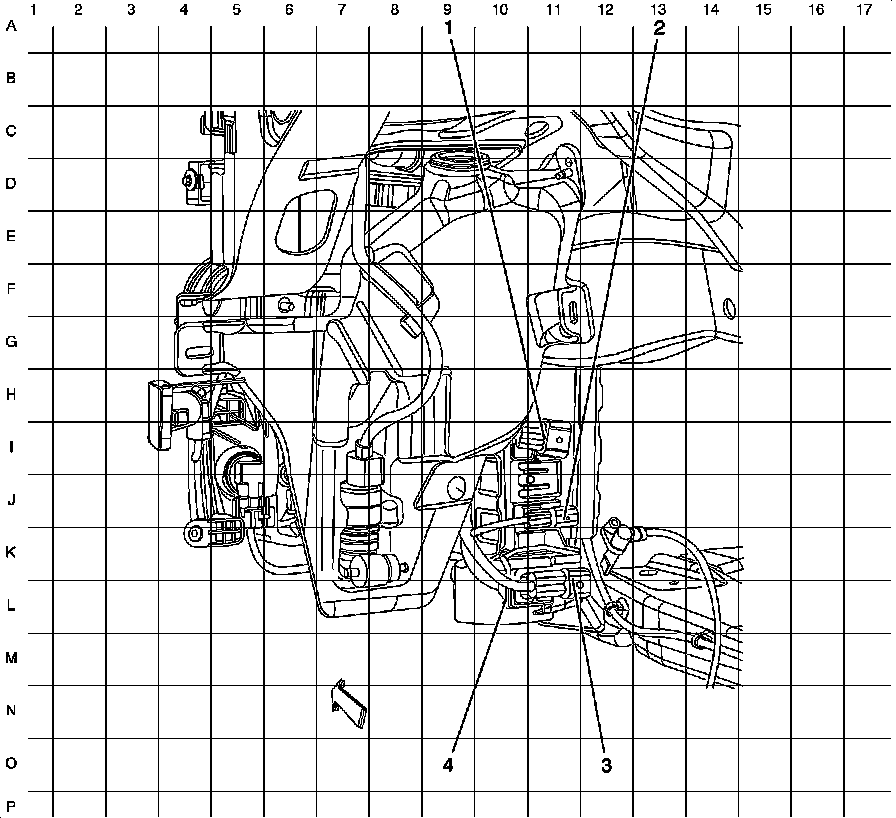

Forward Lamp Harness Routing 2 of 2




1 - X104 Body Front Harness and Engine Cooling Harness
2 - X103 Body Front Harness and Engine Cooling Harness
3 - X101 Body Front Harness and Engine Cooling Harness
4 - X102 Body Front Harness and Engine Cooling Harness
