Variable Valve Timing Solenoid




Component Connector End Views

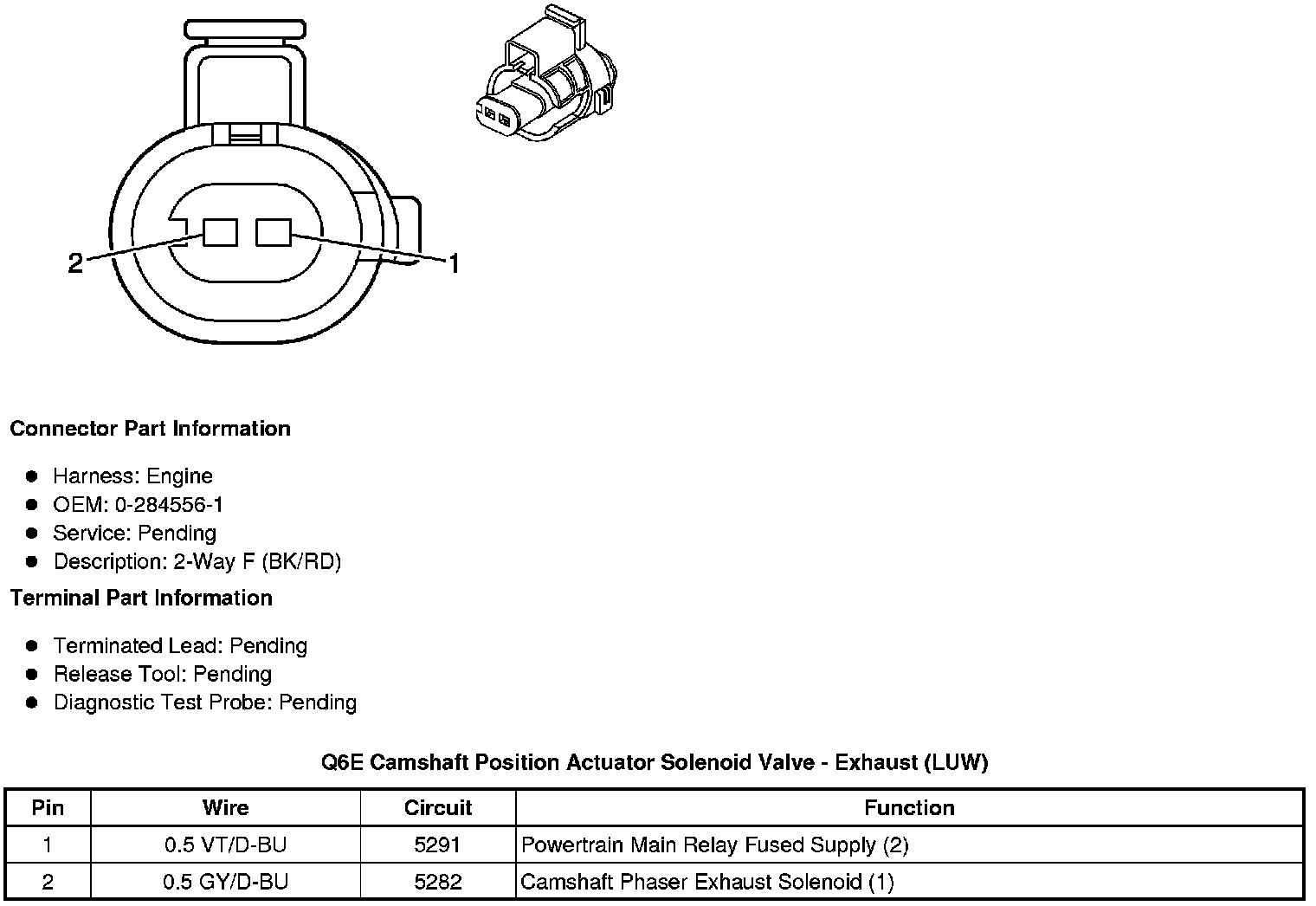

Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUW)

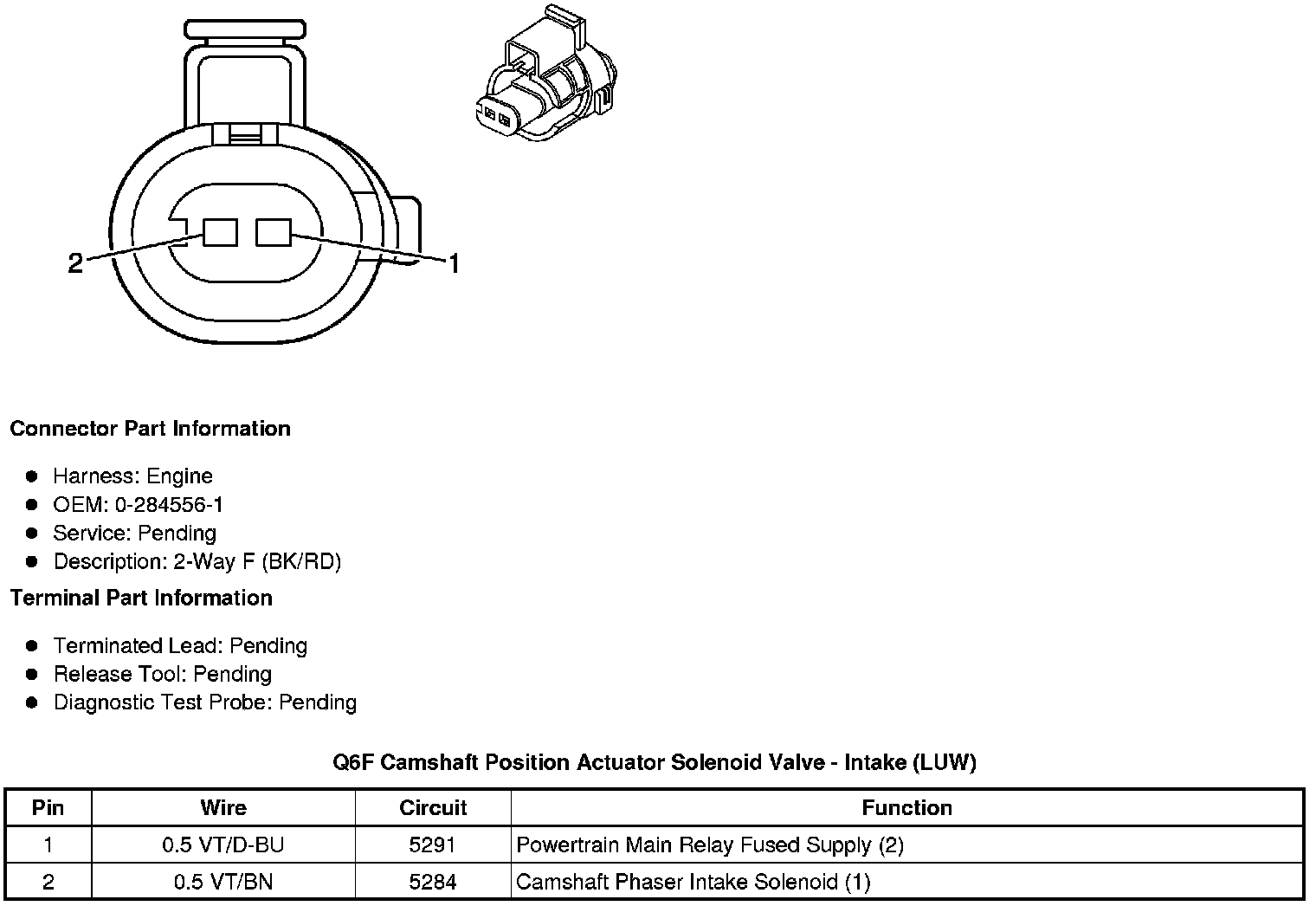

Q6F Camshaft Position Actuator Solenoid Valve - Intake (LUW)
