Seat Belt Tensioner




Component Connector End Views

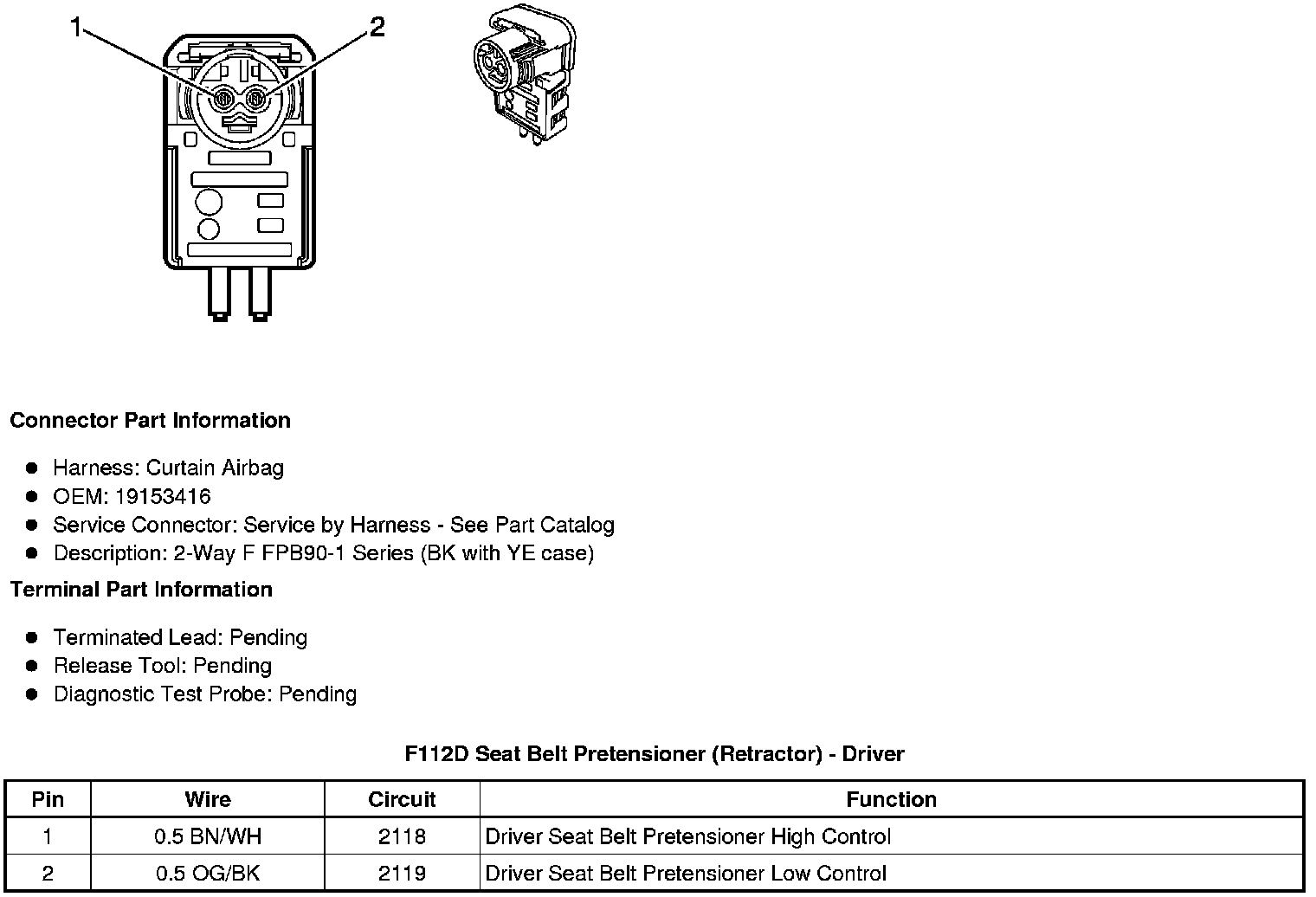

F112D Seat Belt Pretensioner (Retractor) - Driver

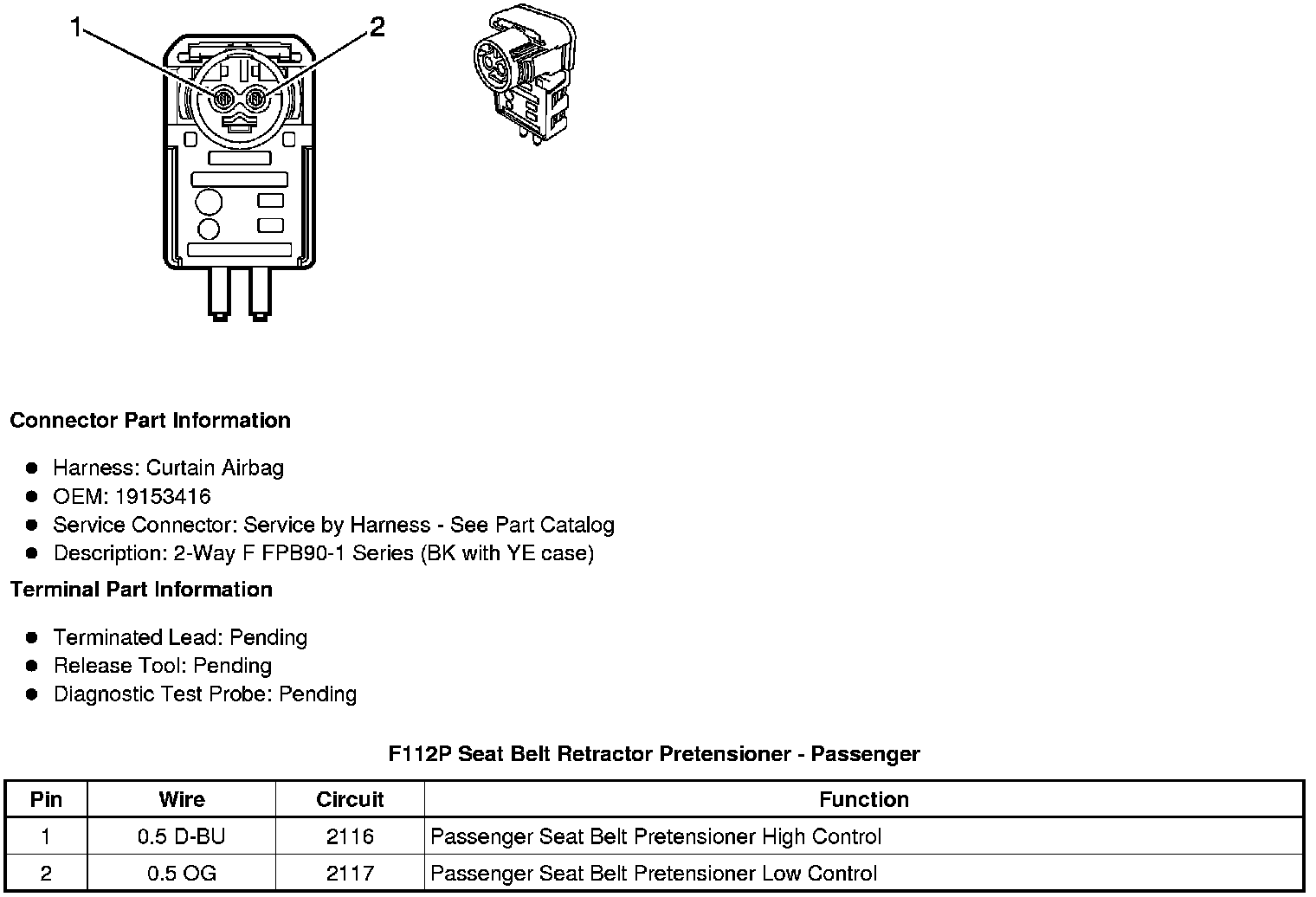

F112P Seat Belt Retractor Pretensioner - Passenger






F113D Seat Belt Anchor Pretensioner - Driver






F113P Seat Belt Anchor Pretensioner - Passenger
